DESCRIPTION

The video signal from the television camera assembly is transmitted to the radio and display receiver assembly.

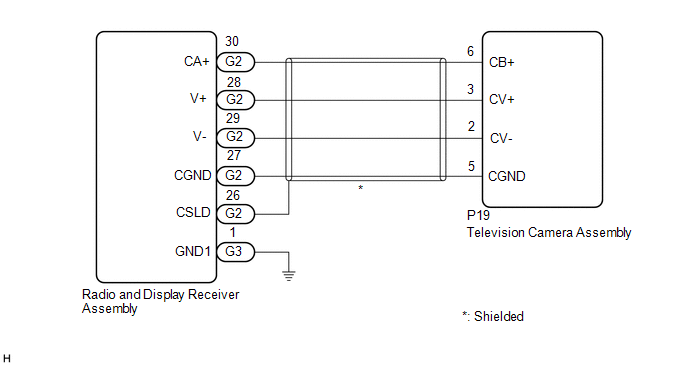

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEVISION CAMERA ASSEMBLY)

Click here

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

2.

INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY

Click here

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

OK

3.

INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY (V+, GND1)

Click here

NG

REPLACE TELEVISION CAMERA ASSEMBLY

OK

4.

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

(a) Replace the radio and display receiver assembly with a new or known good one.

Click here

(b) Check that the parking assist monitor system operates normally.

OK:

Parking assist monitor system operates normally.

OK

END
NG

REPLACE TELEVISION CAMERA ASSEMBLY
