Toyota Avalon Service & Repair Manual: Diagnosis System

DIAGNOSIS SYSTEM

PARKING ASSIST MONITOR SYSTEM DIAGNOSTIC MODE

(a) In diagnostic mode for the parking assist monitor system, signals received by the radio and display receiver assembly can be checked and the parking assist monitor system can be calibrated, adjusted and checked using the multi-display.

NOTICE:

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

Click here

HINT:

The displayed items may differ depending on vehicle specifications.

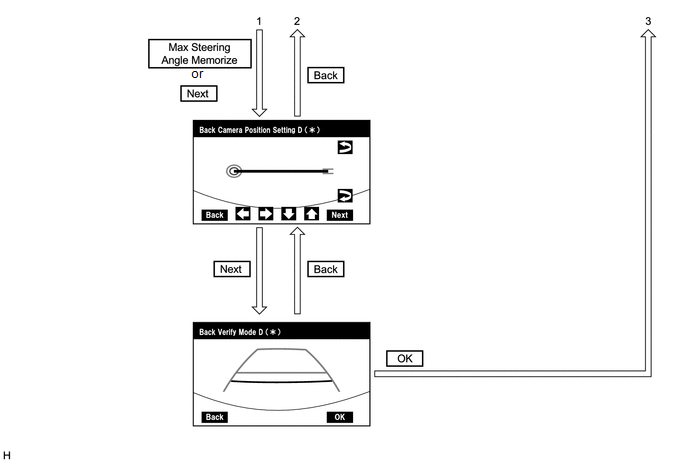

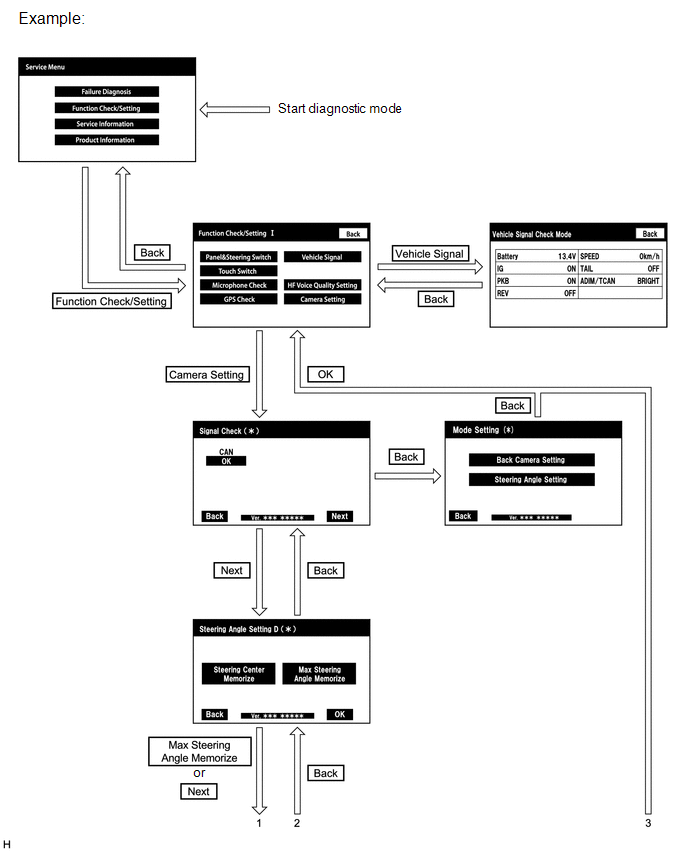

DIAGNOSIS SCREEN TRANSITION (DURING PARKING ASSIST MONITOR SYSTEM INITIALIZATION)

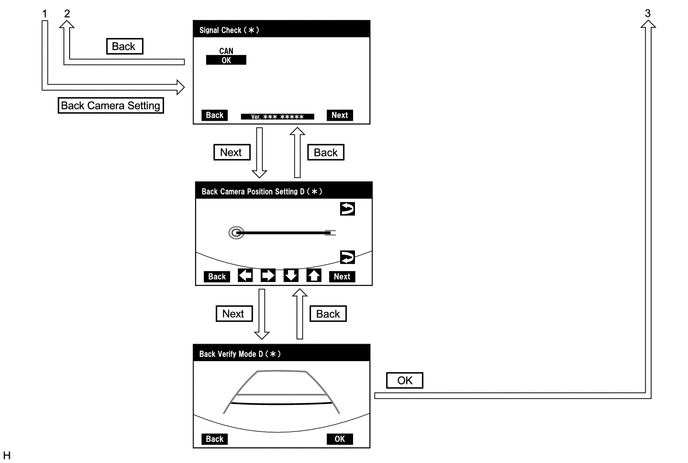

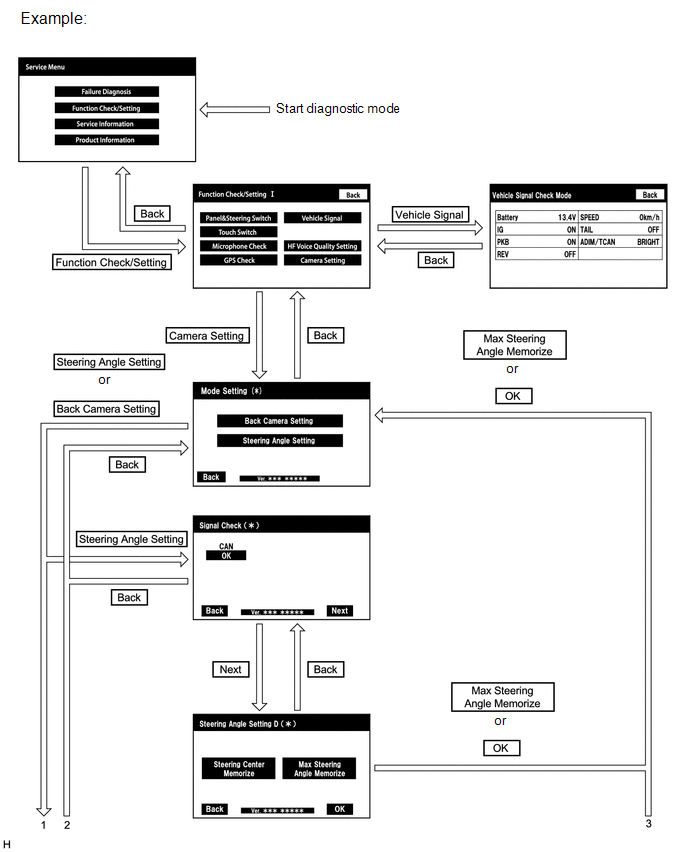

DIAGNOSIS SCREEN TRANSITION (AFTER PARKING ASSIST MONITOR SYSTEM INITIALIZATION)

VEHICLE SIGNAL CHECK

HINT:

Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

(a) Start diagnostic mode.

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

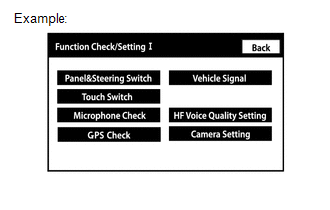

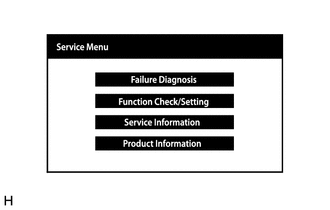

(b) Select "Function Check/Setting" on the "Service Menu" screen to display the "Function Check/Setting I" screen.

(c) Select "Vehicle Signal" on the "Function Check/Setting I" screen.

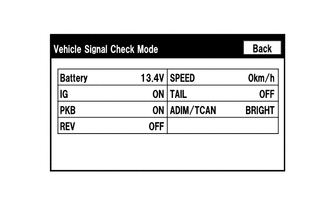

(d) Vehicle Signal Check Mode

(1) When the "Vehicle Signal Check Mode" screen is displayed, check the item displayed for "REV".

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

HINT:

  • Only conditions having inputs are displayed.
  • This screen displays vehicle signals input to the radio and display receiver assembly.

(e) Finish diagnostic mode.

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

HINT:

Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

SIGNAL CHECK (PARKING ASSIST MONITOR SYSTEM INPUT SIGNALS)

(a) Start diagnostic mode.

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

(1) Select "Function Check/Setting" on the "Service Menu" screen to display the "Function Check/Setting I" screen.

(2) Select "Camera Setting" on the "Function Check/Setting I" screen.

HINT:

After "Camera Setting" is selected, the screen transitions differ depending on whether initialization of the parking assist monitor system was performed after the television camera assembly was replaced.

Parking Assist Monitor System Initialization

Screen Transition

Not performed

Signal Check screen

Performed

Mode Setting screen

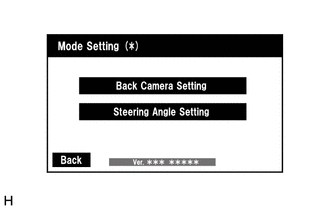

(3) When the screen changes to the "Mode Setting" screen, select "Back Camera Setting" to display the "Signal Check" screen.

HINT:

To select a grayed out item, select and hold the item for 2 seconds or more.

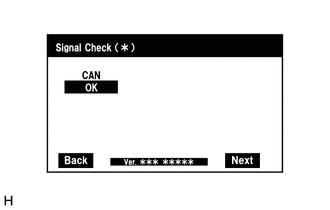

(b) Signal Check

(1) On the "Signal Check" screen, it is possible to inspect the state of signals and check the settings.

Item

Inspection Detail

Note

CAN

CAN communication signal input

When "CHK" (red) is displayed, selecting "Next" will not change the screen to the next screen.

HINT:

  • When "CHK" (red) is displayed, perform inspections based on the result of the following inspections.
  • If performing the adjustment after proceeding to the next screen, confirm that all items display "OK" (blue) before selecting "Next".

(c) CAN inspection

HINT:

If "CHK" (red) is displayed for "CAN", check for DTCs and perform troubleshooting based on the output DTCs.

Click here

(d) Finish diagnostic mode.

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

CAMERA SYNCHRONOUS ERROR HISTORY

HINT:

This function is used to check the date and time of occurrence when a camera synchronous error occurs.

(a) Check camera synchronous error history.

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Body Electrical / Navigation System / Utility / Camera Synchronous Error History.

Body Electrical > Navigation System > Utility

Tester Display

Camera Synchronous Error History

(5) When an item is stored for Camera Synchronous Error History, record it before repairing the radio and display receiver assembly and television camera assembly.

HINT:

Camera Synchronous Error History can store up to 5 history data items. If a new camera synchronous error occurs when 5 data items have already been stored, the oldest data is cleared and the new data is stored.

(b) Clear camera synchronous error history.

(1) When DTCs are cleared using any of the following operations, Camera Synchronous Error History will be cleared as well.

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

  • Cleared using the Techstream.
  • Cleared using the system check mode screen.
  • Cleared using the unit check mode screen.

VIDEO DEVICE CONNECTION CHECK

  • w/ Navigation System: Click here

    w/o Navigation System: Click here

CALIBRATION WHEN SERVICING VEHICLE

NOTICE:

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

Click here

    Data List / Active Test

    Diagnostic Trouble Code Chart
