REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during side television camera assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link
  • Side television camera assembly LH
  • Side television camera assembly RH

Side television camera view adjustment

Panoramic View Monitor System

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link
  • Side television camera assembly LH
  • Side television camera assembly RH

Side television camera view adjustment

Panoramic View Monitor System

PROCEDURE

1. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

Click here

2. REMOVE OUTER MIRROR

Click here

3. REMOVE OUTER MIRROR COVER

Click here

4. REMOVE VISOR HOUSING

Click here

5. REMOVE SIDE TELEVISION CAMERA ASSEMBLY

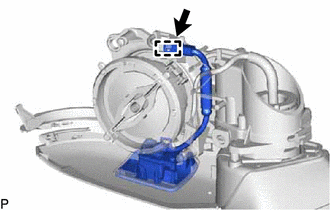

(a) Disengage the clamp.

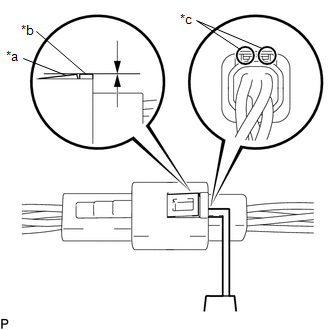

(b) Insert a 0.9 mm (0.0354 in.) spark plug gap gauge or similar tool into the connector as shown in the illustration.

NOTICE:

  • Insert the spark plug gap gauge to the point that the claw becomes the same height as the protrusion of the connector housing. If the spark plug gap gauge is inserted too far, or if the claw is lifted directly using a screwdriver, the claw may be damaged.
  • If the claw of the connector is damaged, replace the outer rear view mirror assembly.

*a

Claw

*b

Protrusion

*c

Insert Position

(c) Lift the claw and disconnect the connector.

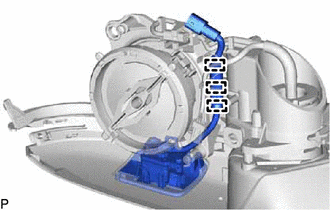

(d) Disengage the 3 guides.

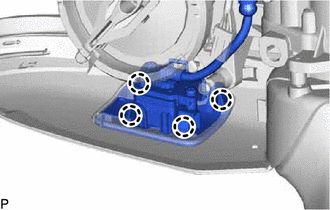

(e) Disengage the 4 claws.

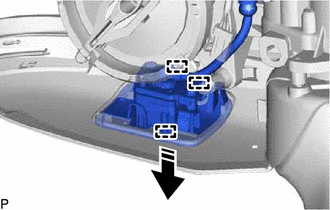

(f) Disengage the 3 guides as shown in the illustration.

Remove in this Direction

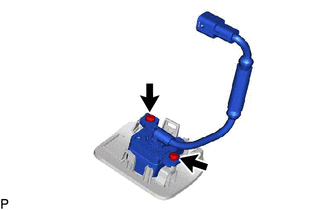

(g) Using a T10 "TORX" driver, remove the 2 screws to remove the side television camera assembly from the camera cover.
