Toyota Avalon Service & Repair Manual: Parts Location

PARTS LOCATION

ILLUSTRATION

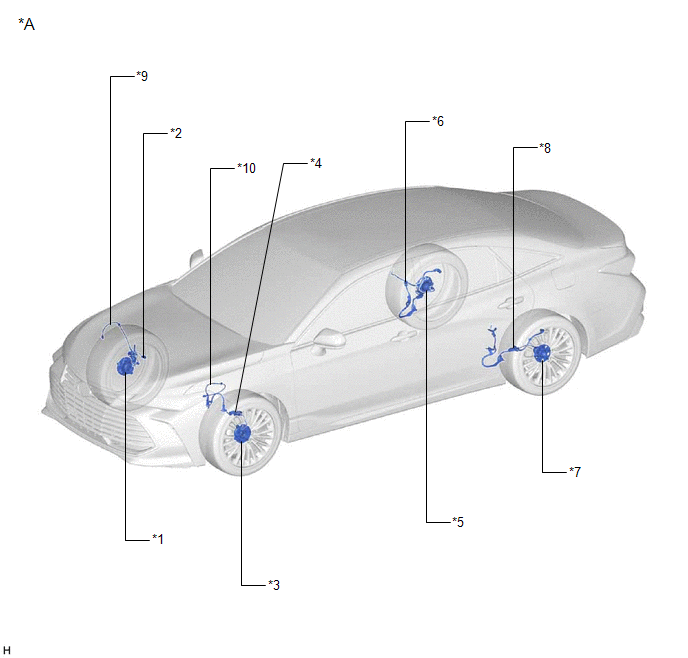

*A

w/o AVS

-

-

*1

FRONT AXLE HUB SUB-ASSEMBLY RH

- FRONT SPEED SENSOR ROTOR RH

*2

FRONT SPEED SENSOR RH

*3

FRONT AXLE HUB SUB-ASSEMBLY LH

- FRONT SPEED SENSOR ROTOR LH

*4

FRONT SPEED SENSOR LH

*5

REAR AXLE HUB AND BEARING ASSEMBLY RH

- REAR SPEED SENSOR RH

- REAR SPEED SENSOR ROTOR RH

*6

NO. 1 PARKING BRAKE WIRE ASSEMBLY

- SKID CONTROL SENSOR WIRE RH

*7

REAR AXLE HUB AND BEARING ASSEMBLY LH

- REAR SPEED SENSOR LH

- REAR SPEED SENSOR ROTOR LH

*8

NO. 2 PARKING BRAKE WIRE ASSEMBLY

- SKID CONTROL SENSOR WIRE LH

ILLUSTRATION

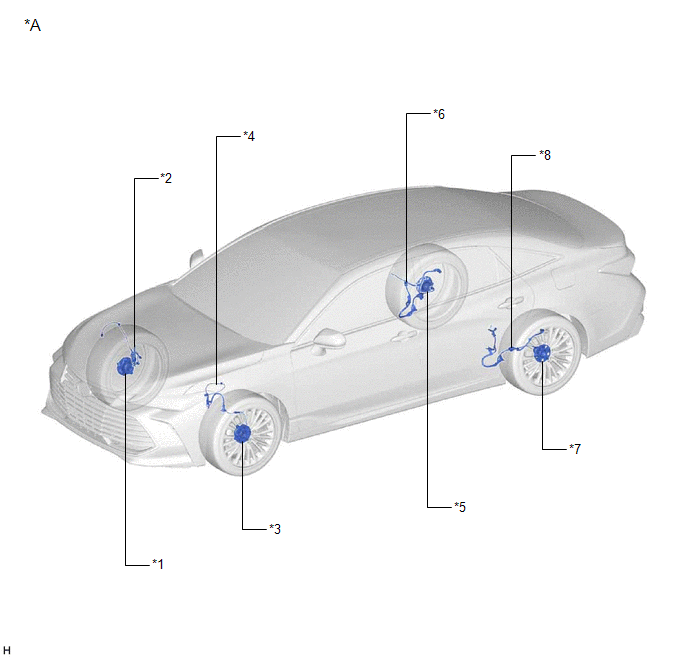

*A

w/ AVS

-

-

*1

FRONT AXLE HUB SUB-ASSEMBLY RH

- FRONT SPEED SENSOR ROTOR RH

*2

FRONT SPEED SENSOR RH

*3

FRONT AXLE HUB SUB-ASSEMBLY LH

- FRONT SPEED SENSOR ROTOR LH

*4

FRONT SPEED SENSOR LH

*5

REAR AXLE HUB AND BEARING ASSEMBLY RH

- REAR SPEED SENSOR RH

- REAR SPEED SENSOR ROTOR RH

*6

NO. 1 PARKING BRAKE WIRE ASSEMBLY

- SKID CONTROL SENSOR WIRE RH

*7

REAR AXLE HUB AND BEARING ASSEMBLY LH

- REAR SPEED SENSOR LH

- REAR SPEED SENSOR ROTOR LH

*8

NO. 2 PARKING BRAKE WIRE ASSEMBLY

- SKID CONTROL SENSOR WIRE LH

*9

FRONT SKID CONTROL SENSOR WIRE RH

*10

FRONT SKID CONTROL SENSOR WIRE LH

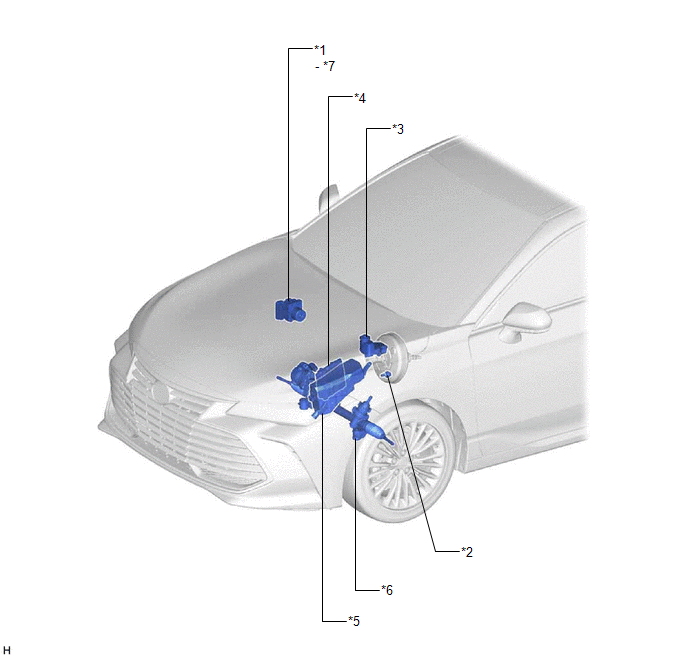

ILLUSTRATION

*1

BRAKE ACTUATOR ASSEMBLY

*2

VACUUM WARNING SWITCH ASSEMBLY

*3

BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

- BRAKE FLUID LEVEL WARNING SWITCH

*4

ECM

*5

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- ABS NO. 1 FUSE

- ABS NO. 2 FUSE

*6

RACK AND PINION POWER STEERING GEAR ASSEMBLY

- POWER STEERING ECU

*7

SKID CONTROL ECU

-

-

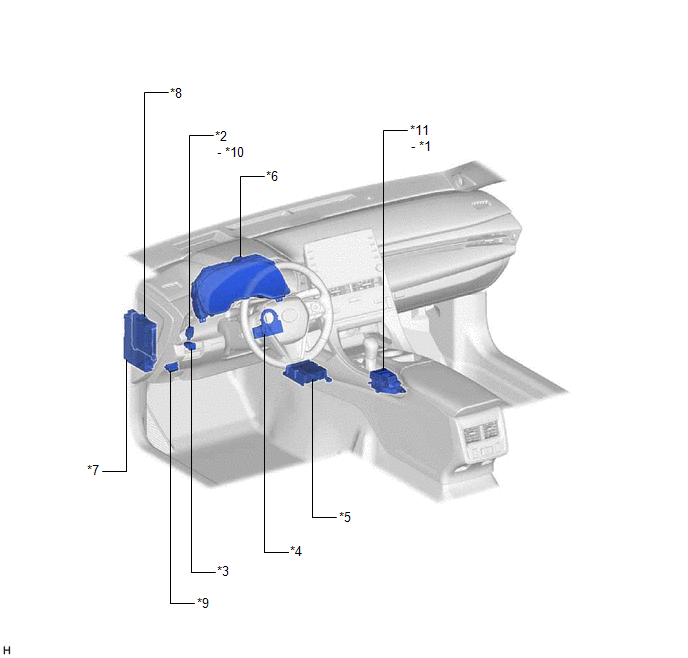

ILLUSTRATION

*1

BRAKE HOLD SWITCH

*2

STOP LIGHT SWITCH ASSEMBLY

*3

VSC OFF SWITCH

*4

STEERING ANGLE SENSOR

*5

AIRBAG SENSOR ASSEMBLY

- YAW RATE AND ACCELERATION SENSOR

*6

COMBINATION METER ASSEMBLY

- ABS WARNING LIGHT

- BRAKE SYSTEM WARNING LIGHT (RED INDICATOR)

- MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF)

- VSC OFF INDICATOR LIGHT

- SLIP INDICATOR LIGHT

- BRAKE HOLD STANDBY INDICATOR LIGHT

- BRAKE HOLD OPERATED INDICATOR LIGHT

*7

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 2 FUSE

- ECU-DCC NO. 1 FUSE

- A/BAG-IG2 FUSE

- STOP FUSE

*8

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*9

DLC3

*10

STOP LIGHT CONTROL RELAY

*11

ELECTRIC PARKING BRAKE SWITCH ASSEMBLY

-

-
