COMPONENTS

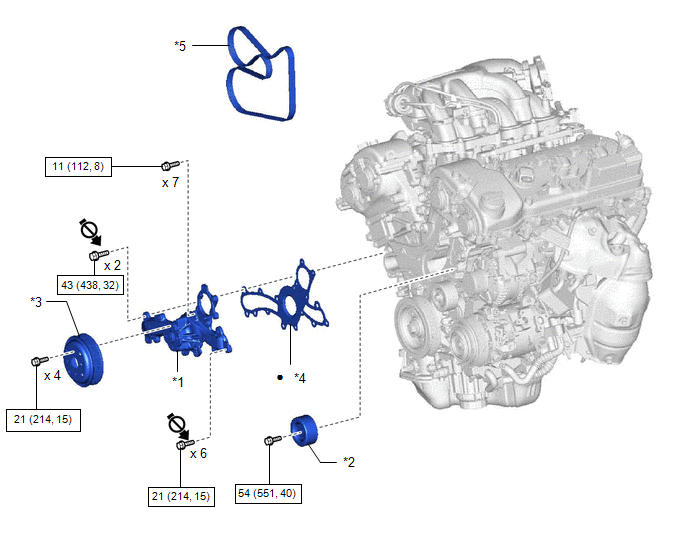

ILLUSTRATION

*1

ENGINE WATER PUMP ASSEMBLY

*2

NO. 2 IDLER PULLEY SUB-ASSEMBLY

*3

WATER PUMP PULLEY

*4

WATER PUMP GASKET

*5

V-RIBBED BELT

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Do not apply lubricants to the threaded parts

-

-
    Water Pump

    Installation
