REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL RH

Click here

2. REMOVE FRONT FENDER APRON SEAL RH

Click here

3. REMOVE V-BANK COVER SUB-ASSEMBLY

Click here

4. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

Click here

5. SET NO. 1 CYLINDER TO TDC/COMPRESSION

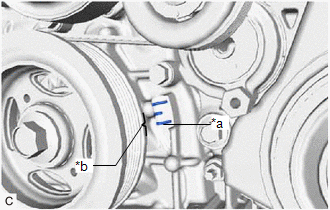

(a) Turn the crankshaft pulley clockwise until its timing mark (cutout) is aligned with the timing mark on the timing chain cover assembly as shown in the illustration.

*a

Timing Mark

*b

Timing Mark (Cutout)

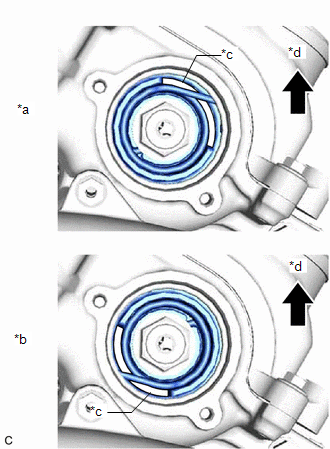

(b) Check that the cutout of the camshaft timing gear assembly is at the top.

HINT:

If the cutout of the camshaft timing gear assembly is not at the top, turn the crankshaft 360° clockwise and align the timing mark (cutout) of the crankshaft pulley with the timing mark on the timing chain cover assembly again.

*a

Correct

*b

Incorrect

*c

Cutout

*d

Up

6. REMOVE CAMSHAFT TIMING GEAR BOLT

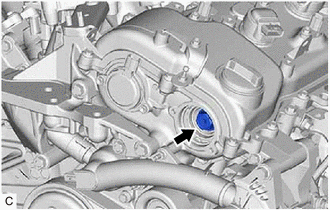

(a) While holding the crankshaft pulley, remove the camshaft timing gear bolt.

NOTICE:

  • If the camshaft timing gear bolt has been struck or dropped, replace it.
  • Do not turn the crankshaft pulley after removing the camshaft timing gear bolt.
