Toyota Avalon Service & Repair Manual: System Diagram

SYSTEM DIAGRAM

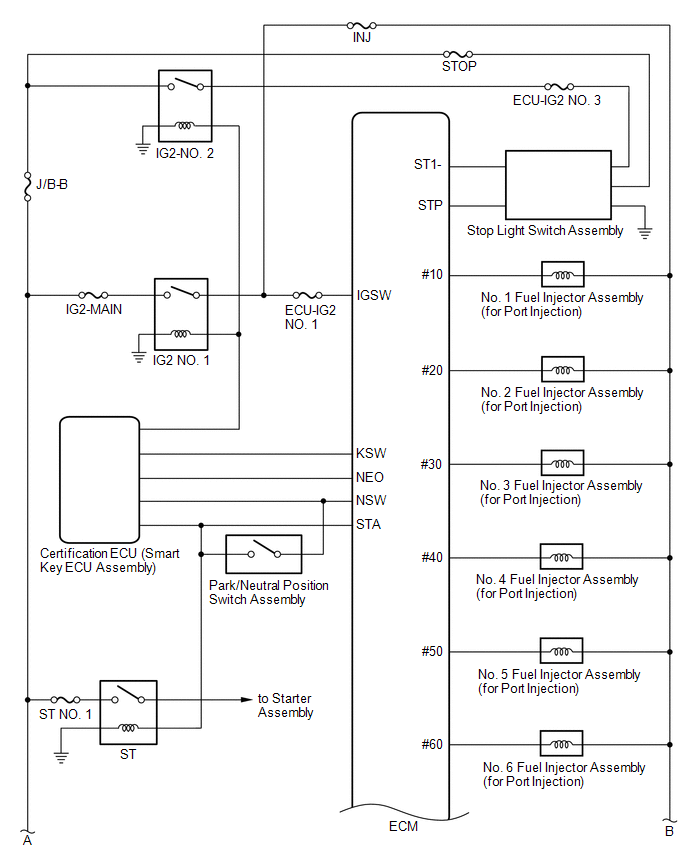

    Starter Signal Circuit

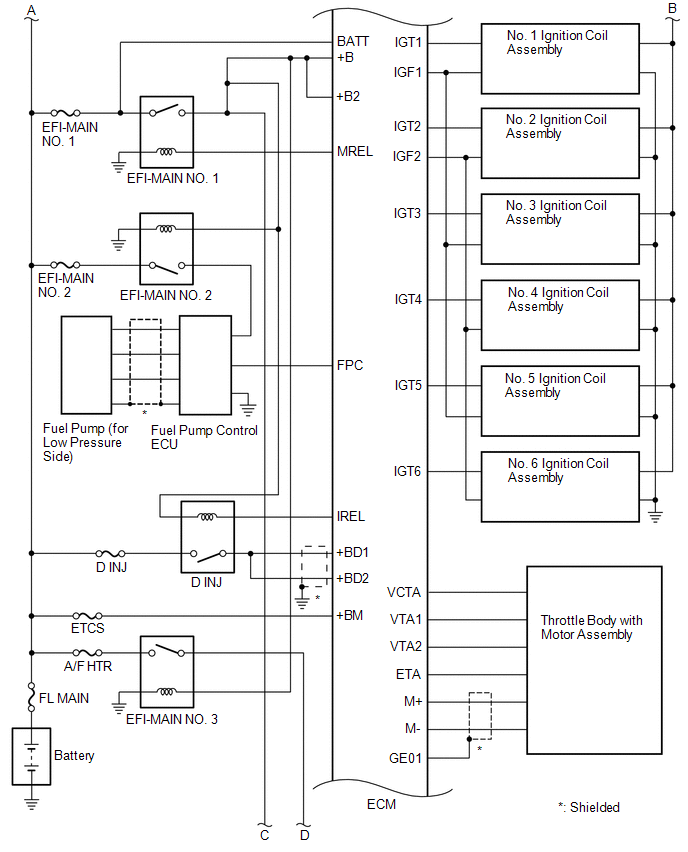

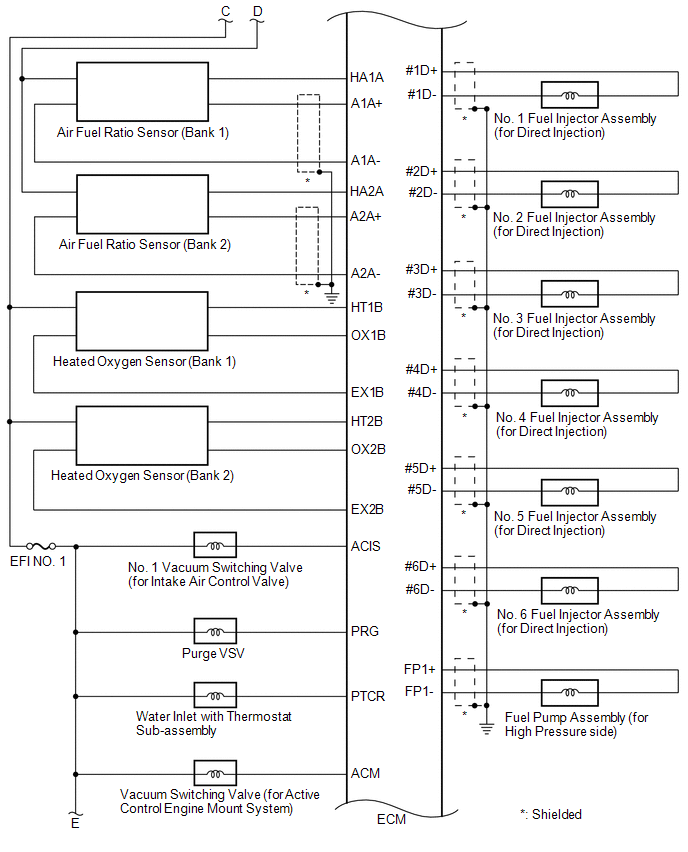

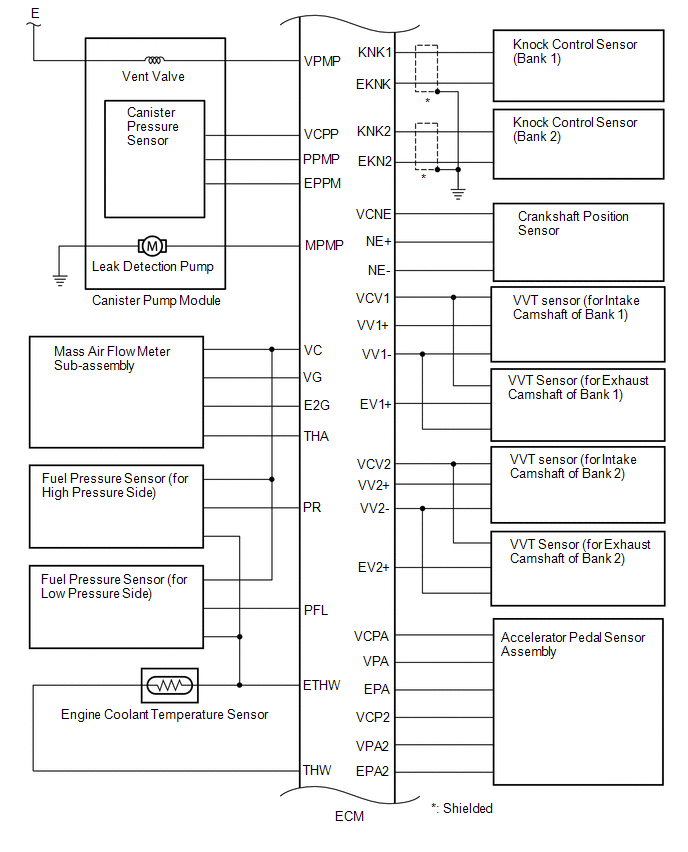

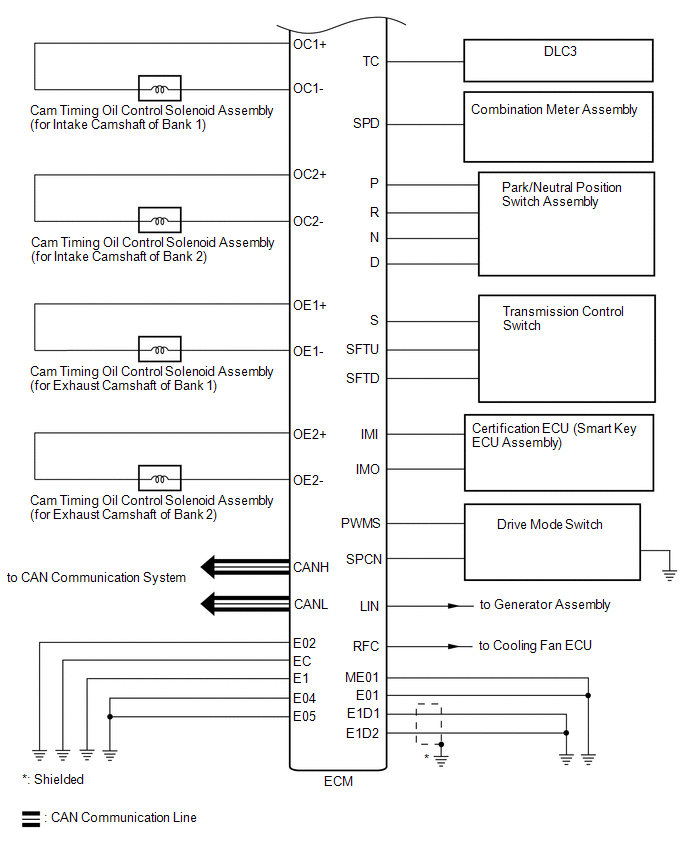

    Terminals Of Ecm
