COMPONENTS

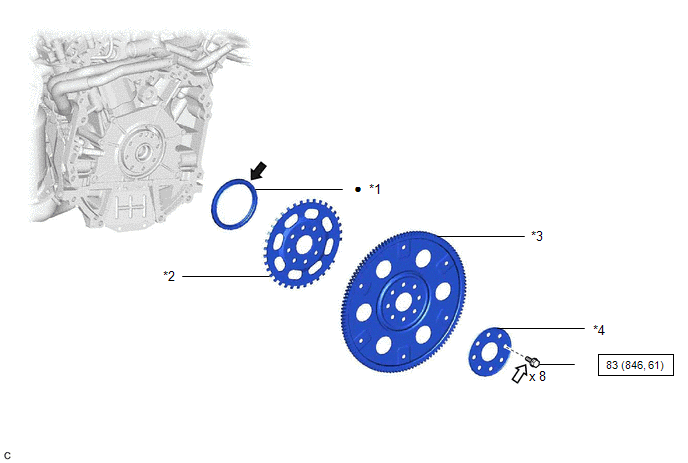

ILLUSTRATION

*1

REAR ENGINE OIL SEAL

*2

NO. 1 CRANKSHAFT POSITION SENSOR PLATE

*3

DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

*4

REAR DRIVE PLATE SPACER

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

Adhesive 1324

★

Precoated part

-

-
    Rear Crankshaft Oil Seal

    Installation
