COMPONENTS

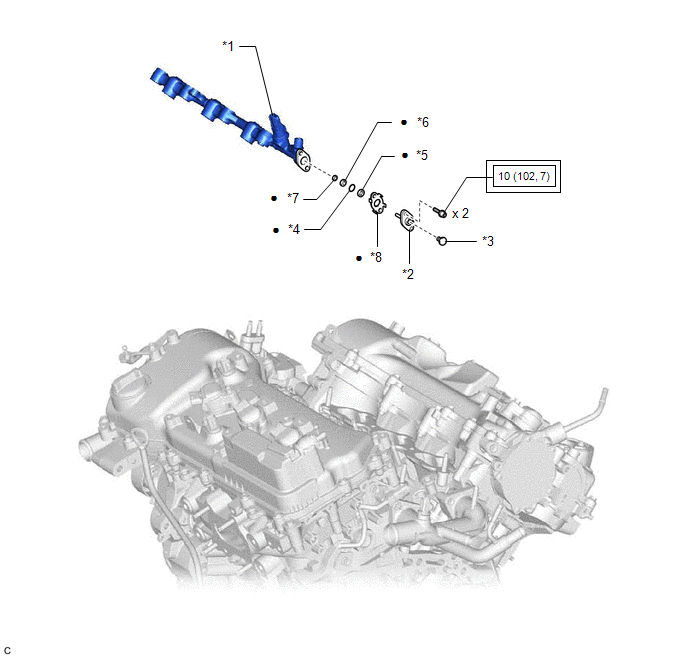

ILLUSTRATION

*1

FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH)

*2

FUEL PIPE PLUG SUB-ASSEMBLY

*3

DUST CAP SUB-ASSEMBLY

*4

O-RING

*5

NO. 1 FUEL INJECTOR BACK-UP RING

*6

NO. 2 FUEL INJECTOR BACK-UP RING

*7

NO. 3 FUEL INJECTOR BACK-UP RING

*8

GASKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
    Fuel Pressure Sensor(for High Pressure)

    Inspection
