INSPECTION

PROCEDURE

1. INSPECT ENGINE OIL PRESSURE SWITCH ASSEMBLY

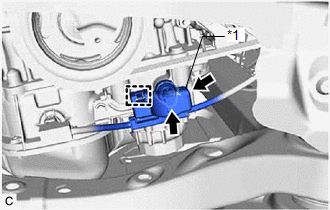

(a) Disengage the clamp to disconnect the wire harness protector.

*1

Wire Harness Protector

(b) Disconnect the engine oil pressure switch assembly connector.

(c) Start the engine.

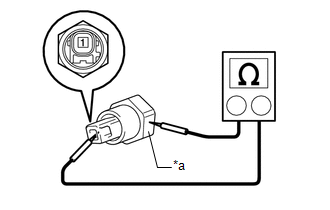

(d) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - Engine oil pressure switch assembly body

Idling

10 kΩ or higher

Engine stopped

Below 1 Ω

If the result is not as specified, replace the engine oil pressure switch assembly.

*a

Engine Oil Pressure Switch Assembly Body

(e) Connect the engine oil pressure switch assembly connector.

(f) Engage the clamp to connect the wire harness protector.
