COMPONENTS

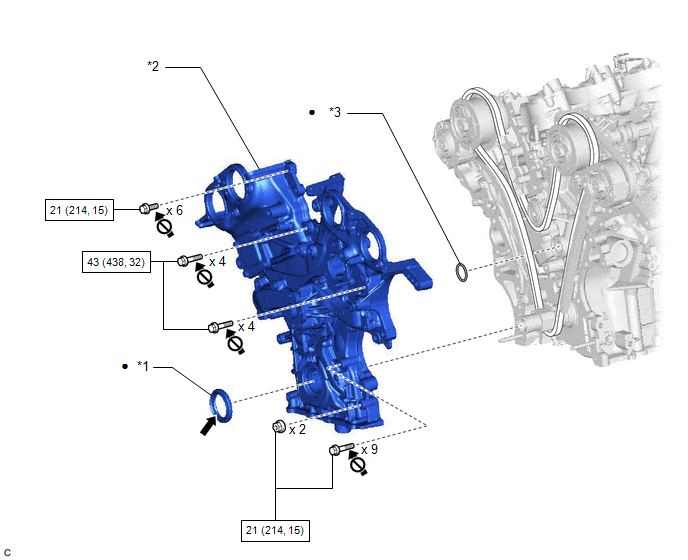

ILLUSTRATION

*1

TIMING CHAIN CASE OIL SEAL

*2

TIMING CHAIN COVER ASSEMBLY

*3

OIL PUMP GASKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP Grease

Do not apply lubricants to the threaded parts

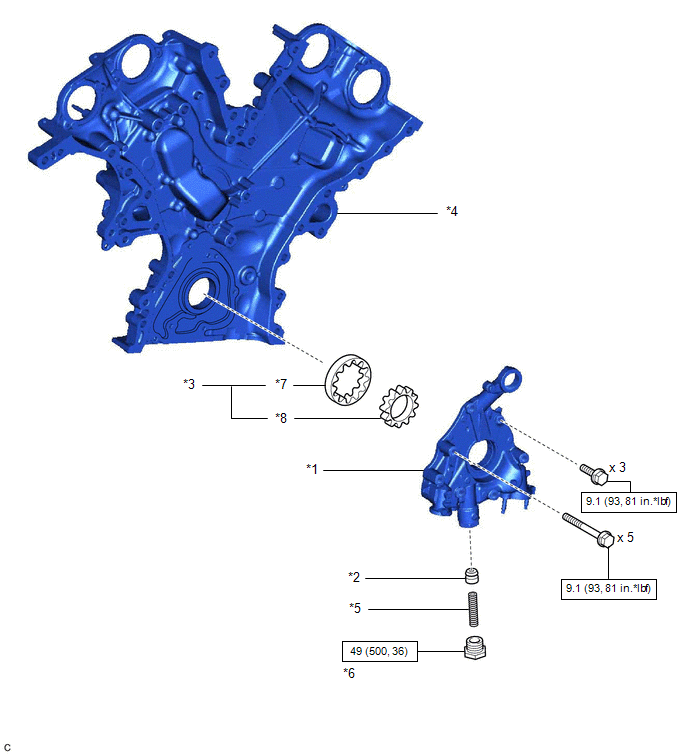

ILLUSTRATION

*1

OIL PUMP COVER

*2

OIL PUMP RELIEF VALVE

*3

OIL PUMP ROTOR SET

*4

TIMING CHAIN COVER ASSEMBLY

*5

OIL PUMP RELIEF VALVE SPRING

*6

OIL PUMP RELIEF VALVE PLUG

*7

DRIVEN ROTOR

*8

DRIVE ROTOR

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
