COMPONENTS

ILLUSTRATION

LUGGAGE TRIM SERVICE HOLE COVER

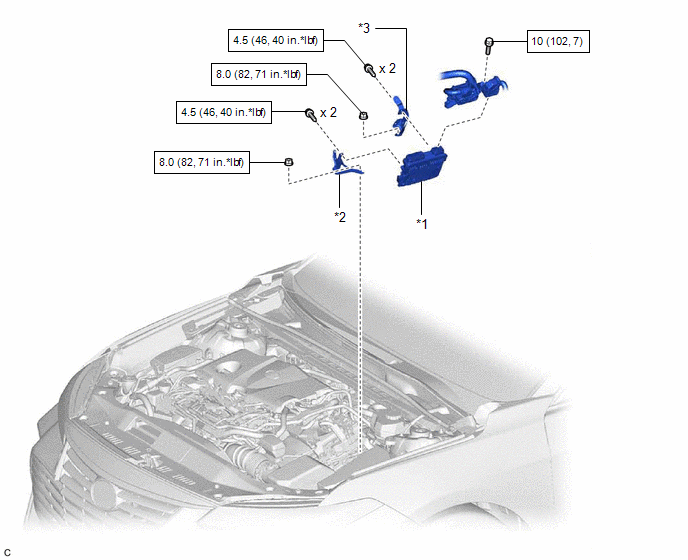

ILLUSTRATION

*1	ECM	*2	NO. 1 ECM BRACKET
*3	NO. 2 ECM BRACKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
