Toyota Avalon Service & Repair Manual: System Diagram

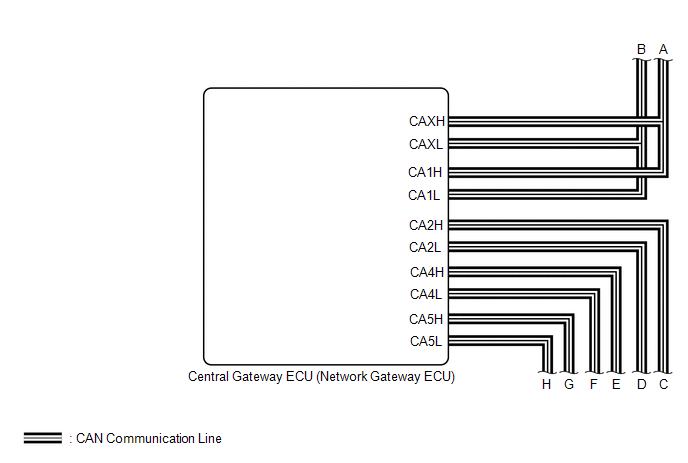

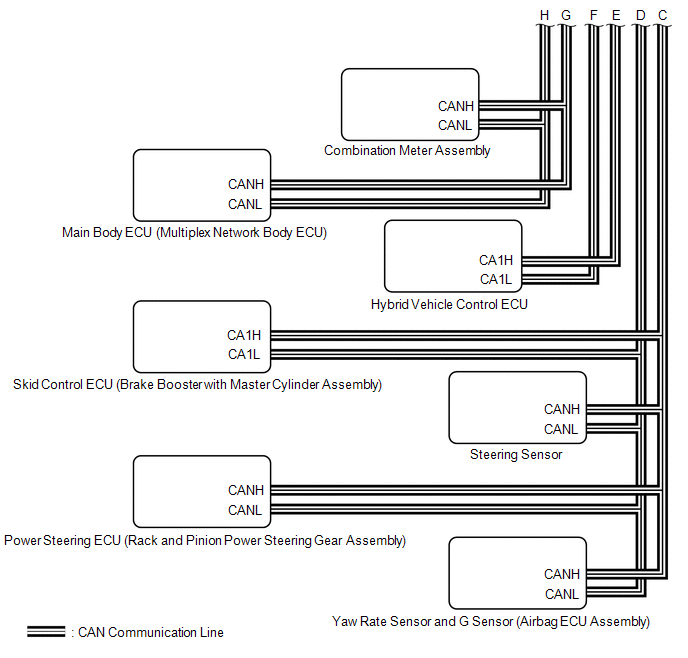

SYSTEM DIAGRAM

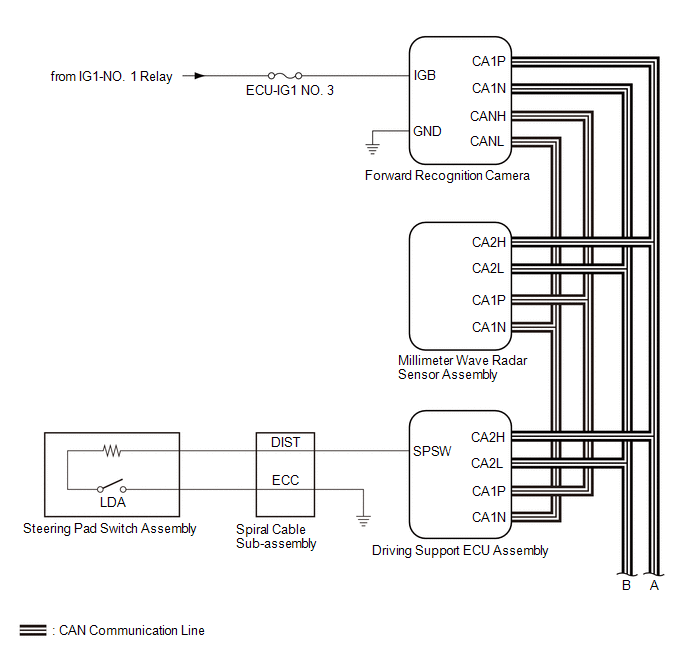

    Steering Pad Switch Circuit

    Terminals Of Ecu

    See More:

    Toyota Avalon Service & Repair Manual > Motor Generator Control System: Drive Motor "A" Position Sensor Circuit "A" Circuit Open (P0C5013,P0C501F,P0C5A13,P0C5A1F)
    DTC SUMMARY MALFUNCTION DESCRIPTION These DTCs indicate that the resolver output signal is abnormal. The cause of this malfunction may be one of the following: Area Main Malfunction Description Inverter low-voltage circuit The connectors are not connected properly Hybrid Vehicle Transaxle Assembly O ...
