Components

COMPONENTS

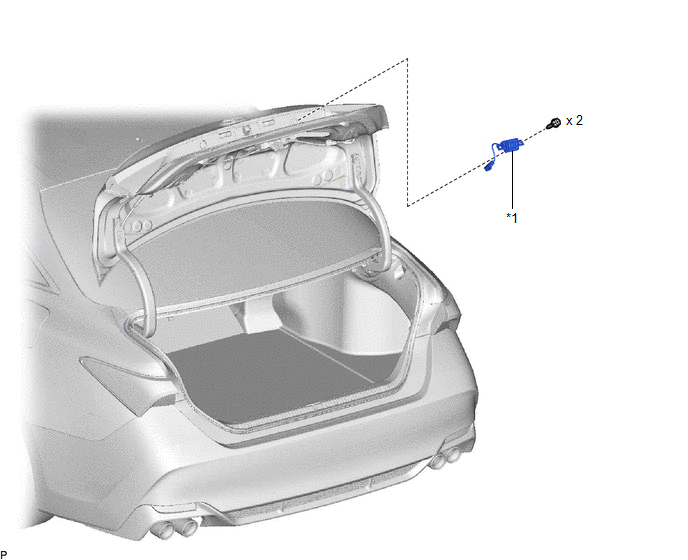

ILLUSTRATION

*1

LUGGAGE ELECTRICAL KEY SWITCH

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT LUGGAGE ELECTRICAL KEY SWITCH

(a) Check the switch.

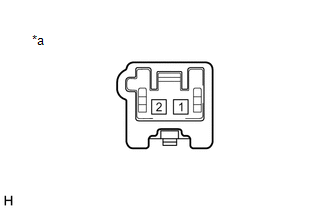

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Pressed (On)

Below 1 Ω

1 - 2

Not pressed (Off)

10 kΩ or higher

If the result is not as specified, replace the luggage electrical key switch.

*a

Component without harness connected

(Luggage Electrical Key Switch)

Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

(a) Engage the 2 claws to install the luggage electrical key switch.

(b) Install the 2 screws.

(c) Engage the clamp.

(d) Connect the connector.

2. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click here

2. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

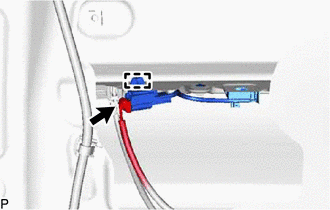

(a) Disconnect the connector.

(b) Disengage the clamp.

(c) Remove the 2 screws.

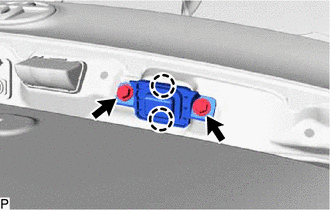

(d) Disengage the 2 claws to remove the luggage electrical key switch.
