REMOVAL PROCEDURE 1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column) Click here 2. REMOVE LOWER STEERING COLUMN COVER Click here 3. REMOVE UPPER STEERING COLUMN COVER Click here 4. REMOVE TURN SIGNAL SWITCH

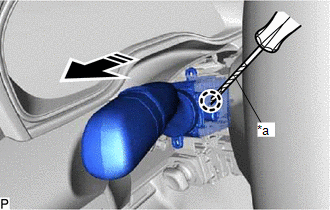

(b) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.
|
Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Sliding Roof System(for Hv Model): Diagnosis System
DIAGNOSIS SYSTEM DESCRIPTION (a) Sliding roof system data and Diagnostic Trouble Codes (DTCs) can be read through the vehicle Data Link Connector 3 (DLC3). When the system seems to be malfunctioning, use the Techstream to check for malfunctions and perform repairs. CHECK DLC3 (a) Check the DLC3. Cli ...
