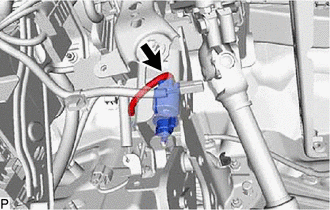

REMOVAL PROCEDURE 1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Click here 2. REMOVE STOP LIGHT SWITCH ASSEMBLY

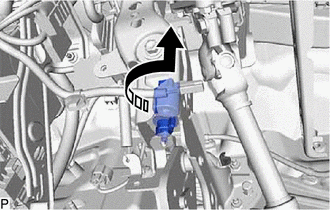

(b) Turn the stop light switch assembly counterclockwise as shown in the illustration and remove it.
|
