Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

*A

for Driver Side

*B

for Front Passenger Side

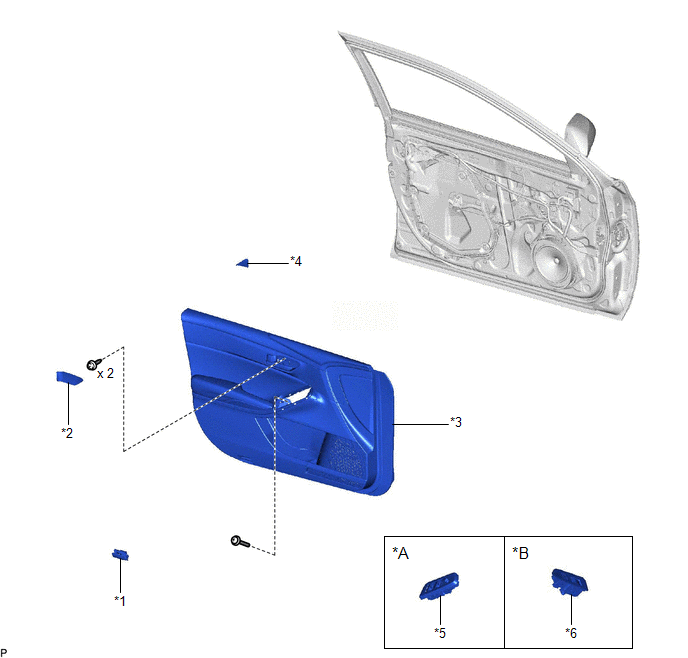

*1

COURTESY LIGHT ASSEMBLY

*2

FRONT DOOR ARMREST COVER SUB-ASSEMBLY

*3

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*4

FRONT DOOR TRIM POCKET COVER

*5

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*6

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

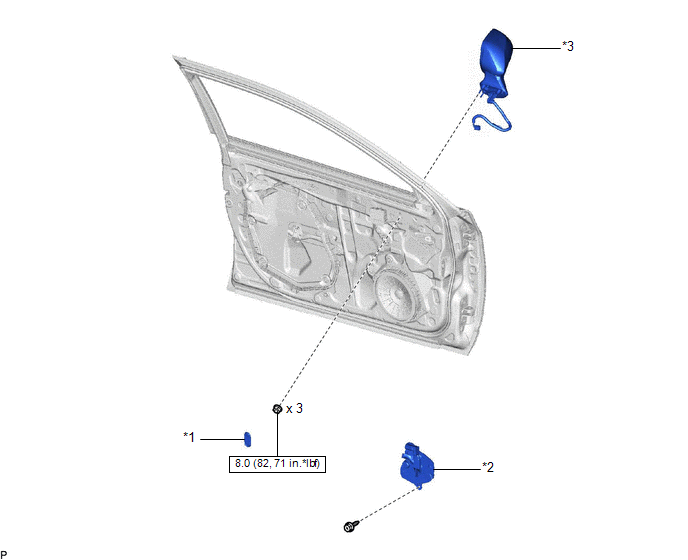

*1

HOLE PLUG

*2

OUTER MIRROR INSTALL HOLE COVER

*3

OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

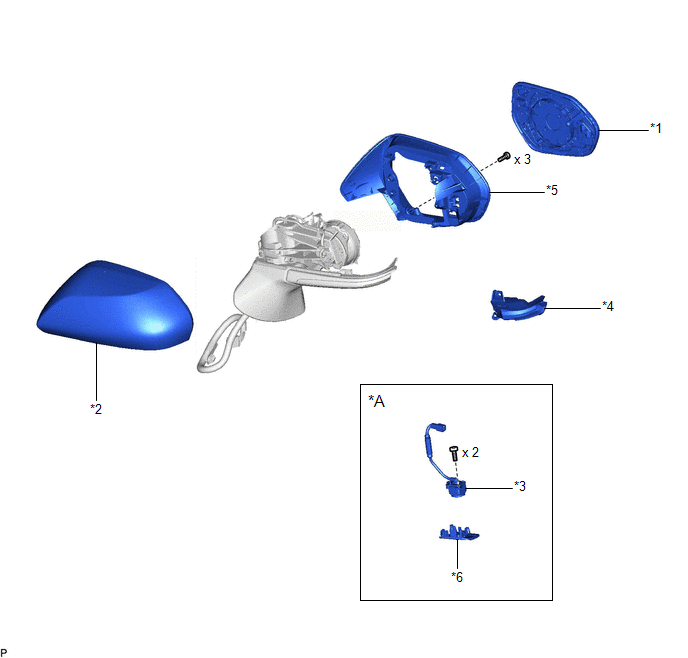

*A

w/ Panoramic View Monitor System

-

-

*1

OUTER MIRROR

*2

OUTER MIRROR COVER

*3

SIDE TELEVISION CAMERA ASSEMBLY

*4

SIDE TURN SIGNAL LIGHT ASSEMBLY

*5

VISOR HOUSING

*6

CAMERA COVER
