Toyota Avalon Service & Repair Manual: Parts Location

PARTS LOCATION

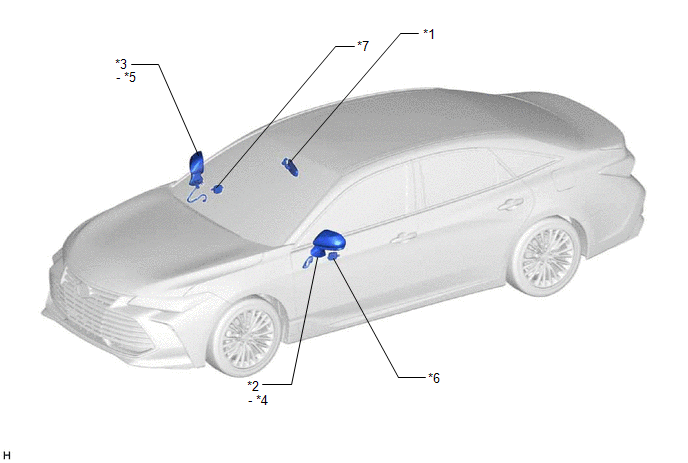

ILLUSTRATION

*1	INNER REAR VIEW MIRROR ASSEMBLY	*2	OUTER REAR VIEW MIRROR ASSEMBLY LH
*3	OUTER REAR VIEW MIRROR ASSEMBLY RH	*4	OUTER MIRROR LH
*5	OUTER MIRROR RH	*6	OUTER MIRROR CONTROL ECU ASSEMBLY LH
*7	OUTER MIRROR CONTROL ECU ASSEMBLY RH	-	-

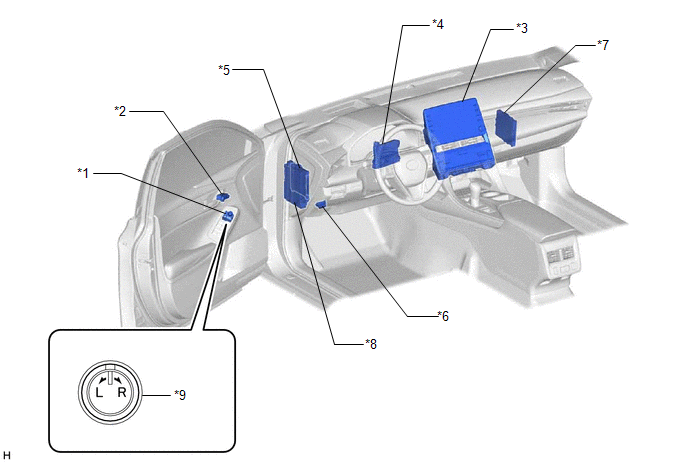

ILLUSTRATION

*1	OUTER MIRROR SWITCH ASSEMBLY	*2	SEAT MEMORY SWITCH
*3	REAR WINDOW DEFOGGER SWITCH (RADIO AND DISPLAY RECEIVER ASSEMBLY)	*4	AIR CONDITIONING AMPLIFIER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	DLC3
*7	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*8	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR F/R FUSE - DOOR F/L FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE
*9	MIRROR SELECT AND SURFACE ADJUST SWITCH	-	-
