Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Vehicle Approaching Speaker

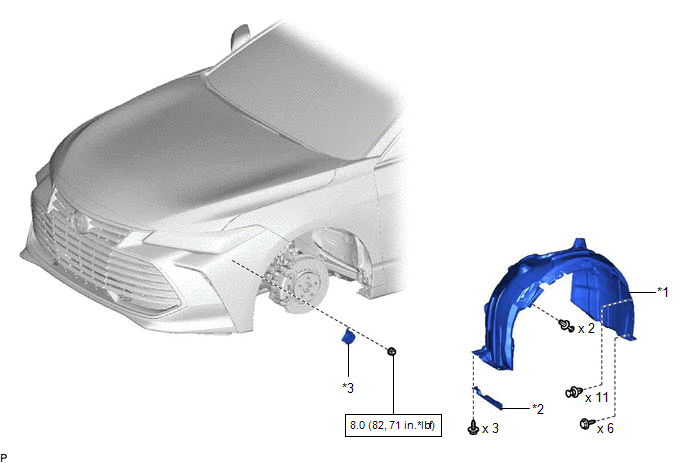

Components

COMPONENTS

ILLUSTRATION

*1

FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

VEHICLE APPROACHING SPEAKER ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT VEHICLE APPROACHING SPEAKER ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (+) - 2 (-)

Always

6.4 to 9.6 Ω

HINT:

Make sure that the vehicle approaching speaker assembly is securely installed and not loose. If the result is not as specified, replace the vehicle approaching speaker assembly.

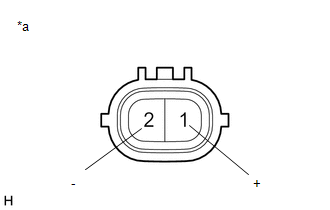

*a

Component without harness connected

(Vehicle Approaching Speaker Assembly)

Installation

INSTALLATION

PROCEDURE

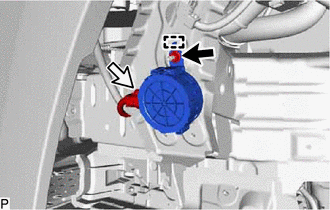

1. INSTALL VEHICLE APPROACHING SPEAKER ASSEMBLY

(a) Connect the connector.

(b) Engage the guide.

(c) Install the vehicle approaching speaker assembly with the nut.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

HINT:

Use the same procedure as for the RH side.

Click here

3. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

HINT:

Use the same procedure as for the RH side.

Click here

4. INSTALL FRONT WHEEL LH

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL LH

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

HINT:

Use the same procedure as for the RH side.

Click here

3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

HINT:

Use the same procedure as for the RH side.

Click here

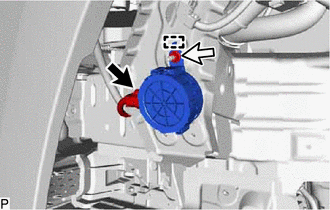

4. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

(a) Remove the nut.

(b) Disengage the guide.

(c) Disconnect the connector to remove the vehicle approaching speaker assembly.

    Removal

    Vehicle Proximity Notification System
