DISASSEMBLY

PROCEDURE

1. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

Click here

2. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

(a) Remove the screw <C>.

(b) Disengage the 2 claws to remove the No. 1 side defroster nozzle duct.

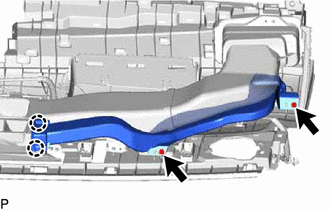

3. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

(a) Remove the 2 screws <C>.

(b) Disengage the 2 claws to remove the No. 2 side defroster nozzle duct.

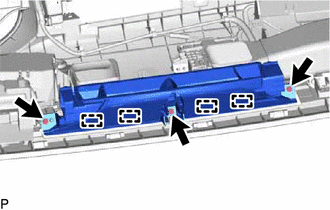

4. REMOVE DEFROSTER NOZZLE ASSEMBLY

(a) Remove the 3 screws <C>.

(b) Disengage the 4 guides to remove the defroster nozzle assembly.

5. REMOVE METER MIRROR SUB-ASSEMBLY (w/ Headup Display)

Click here

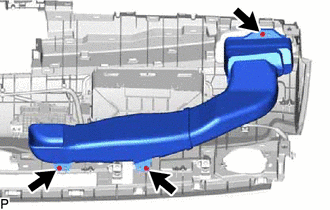

6. REMOVE NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY

(a) Remove the 3 screws <C> and No. 1 heater to register duct sub-assembly.

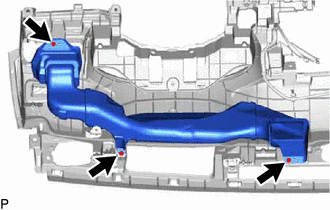

7. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

(a) Remove the 3 screws <C> and No. 3 heater to register duct sub-assembly.

8. REMOVE NO. 4 ANTENNA CORD SUB-ASSEMBLY

Click here

9. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

Click here

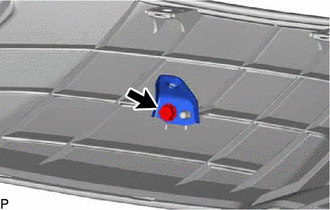

10. REMOVE NO. 1 METER BRACKET SUB-ASSEMBLY

(a) Remove the screw <C> and No. 1 meter bracket sub-assembly.

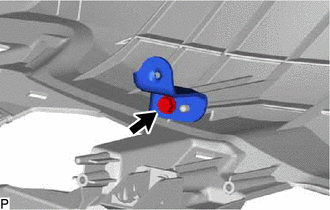

11. REMOVE NO. 2 METER BRACKET SUB-ASSEMBLY (w/ Headup Display)

(a) Remove the screw <C> and No. 2 meter bracket sub-assembly.

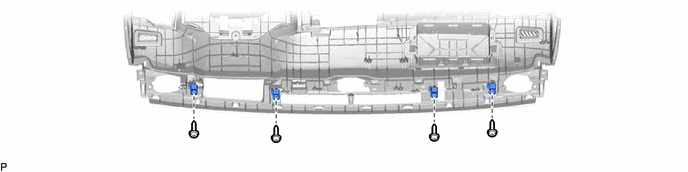

12. REMOVE NO. 1 INSTRUMENT PANEL PIN

(a) Remove the 4 screws <C> and 4 No. 1 instrument panel pins.

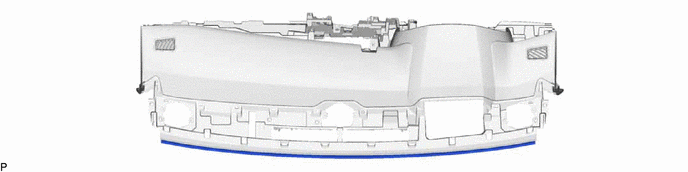

13. REMOVE INSTRUMENT PANEL CUSHION

(a) Remove the instrument panel cushion.

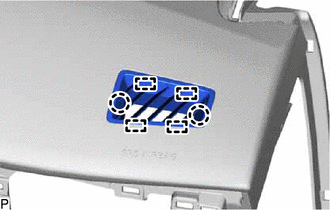

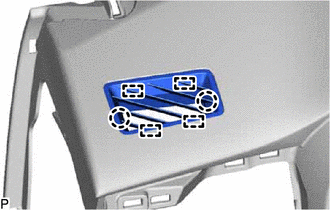

14. REMOVE NO. 1 SIDE DEFROSTER NOZZLE

(a) Disengage the 2 claws and 4 guides to remove the No. 1 side defroster nozzle.

15. REMOVE NO. 2 SIDE DEFROSTER NOZZLE

(a) Disengage the 2 claws and 4 guides to remove the No. 2 side defroster nozzle.
