Toyota Avalon Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat inner belt assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane departure alert system (w/ Steering Control)

Pre-collision system

Intelligent clearance sonar system*

Lighting system (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking assist monitor system

Panoramic view monitor system

Front passenger seat

Zero point calibration (Occupant classification system)

  • Occupant classification system
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane departure alert system (w/ Steering Control)

Pre-collision system

Intelligent clearance sonar system*

Lighting system (for HV Model with Cornering Light)

Memorize steering angle neutral point

Parking assist monitor system

Panoramic view monitor system

Front passenger seat

Zero point calibration (Occupant classification system)

  • Occupant classification system
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY

Click here

2. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)

(a) Disconnect each connector.

(b) Disengage each clamp.

(c) Remove the nut and front seat inner belt assembly LH.

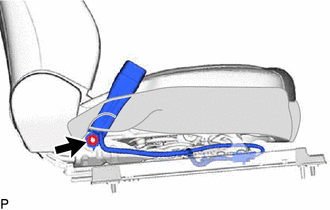

(d) Remove the front seat belt anchor plate as shown in the illustration.

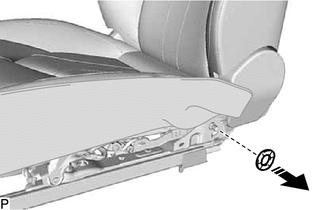

Remove in this Direction

3. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)

(a) Disconnect each connector.

(b) Disengage each clamp.

(c) Remove the nut and front seat inner belt assembly RH.

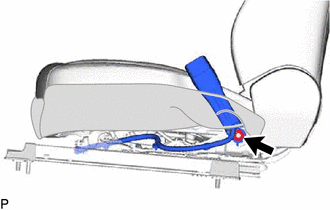

(d) Remove the front seat belt anchor plate as shown in the illustration.

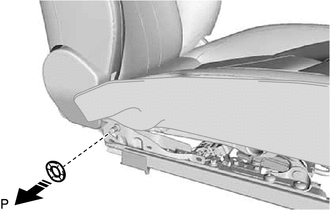

Remove in this Direction

    Installation

    Front Seat Outer Belt Assembly
