Toyota Avalon Service & Repair Manual: Engine Hood Courtesy Switch

Components

COMPONENTS

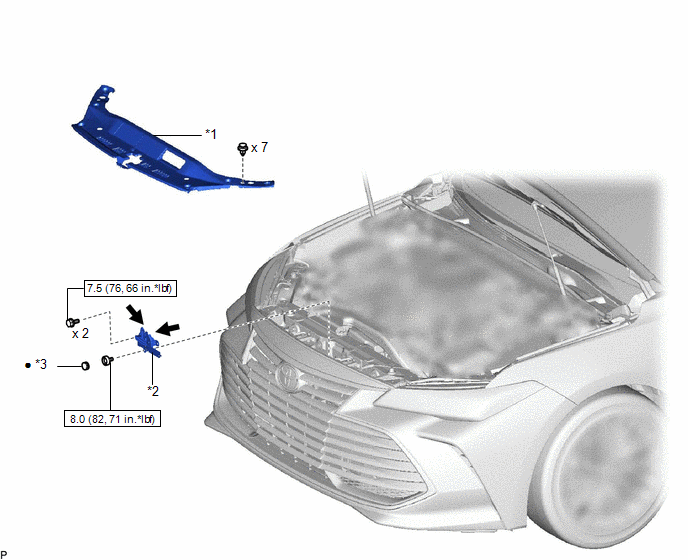

ILLUSTRATION

*1

COOL AIR INTAKE DUCT SEAL

*2

ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)

*3

HOOD LOCK NUT CAP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

Open

10 kΩ or higher

Locked

Below 1 Ω

If the result is not as specified, replace the engine hood courtesy switch (hood lock assembly).

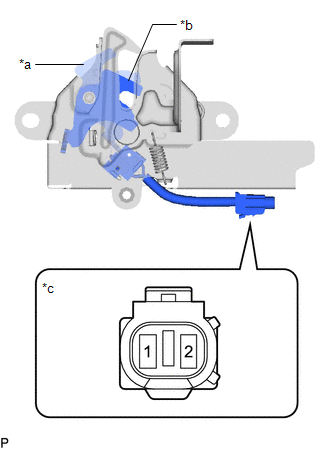

*a

Open

*b

Lock

*c

Component without harness connected

(Engine Hood Courtesy Switch (Hood Lock Assembly))

Installation

INSTALLATION

PROCEDURE

1. INSTALL ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)

Click here

2. INSTALL COOL AIR INTAKE DUCT SEAL

Click here

Removal

REMOVAL

PROCEDURE

1. REMOVE COOL AIR INTAKE DUCT SEAL

Click here

2. REMOVE ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)

Click here

    Removal
