Toyota Avalon (XX50): Toyota Entune System(for Gasoline Model)

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Audio, Visual, Telematics / Cellular Communication / Toyota Entune System(for Gasoline Model)

Confirm Cellular Phone Functionality

PROCEDURE

1.

CHECK CUSTOMER'S CELLULAR PHONE COMPATIBILITY

(a) Check if the cellular phone is compatible (Refer to http://www.toyota.com/Entune/).

Result

Proceed to

Cellular phone is compatible.

A

Cellular phone is not compatible.

B

HINT:

It is important to check the cellular phone compatibility charts carefully:

  • Some apps may only work on cellular phones.
  • Some apps may only work when paired to a vehicle.
  • Some cellular phones do not support all features.
B

RECOMMEND COMPATIBLE CELLULAR PHONE
A

2.

CONFIRM CELLULAR PHONE SIGNAL

(a) A 3G or higher connection is required for proper Toyota Entune App Suite Connect functionality. If a 3G or higher connection is not available, some apps may not function properly.

NEXT

3.

CONFIRM THE TOYOTA ENTUNE APP SUITE CONNECT APP IS DOWNLOADED TO THE CUSTOMER'S CELLULAR PHONE

(a) Turn the cellular phone on.

(b) Check that the Toyota Entune App Suite Connect app has been downloaded.

Result

Proceed to

Toyota Entune App Suite Connect app has not been downloaded.

A

Toyota Entune App Suite Connect app has been downloaded.

B
B

GO TO STEP 5

A

4.

DOWNLOAD TOYOTA ENTUNE APP SUITE CONNECT APP

(a) Download the Toyota Entune App Suite Connect app.

Result

Proceed to

Toyota Entune App Suite Connect app downloaded successfully.

A

Toyota Entune App Suite Connect app did not download successfully.

B

HINT:

Contact the service provider or cellular phone manufacturer if assistance is required for downloading the Toyota Entune App Suite Connect app or resetting the customer's cellular phone.

B

RESET CUSTOMER'S CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN
A

5.

CHECK IF THE CUSTOMER'S ACCOUNT IS VALID AND ACTIVE

(a) Start the Toyota Entune App Suite Connect app on the customer's cellular phone.

(b) Sign out of the account (if currently signed in).

(c) Sign in using the customer's account information.

Result

Proceed to

Sign in to Toyota Entune App Suite Connect app is not successful.

A

Sign in to Toyota Entune App Suite Connect app is successful.

B

HINT:

The purpose of signing out of the account and then signing back in is to ensure that the correct account is used.

B

GO TO STEP 9

A

6.

RECORD ERROR MESSAGES IF PRESENT
NEXT

7.

CONFIRM THE CUSTOMER'S CELLULAR PHONE WITH A KNOWN GOOD ENTUNE ACCOUNT (e.g. DEALER DEMO ACCOUNT)

(a) Start the Toyota Entune App Suite Connect app on the customer's cellular phone.

(b) Sign out of the customer's account (if currently signed in).

(c) Sign in using a known good Toyota Entune account (e.g. dealer demo account).

Result

Proceed to

Sign in using known good account is successful.

A

Sign in using known good account is not successful.

B

HINT:

  • The purpose of signing out of the account and then signing back in is to ensure that the correct account is used.
  • Upon completion of this procedure, be sure to sign out of the known good account on the customer's cellular phone.
  • If sign in using a known good account is successful, the customer's account has a problem. Instruct the customer to visit http://www.toyota.com/Entune/ or contact Entune customer support for account status verification.
A

CUSTOMER ACCOUNT ISSUE (SIGN OUT OF THE DEALER DEMO ACCOUNT)
B

8.

CONFIRM TOYOTA ENTUNE SERVICES ARE AVAILABLE

(a) Start the Toyota Entune App Suite Connect app on a known good cellular phone.

(b) Sign out of the account (if currently signed in).

(c) Sign in using a known good Toyota Entune account (e.g. dealer demo account).

Result

Proceed to

Sign in to Toyota Entune App Suite Connect app is successful.

A

Sign in to Toyota Entune App Suite Connect app is not successful.

B

HINT:

Contact the service provider or cellular phone manufacturer if assistance is required for resetting the customer's cellular phone.

A

RESET CUSTOMER'S CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN
B

TOYOTA ENTUNE SERVICES ARE CURRENTLY UNAVAILABLE

9.

CHECK TOYOTA ENTUNE SEARCH FUNCTION ON CUSTOMER'S CELLULAR PHONE

(a) Sign in to the Toyota Entune App Suite Connect app on the customer's cellular phone.

(b) Start a search app (e.g. Bing) within the Toyota Entune App Suite Connect app.

(c) Check that a search can be made.

Result

Proceed to

App search is successful.

A

App search is not successful.

B
A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

B

10.

RECORD ERROR MESSAGES IF PRESENT
NEXT

11.

CHECK TOYOTA ENTUNE SEARCH FUNCTION ON KNOWN GOOD CELLULAR PHONE

(a) Sign in to the Toyota Entune App Suite Connect app on a known good cellular phone.

(b) Start a search app (e.g. Bing) within the Toyota Entune App Suite Connect app.

(c) Check that a search can be made.

Result

Proceed to

App search is successful.

A

App search is not successful.

B

HINT:

Contact the service provider or cellular phone manufacturer if assistance is required for resetting the customer's cellular phone or known good cellular phone.

A

RESET CUSTOMER'S CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN
B

RESET KNOWN GOOD CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN

Confirm Vehicle Headunit Functionality

PROCEDURE

1.

CHECK CUSTOMER'S CELLULAR PHONE COMPATIBILITY

(a) Check if the cellular phone is compatible (Refer to http://www.toyota.com/Entune/).

Result

Proceed to

Cellular phone is compatible.

A

Cellular phone is not compatible.

B

HINT:

It is important to check the cellular phone compatibility charts carefully:

  • Some apps may only work on cellular phones.
  • Some apps may only work when paired to a vehicle.
  • Some cellular phones do not support all features.
B

RECOMMEND COMPATIBLE CELLULAR PHONE
A

2.

CONFIRM CELLULAR PHONE SIGNAL

(a) A 3G or higher connection is required for proper Toyota Entune App Suite Connect functionality. If a 3G or higher connection is not available, some applications may not function properly.

NEXT

3.

CONFIRM IF THE CUSTOMER'S CELLULAR PHONE CAN BE PAIRED TO THE VEHICLE

(a) Pair the customer's cellular phone to the vehicle.

Result

Proceed to

Cellular phone is not successfully paired.

A

Cellular phone is successfully paired.

B
B

GO TO STEP 5

A

4.

CONFIRM THAT A KNOWN GOOD CELLULAR PHONE CAN BE PAIRED TO THE VEHICLE

(a) Check that a known good cellular phone can be paired to the customer's vehicle.

Result

Proceed to

Cellular phone is successfully paired.

A

Cellular phone is not successfully paired.

B

HINT:

For instructions on how to reset the cellular phone, refer to the appropriate manufacturer's website.

A

RESET CUSTOMER'S CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN
B

GO TO STEP 12

5.

CHECK APPS FUNCTION WHEN PAIRED

(a) Proceed to the appropriate step based on the customer concern in the table below.

Result

Proceed to

Head unit data apps (e.g. internet search) do not function properly.

A

Head unit internet radio apps do not function properly.

B

HINT:

This is a head unit functionality check. Ensure that a cellular phone is paired to the vehicle.

B

GO TO STEP 9

A

6.

CHECK DATA APPS FUNCTION ON THE HEAD UNIT

(a) Make sure that the customer's cellular phone is paired with the vehicle.

(b) Start an internet search app on the head unit.

(c) Check if a search can be made.

Result

Proceed to

Head unit data apps do not function properly.

A

Head unit data apps function properly.

B
B

END (NO PROBLEM WAS FOUND)
A

7.

RECORD ERROR MESSAGES IF PRESENT
NEXT

8.

CHECK TOYOTA ENTUNE SEARCH FUNCTION ON THE HEAD UNIT USING A KNOWN GOOD CELLULAR PHONE

(a) Make sure that a known good cellular phone is paired with the vehicle.

(b) Start an internet search app on the head unit.

(c) Check if a search can be made.

Result

Proceed to

Head unit data apps function properly.

A

Head unit data apps do not function properly.

B

HINT:

For instructions on how to reset the cellular phone, refer to the appropriate manufacturer's website.

A

RESET CUSTOMER'S CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN
B

GO TO STEP 12

9.

CHECK INTERNET RADIO FUNCTION ON THE HEAD UNIT USING THE CUSTOMER'S CELLULAR PHONE

(a) Make sure that the customer's cellular phone is paired with the vehicle.

(b) Start an internet radio app on the head unit.

(c) Check that the audio can be heard through the vehicle's speakers.

Result

Proceed to

Head unit internet radio apps do not function properly.

A

Head unit internet radio apps function properly.

B
B

END (NO PROBLEM WAS FOUND)
A

10.

RECORD ERROR MESSAGES IF PRESENT
NEXT

11.

CHECK INTERNET RADIO FUNCTION ON THE HEAD UNIT USING A KNOWN GOOD CELLULAR PHONE

(a) Make sure that a known good cellular phone is paired with the vehicle.

(b) Start an internet radio app on the head unit.

(c) Check that the audio can be heard through the speakers.

Result

Proceed to

Head unit internet radio apps do not function properly using a known good cellular phone.

A

Head unit internet radio apps function properly using known good cellular phone.

B

HINT:

For instructions on how to reset the cellular phone, refer to the appropriate manufacturer's website.

B

RESET CUSTOMER'S CELLULAR PHONE (REMOVE BATTERY) AND TRY AGAIN
A

12.

PERFORM TOYOTA ENTUNE APP SUITE CONNECT RESET PROCEDURE

(a) Perform the Toyota Entune App Suite Connect reset procedure.

Click here

Result

Proceed to

The problem symptom has been repaired.

A

The problem symptom has not been repaired.

B
A

END
B

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

DCM Data Signal Circuit between Navigation ECU and DCM

DESCRIPTION

This circuit is used to send and receive signals between the DCM (Telematics Transceiver) and radio and display receiver assembly.

WIRING DIAGRAM

w/o Navigation System w/ Navigation System

PROCEDURE

1.

CHECK MODEL

(a) Choose the model to be inspected.

Result

Proceed to

w/o Navigation System

A

w/ Navigation System

B
B

GO TO STEP 3

A

2.

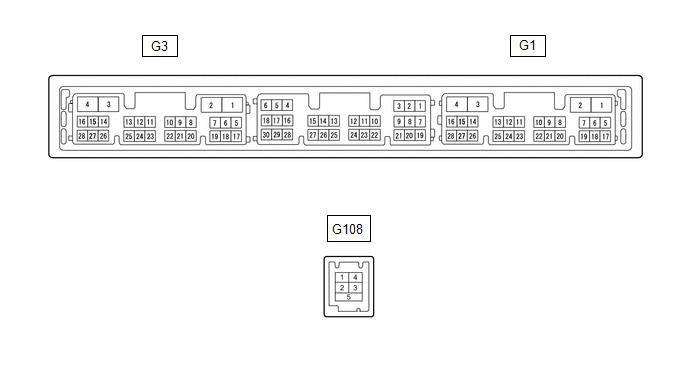

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))

(a) Disconnect the G11 DCM (Telematics Transceiver) connector.

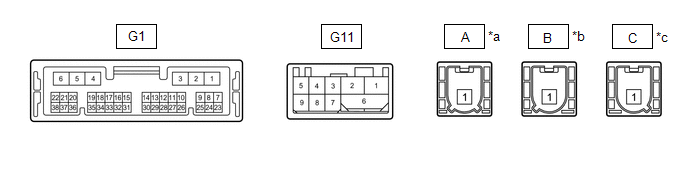

*a

Front view of wire harness connector

(to DCM (Telematics Transceiver))

(b) Disconnect the G1 and G108 radio and display receiver assembly connector.

*a

Front view of wire harness connector

(to Radio and Display Receiver Assembly)

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G11-1 (USB-) - G108-2 (USB-)

Always

Below 1 Ω

G11-2 (USB+) - G108-1 (USB+)

Always

Below 1 Ω

G11-6 (USBS) - G108-3 (USBS)

Always

Below 1 Ω

G11-3 (USBG) - G1-11 (USBG)

Always

Below 1 Ω

G11-4 (VOT+) - G1-13 (VOR+)

Always

Below 1 Ω

G11-5 (USBV) - G1-10 (USBV)

Always

Below 1 Ω

G11-7 (VOT-) - G1-14 (VOR-)

Always

Below 1 Ω

G11-8 (VOR-) - G1-16 (VOT-)

Always

Below 1 Ω

G11-9 (VOR+) - G1-15 (VOT+)

Always

Below 1 Ω

G11-1 (USB-) or G108-2 (USB-) - Body ground

Always

10 kΩ or higher

G11-2 (USB+) or G108-1 (USB+) - Body ground

Always

10 kΩ or higher

G11-6 (USBS) or G108-3 (USBS) - Body ground

Always

10 kΩ or higher

G11-3 (USBG) or G1-11 (USBG) - Body ground

Always

10 kΩ or higher

G11-4 (VOT+) or G1-13 (VOR+) - Body ground

Always

10 kΩ or higher

G11-5 (USBV) or G1-10 (USBV) - Body ground

Always

10 kΩ or higher

G11-7 (VOT-) or G1-14 (VOR-) - Body ground

Always

10 kΩ or higher

G11-8 (VOR-) or G1-16 (VOT-) - Body ground

Always

10 kΩ or higher

G11-9 (VOR+) or G1-15 (VOT+) - Body ground

Always

10 kΩ or higher
OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))

(a) Disconnect the G11 DCM (Telematics Transceiver) connector.

(b) Disconnect the G108 radio and display receiver assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G11-3 (USBG) - G108-11 (USBG)

Always

Below 1 Ω

G11-4 (VOT+) - G108-13 (VOR+)

Always

Below 1 Ω

G11-5 (USBV) - G108-10 (USBV)

Always

Below 1 Ω

G11-7 (VOT-) - G108-14 (VOR-)

Always

Below 1 Ω

G11-8 (VOR-) - G108-16 (VOT-)

Always

Below 1 Ω

G11-9 (VOR+) - G108-26 (VOT+)

Always

Below 1 Ω

G11-3 (USBG) or G108-11 (USBG) - Body ground

Always

10 kΩ or higher

G11-4 (VOT+) or G108-13 (VOR+) - Body ground

Always

10 kΩ or higher

G11-5 (USBV) or G108-10 (USBV) - Body ground

Always

10 kΩ or higher

G11-7 (VOT-) or G108-14 (VOR-) - Body ground

Always

10 kΩ or higher

G11-8 (VOR-) or G108-16 (VOT-) - Body ground

Always

10 kΩ or higher

G11-9 (VOR+) or G108-26 (VOT+) - Body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

4.

CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - DCM (TELEMATICS TRANSCEIVER))

(a) Disconnect the G11 DCM (Telematics Transceiver) connector.

*a

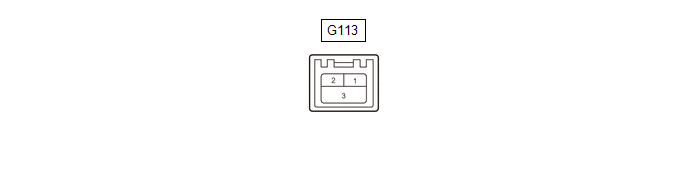

Front view of wire harness connector

(to DCM (Telematics Transceiver))

*b

Front view of wire harness connector

(to Navigation ECU)

(b) Disconnect the G113 navigation ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G11-1 (USB-) - G113-2 (USB-)

Always

Below 1 Ω

G11-2 (USB+) - G113-1 (USB+)

Always

Below 1 Ω

G11-6 (USBS) - G113-3 (USBS)

Always

Below 1 Ω

G11-1 (USB-) or G113-2 (USB-) - Body ground

Always

10 kΩ or higher

G11-2 (USB+) or G113-1 (USB+) - Body ground

Always

10 kΩ or higher

G11-6 (USBS) or G113-3 (USBS) - Body ground

Always

10 kΩ or higher
OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Does not Recognize Voice Commands Performed to Contact Support Center

PROCEDURE

1.

CHECK COMMUNICATION BASED VOICE RECOGNITION FUNCTION

(a) While paying attention to the condition of the spoken voice command, say "Find a gas station in New York" and check that voice recognition is operating normally.

HINT:

  • When the voice command is recognized, the content of the voice command is displayed in the voice recognition result display area to the right of the mic icon. (Example: When "Find a gas station in New York" is spoken, "Find a gas station in New York" is displayed in the voice recognition result display area.)
  • If an unnecessary word (such as "um" or "ah") is spoken before or after the recognition word, the system incorrectly recognizes the recognition word.
  • The system cannot recognize voice commands when multiple people are speaking simultaneously.
  • If the speaking speed is too fast or too slow, the recognition rate may decrease.
  • The system may have difficulty recognizing voice commands depending on the voice quality (such as a hoarse voice due to poor physical condition).

OK:

Voice command is recognized normally.

OK

END
NG

CONTACT SERVICE CENTER

GPS Mark is not Displayed

CAUTION / NOTICE / HINT

NOTICE:

  • Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

    Click here

  • The following may occur if a radio and display receiver assembly from another vehicle is installed to this vehicle. Therefore, when replacing the radio and display receiver assembly, be sure to replace it with a new one.
    • A communication malfunction DTC may be stored.
    • The radio and display receiver assembly may not operate normally.

PROCEDURE

1.

CHECK CABIN

(a) Check the cabin for any objects that might interrupt radio reception and devices which use radio waves on the instrument panel. If such an object exists, remove it and check if the GPS mark reappears.

HINT:

The GPS uses extremely faint radio waves originating from satellites. If the signal is interrupted by obstructions or other radio waves, the GPS may not be able to properly receive the signal.

OK:

The GPS mark appears.

OK

END
NG

2.

CHECK SURROUNDINGS

(a) Check if the vehicle is in a location where GPS signal reception is poor. If the vehicle is in such a place, relocate the vehicle and check if the GPS mark reappears.

HINT:

The GPS uses 24 satellites in 6 orbits. At any point in time, 4 satellites should be able to pinpoint your vehicle. However, GPS signals may not reach the vehicle due to influence from the surroundings, vehicle direction and time. For examples, see the following illustration.

*a

Example

*b

In a tunnel

*c

In a building

*d

Under an overpass

*e

In a forest or on tree-lined path

*f

Between tall buildings

*g

Under a cliff or overhang

-

-

OK:

The GPS mark is displayed.

OK

END (SYSTEM RETURNED TO NORMAL)
NG

3.

CHECK GPS INFORMATION (OPERATION CHECK)

(a) Enter the "System Sensors Check" screen. Refer to Check GPS & Vehicle Sensors in Operation Check.

w/o Navigation System w/ Navigation System

w/o Navigation System: Click here

w/ Navigation System: Click here

(b) Check how many of the following codes appear in the "Reception number".

HINT:

T or P appears.

OK:

At least 3 codes appear.

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

How To Proceed With Troubleshooting

CAUTION / NOTICE / HINT

HINT:

  • Use the following procedure to troubleshoot the Entune system.
  • *: Use the Techstream.

PROCEDURE

1.

VEHICLE BROUGHT TO WORKSHOP
NEXT

2.

CHECK THE CUSTOMER'S CONTRACT STATUS

(a) Check if the satellite radio and Toyota Entune contracts are valid, or if the contract period has ended using the vehicle inquiry function on TIS.

Result

Proceed to

Both Contracts are valid.

A

Contract for satellite radio is not valid.

B

Contract for Toyota Entune is not valid.

C
B

GO TO AUDIO AND VISUAL SYSTEM

C

GO TO SAFETY CONNECT SYSTEM

A

3.

CHECK CAN COMMUNICATION SYSTEM*

(a) Check if CAN communication system DTCs are output.

Click here

Result

Proceed to

CAN DTCs are not output.

A

CAN DTCs are output.

B
B

GO TO CAN COMMUNICATION SYSTEM

A

4.

CHECK FOR DTC*

(a) Perform Health Check.

Click here

(b) Check for DTCs and note any codes that are output.

(c) Clear the DTCs.

(d) Recheck for DTCs. Try to reproduce the DTCs by simulating the conditions indicated by the DTCs.

Result

Proceed to

DTCs are not output.

A

Audio and visual system DTCs are output.

B

Safety connect system DTCs are output.

C

Entune system DTCs are output.

D

Telematics system DTCs are output.

E
B

GO TO AUDIO AND VISUAL SYSTEM

C

GO TO SAFETY CONNECT SYSTEM

D

GO TO DIAGNOSTIC TROUBLE CODE CHART
E

GO TO TELEMATICS SYSTEM

A

5.

PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table.

Click here

Result

Proceed to

Fault is not listed in Problem Symptoms Table.

A

Fault is listed in Problem Symptoms Table.

B

HINT:

If the symptom does not recur and no DTCs are output, perform the simulation method.

Click here

B

GO TO STEP 7

A

6.

PERFORM TROUBLESHOOTING*

(a) Refer to Terminals of ECU.

Click here

NEXT

7.

REPAIR OR REPLACE
NEXT

8.

CONFIRMATION TEST
NEXT

END

Operation Check

OPERATION CHECK

TOYOTA ENTUNE APP SUITE CONNECT RESET PROCEDURE

(a) Duplicate the problem symptom.

(b) Check for DTCs and repair the systems for which any DTCs are output.

Click here

(c) Check cellular phone compatibility.

(1) Check if the cellular phone/vehicle is compatible (Refer to http://www.toyota.com/Entune/).

(2) If the cellular phone is not compatible, recommend to the customer a compatible cellular phone.

(d) Delete all paired devices from the cellular phone.

(1) The procedure varies based on phone model. Contact the service provider or cellular phone manufacturer if assistance is required.

(e) Remove the Toyota Entune App Suite Connect app from the phone.

NOTICE:

Only perform this step if the customer is present and approves.

(1) The procedure varies based on phone model. Contact the service provider or cellular phone manufacturer if assistance is required.

(f) Reset the phone.

NOTICE:

Only perform this step if the customer is present and approves.

(1) Turn off the phone and remove the battery for 15 seconds. For instructions on how to reset a cellular devices, refer to the appropriate manufacturer's website.

(g) Reinstall the Toyota Entune App Suite Connect app on the phone. (If removed.)

(1) The procedure varies based on phone model. Contact the service provider or cellular phone manufacturer if assistance is required.

(h) Delete all personal data from the radio and display receiver assembly.

(1) Delete all personal data from the radio and display receiver assembly.

NOTICE:

Only perform this step if the customer is present and approves.

HINT:

Re-installation of applications must be completed before applications will appear on the radio and display receiver assembly.

(i) Disconnect the cable from the negative (-) battery terminal.

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

(1) Record all radio station presets.

(2) Disconnect the cable from the negative (-) battery terminal and leave it disconnected for 2 minutes.

(j) Check if the problem symptom disappears.

Parts Location

PARTS LOCATION

ILLUSTRATION

*1

FRONT NO. 2 SPEAKER ASSEMBLY RH (for 8 Speakers)

*2

FRONT NO. 3 SPEAKER ASSEMBLY RH (for 14 Speakers)

*3

NAVIGATION ANTENNA ASSEMBLY

- Telephone Sub

*4

RADIO AND DISPLAY RECEIVER ASSEMBLY

*5

COMBINATION METER ASSEMBLY

*6

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*7

DLC3

*8

DCM (TELEMATICS TRANSCEIVER)

ILLUSTRATION

*1

FRONT NO. 1 SPEAKER ASSEMBLY RH

*2

ROOF CONSOLE BOX SUB-ASSEMBLY

- MANUAL (SOS) SWITCH

*3

TELEPHONE MICROPHONE ASSEMBLY

*4

NO. 6 ANTENNA CORD SUB-ASSEMBLY

*5

NO. 4 ANTENNA CORD SUB-ASSEMBLY

*6

NO. 3 ANTENNA CORD SUB-ASSEMBLY

*7

TELEPHONE ANTENNA ASSEMBLY

- GPS

- SDARS

- Telephone Main

*8

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*9

STEREO COMPONENT AMPLIFIER ASSEMBLY (for 14 Speakers)

-

-

Precaution

PRECAUTION

PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable from the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.

System Name

See Procedure

Lane Departure Alert System (w/ Steering Control)

Intelligent Clearance Sonar System

Parking Assist Monitor System

Panoramic View Monitor System

Pre-collision System

Lighting System (for Gasoline Model with Cornering Light)

PRECAUTION FOR TOYOTA ENTUNE SYSTEM

(a) If any of the following parts are replaced, refer to Initialization.

Click here

NOTICE:

If registration is not performed after replacing any of the following parts, the remote door lock and unlock and remote engine start and stop will not be available.

(1) DCM (telematics transceiver)

Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

NOTICE:

  • When replacing the radio receiver assembly or navigation ECU, always replace it with a new one. If a radio receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC may be stored.
    • The radio and display receiver assembly or navigation ECU may not operate normally.
  • If the DCM (telematics transceiver) has been replaced, perform the DCM Activation procedure.

    Click here

  • Before replacing the DCM (telematics transceiver), refer to Registration.

    Click here

HINT:

  • Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
  • Inspect the fuses and relays related to this system before inspecting the suspected areas below.
Entune On-screen Message

Symptom

Suspected Area

Link

A message is temporarily displayed indicating to try again after waiting for a while because the lines are busy

This is caused when there is a problem with the radio wave signal conditions or when the call center is busy. This is not a malfunction. (Inform the customer that this is not a malfunction and ask them to use the system as is.)

-

Contact the call center

-

Radio and display receiver assembly

DCM (Telematics Transceiver)

A message is displayed indicating to try again after waiting for a while because information cannot be retrieved due to a busy line, etc.

Wait for a while and perform the operation again in a different location

-

Contact the call center

-

Radio and display receiver assembly

DCM (Telematics Transceiver)

A message is displayed indicating to try again because information was not able to be retrieved

Contact the call center

-

Radio and display receiver assembly

DCM (Telematics Transceiver)

A message is displayed indicating to try again after waiting for a while because communication is being setup

The system is trying to detect the DCM (telematics transceiver). Wait for a while and perform the operation again

-

Contact the call center

-

Radio and display receiver assembly

DCM (Telematics Transceiver)

A message is displayed indicating to move the vehicle into a communication service area as it is outside a service area

Wait for a while and perform the operation again in a different location (Within the communication service area)

-

Contact the call center

-

Radio and display receiver assembly

DCM (Telematics Transceiver)

A message is displayed indicating to move the vehicle to where a GPS signal can be received because the time data is old

Proceed to "GPS Mark is not Displayed"

If the GPS mark is displayed, wait for a while and perform the operation again in a different location

-

If the problem symptom is duplicated, replace the radio and display receiver assembly

A message is displayed indicating that this service is not available now

Explain to the customer that the service is currently not available.

-

A message is displayed indicating to ask the dealer about applying for the service as it is necessary to create a contract before using the service

Check the status of the paid service contract.

-

Contact the call center

-
Destination Function

Symptom

Suspected Area

Link

Cannot contact call center when Call Dest. Assist is selected on Destination Assist Connect screen

Contact Telematics Service Provider to inquire about network status

-

Proceed to "UNABLE TO CONNECT TO CALL CENTER"

Proceed to "DCM Data Signal Circuit between Navigation ECU and DCM"

Radio and display receiver assembly

DCM (Telematics Transceiver)

Other caller's voice volume cannot be adjusted using the Destination Assist Connect screen

Radio and display receiver assembly

Dynamic Voice Recognition

Symptom

Suspected Area

Link

Does not recognize voice commands performed to contact support center

Check if the Toyota Entune System service is available

-

Check if the normal voice recognition function is operating correctly

Proceed to "Does not Recognize Voice Commands Performed to Contact Support Center"

The microphone button on the keyboard input screen does not become enabled

Check if the Toyota Entune System service is available

-

Proceed to "UNABLE TO CONNECT TO CALL CENTER"

Toyota Entune App Suite Connect Function

Symptom

Suspected Area

Link

Toyota Entune App Suite Connect function error message is displayed on the screen

Follow on screen instructions

-

Proceed to "Confirm Cellular Phone Functionality"

Proceed to "Confirm Vehicle Headunit Functionality"

Proceed to "App Suite Connect Reset Procedure" in Operation Check

Radio and display receiver assembly

Toyota Entune App Suite Connect and services are not operating as expected

Proceed to "Confirm Cellular Phone Functionality"

Proceed to "Confirm Vehicle Headunit Functionality"

Proceed to "App Suite Connect Reset Procedure" in Operation Check

Radio and display receiver assembly

Toyota Entune App Suite Connect voice recognition is not possible (Voice recognition on the audio and visual system*1 or navigation system*2 is normal)

Proceed to "Confirm Cellular Phone Functionality"

Proceed to "Confirm Vehicle Headunit Functionality"

Proceed to "App Suite Connect Reset Procedure" in Operation Check

Radio and display receiver assembly

Sound quality of Toyota Entune App Suite Connect function is poor

Check that cellular phone handset volume is turned up

-

Check that adequate signal is maintained while the vehicle is being driven

-

Proceed to "Confirm Cellular Phone Functionality"

Proceed to "Confirm Vehicle Headunit Functionality"

Proceed to "App Suite Connect Reset Procedure" in Operation Check

Radio and display receiver assembly

  • *1: w/o Navigation System
  • *2: w/ Navigation System

System Description

SYSTEM DESCRIPTION

DESCRIPTION

  • Toyota Entune allows the vehicle to receive information from the call center and links the information to the audio and visual system*1 or navigation system*2. Toyota Entune permits the driver to use the received information, such as destination information, on the audio and visual system*1 or navigation system*2.
  • Toyota Entune provides the following services: Destination Assist Connect, Dynamic Navigation, Dynamic Voice Recognition, App Suite Connect, Safety Connect, Remote Connect.
    • For details about Safety Connect, refer to Safety Connect System.

      Click here

    • For details about Remote Connect, refer to Telematics System.

      Click here

    • For details about Service Connect, go to http://www.toyota.com/Entune/.
  • Toyota Entune consists mainly of a telephone microphone assembly, DCM (telematics transceiver), radio and display receiver assembly, and telephone antenna assembly.
  • *1: w/o Navigation System
  • *2: w/ Navigation System

FUNCTION OF MAIN COMPONENTS

Component

Outline

Telephone Microphone Assembly

Receives user's voice.

DCM (Telematics Transceiver)
  • Sends and receives content information.
  • Connects to the call center when the Destination Assist Connect service etc. is active.

Radio and Display Receiver Assembly

Sends and receives the microphone voice signal.

Telephone Antenna Assembly

GPS Antenna

Receives signals from GPS satellites and sends these signals to the DCM (telematics transceiver).

SDARS (Satellite Radio) Antenna

Receives radio signals from SXM satellites.

Telephone Antenna (Main)
  • This antenna is for cellular phones. It supports transmission and reception of signals in frequency bands for cellular phones.
  • Sends signals from the DCM (telematics transceiver) and receives signals from the call center or other phones.

Navigation Antenna Assembly

Telephone Antenna (Sub)
  • This antenna is for cellular phones. It supports transmission and reception of signals in frequency bands for cellular phones.
  • Receives signals from the call center or other phones.

Speakers

Outputs the call center advisor's voice.

Stereo Component Amplifier Assembly (for 14 Speakers)

Sends the call center adviser's voice to the speakers.

SERVICES FUNCTION

(a) Toyota Entune App Suite Connect

  • Toyota Entune App Suite Connect enables the usable content of a cellular phone to be displayed on and operated from the radio and display assembly screen.
  • Toyota Entune App Suite Connect is divided into two categories, infotainment and fleet*1.
  • As "Bluetooth" communication is used for the communication between a cellular phone and the radio and display receiver assembly, before using the Toyota Entune App Suite Connect function on the audio and visual system*2 or navigation system*3, the cellular phone needs to be registered to the audio and visual system*2 or navigation system*3 as a "Bluetooth" device. For details regarding Toyota Entune App Suite Connect operations, each of the applications and compatible phones, refer to http://www.toyota.com/Entune/.
  • *1: Fleet is only available on vehicles with a DCM (telematics transceiver).
  • *2: w/o Navigation System
  • *3: w/ Navigation System

(b) Destination Assist Connect (w/ Navigation System)

  • Downloads the user's desired destination information to the navigation function after the call center is told the destination.
  • Stores the information downloaded in the navigation function so the information can be reused as required.
  • Destination Assist Connect is an in-vehicle service that allows subscribers to request directions to any location. Subscribers are connected to an agent through the Destination Assist button and may ask the agent to download the location of any destination to the navigation function in the vehicle. Agents are able to locate specific Points Of Interest (POI's) by search terms, locate specific addresses, or provide Zagat-rated restaurants as premium POI's. Agents are able to search for POI's using the distance from the vehicle, from a city, or from another POI. The navigation function can store up to 5 POI's at a time, which can be added to the device queue as the first or last entry, or as a replacement for all entries.

(c) Dynamic Navigation (w/ Navigation System)

  • Dynamic navigation searches the server for the latest map data and traffic information, etc., and depending on the latest traffic status and other data, optimizes the route and updates the map.
  • Dynamic navigation requires a contract, and a full update of the map database in the navigation ECU should be performed every 3 years.

(d) Dynamic Voice Recognition

By performing the voice recognition process with the server, natural talk input and other interactive voice operations besides the specified commands can be performed. In addition, by storing all of the user's utterances, the server will learn, and be able to perform voice recognition with greater accuracy.

System Diagram

SYSTEM DIAGRAM

w/o Navigation System w/ Navigation System

Terminals Of Ecu

TERMINALS OF ECU

DCM (TELEMATICS TRANSCEIVER)

*a

to Telephone Antenna (Sub)

*b

to Telephone Antenna (Main)

*c

to GPS Antenna

-

-

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G11-1 (USB-)

GR

USB communication line

-

-

G11-2 (USB+)

GR

USB communication line

-

-

G11-6 (USBS) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G11-3 (USBG) - Body ground

GR - Body ground

DCM (Telematics Transceiver) power supply ground signal

Always

Below 1 Ω

G11-4 (VOT+) - G9-4 (E)

R - BR

Sent voice signal

Calling while using the operator service

A waveform synchronized with the voice signals received voice is output

G11-5 (USBV) - G9-4 (E)

L - BR

DCM (Telematics Transceiver) power supply signal

Always

Below 1 V

Engine switch on (IG)

4.5 to 5.25 V

G11-7 (VOT-) - G9-4 (E)

G - BR

Sent voice signal

Calling while using the operator service

A waveform synchronized with the received voice is output

G11-8 (VOR-) - G9-4 (E)

W - BR

Receive voice signal

Receiving a call while using the operator service

A waveform synchronized with the sent voice is output

G11-9 (VOR+) - G9-4 (E)

B - BR

Receive voice signal

Receiving a call while using the operator service

A waveform synchronized with the sent voice is output

RADIO AND DISPLAY RECEIVER ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G108-2 (USB-)*

BR

USB communication line

-

-

G108-1 (USB+)*

V

USB communication line

-

-

G108-3 (USBS) - Body ground*

Shielded - Body ground

Shield ground

Always

Below 1 V

G1-15 (VOT+) - G3-1 (GND1)

B - BR

Sent voice signal

Destination assist service in use and vehicle occupant speaking to operator

A waveform synchronized with the sent voice is output

G1-10 (USBV) - G3-1 (GND1)

L - BR

DCM (Telematics transceiver) power supply

Power switch on (ACC)

4.75 to 5.25 V

Power switch off

A waveform synchronized with sound is output

G1-16 (VOT-) - G3-1 (GND1)

W - BR

Sent voice signal

Destination assist service in use and vehicle occupant speaking to operator

A waveform synchronized with the sent voice is output

G1-14 (VOR-) - G3-1 (GND1)

G - BR

Receive voice signal

Destination assist service in use and operator speaking to vehicle occupant

A waveform synchronized with the received voice is output

G1-13 (VOR+) - G3-1 (GND1)

R - BR

Receive voice signal

Destination assist service in use and operator speaking to vehicle occupant

A waveform synchronized with the received voice is output
  • *: w/o Navigation System

NAVIGATION ECU (w/ Navigation System)

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G113-2 (USB-)

BR

USB communication line

-

-

G113-1 (USB+)

V

USB communication line

-

-

G113-3 (USBS) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 V

Telephone And Gps Antenna(for Roof Side)

Toyota Entune System(for Hv Model)

See More:

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Electronically Controlled Brake System(for Hv Model): Air Bag Circuit (C147D). Master Reservoir Level Malfunction (C1202). ECM Communication Circuit (C1203)
Air Bag Circuit (C147D) DESCRIPTION The skid control ECU (brake booster with master cylinder assembly) receives the secondary collision brake control request signal from the airbag ECU assembly. DTC No. Detection Item INF Code DTC Detection Condition Trouble Area MIL Note C147D Air Bag Circuit 451 A ...

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual

© 2025 Copyright audio-visual-telematics.tavalon.net
0.1599
