Toyota Avalon (XX50) 2019-2022 Owners Manual: Using the storage features

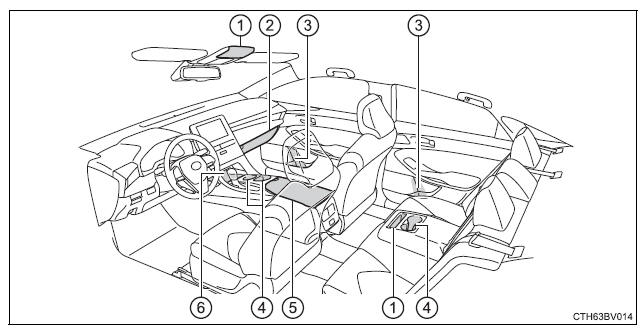

List of storage features

Using the storage features

  1. Auxiliary boxes
  2. Glove box
  3. Bottle holders/door pockets
  4. Cup holders
  5. Console box
  6. Auxiliary box/open tray
WARNING
  • Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:
    •  Glasses may be deformed by heat or cracked if they come into contact with other stored items.
    •  Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.
  • When driving or when the storage compartments are not in use, keep the lids closed.

    In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by an open lid or the items stored inside.

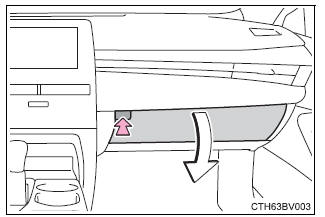

Glove box

Push the button to open the glove box.

Using the storage features

The glove box light turns on when the engine switch is in ACCESSORY or IGNITION ON mode.

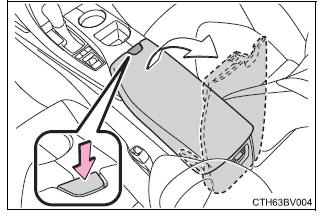

Console box

Push the knob.

Using the storage features

■Console box tray

The tray can be removed.

Using the storage features

■Console box light

The console box light turns on when the engine switch is in ACCESSORY or IGNITION ON mode.

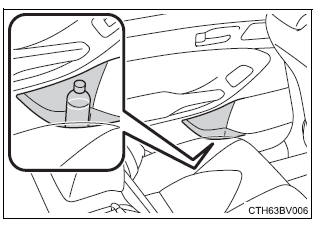

Bottle holders

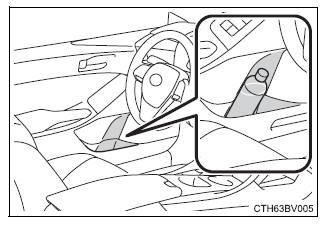

Front

Using the storage features

Rear

Using the storage features

  • When storing a bottle, close the cap.
  • The bottle may not be stored depending on its size or shape.
WARNING Do not place anything other than a bottle in the bottle holders.

Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.



NOTICE Put the cap on before stowing a bottle. Do not place open bottles in the bottle holders, or glass or paper cups containing liquid. The contents may spill and glass cups may break.

Cup holders

Front

Using the storage features

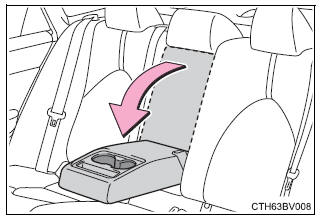

Rear

Using the storage features

Pull the armrest down.

WARNING
  • Do not place any objects that fit loosely or are very tall in the cup holders, otherwise they may fall out while driving, possibly leading to an accident.
  • To prevent burns, cover hot drinks when placed in the cup holders.

Auxiliary boxes

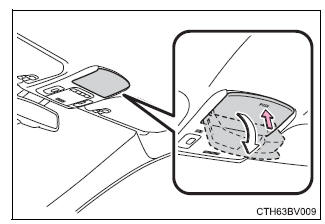

Type A (if equipped)

Using the storage features

Push the lid.

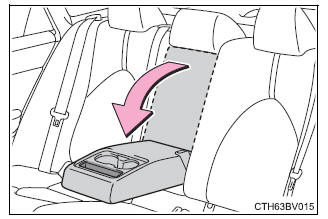

Type B

Using the storage features

Pull the armrest down.

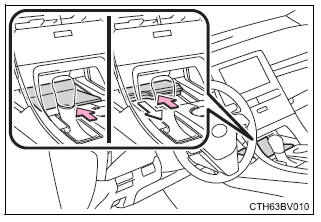

Type C

Using the storage features

Opening: Push the tray forward until it locks.

Closing: Push the tray forward to release the lock and the tray will automatically close.

■When small items are placed on top of the tray (type C)

The tray can be opened while small items are placed on it.

Using the storage features

WARNING

■Items unsuitable for storing (type A) Do not store items heavier than 0.4 lb. (0.2 kg).

Doing so may cause the auxiliary box to open and the items inside may fall out, resulting in an accident.



NOTICE

■When opening or closing the tray (type C)

  • To prevent damaging small items, when opening the tray while small items are placed on it, make sure the items will not get caught.
  • To prevent damaging the tray, do not pull the tray to close it. Doing so may damage the tray.
  • When on a steep downward incline, the tray may be slow to close automatically.

    In this case, the tray can be pulled closed after pushing it to release the lock.

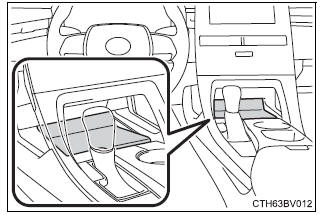

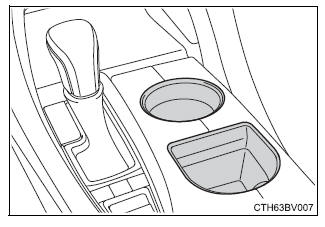

Open tray

Using the storage features

WARNING Do not store items in the tray that can easily shift or roll out.

Failure to do so may cause items to be thrown out of the tray in the event of sudden braking or steering. In these cases, the items may interfere with pedal operation or cause driver distraction, resulting in an accident.

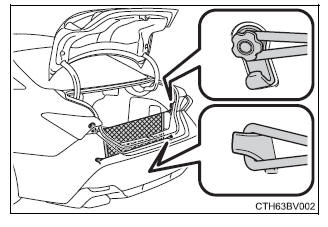

Trunk features

Grocery bag hooks

Using the storage features

NOTICE To prevent damage to the hooks, do not apply too much load to the hooks.

Cargo net

Using the storage features
