SYSTEM DESCRIPTION

GENERAL

(a) This system has front, passenger side, driver side and television camera assemblies mounted around the vehicle to display around the vehicle on the radio and display receiver assembly. The multi-display also shows a composite view consisting of the area behind the vehicle and parking guidelines to assist the driver in parking the vehicle by monitoring the area around the vehicle.

When the rear camera detection function of the television camera assembly detects a pedestrian within the detection area when reversing, a buzzer sounds and an icon is displayed on the multi-display to warn the driver.

(b) This system consists of the following components:

(1) Parking assist ECU

(2) Panoramic view monitor switch

(3) Television camera assembly

(4) Front television camera assembly

(5) Side television camera assembly LH

(6) Side television camera assembly RH

(7) Radio and display receiver assembly

(8) Network gateway ECU

(9) Steering Sensor

(10) Skid control ECU

(11) Main body ECU (multiplex network body ECU)

(12) Clearance warning ECU assembly

(13) ECM

(14) Blind spot monitor sensor

(15) RCTA buzzer (blind spot monitor buzzer)

(16) BKUP LP relay

(c) This system is equipped with a self-diagnosis system, which is operated from a designated window that appears on the multi-display, just as in the navigation system.

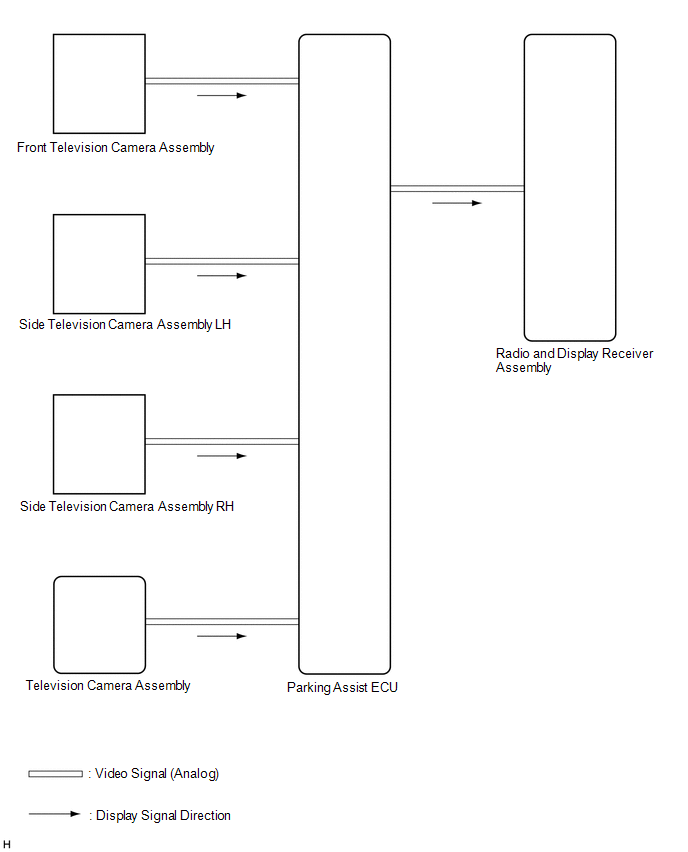

FUNCTION OF COMPONENTS

(a) The parking assist ECU controls the system by using information from the following components.

Item

Function

Television Camera Assembly

  • Generates a video feed showing the rear side of the vehicle and transmits the video to the parking assist ECU
  • Transmits a camera detection buzzer request signal to the blind spot monitor sensor via CAN communication.

Front Television Camera Assembly

Generates a video feed showing the front side of the vehicle and transmits the video to the parking assist ECU

Side Television Camera Assembly LH

Generates a video feed showing the left side of the vehicle and transmits the video to the parking assist ECU

Side Television Camera Assembly RH

Generates a video feed showing the right side of the vehicle and transmits the video to the parking assist ECU

Parking Assist ECU

  • Turns the panoramic view monitor system ON and OFF according to the display conditions, based on the received panoramic view monitor switch signals, shift position signals, and vehicle speed signals
  • Transmits the display request signals for the panoramic view and wide front view screen, two-side view screen, panoramic view and rear view screen, wide rear view screen, narrow rear view screen, see through view screen, or moving view screen to the radio and display receiver assembly according to the display conditions, based on the received panoramic view monitor switch signals, shift position signals, and vehicle speed signals
  • Displays the composite image of the surrounding area images taken by each camera and the image calculated from vehicle status information such as the steering angle signals on the radio and display receiver assembly screen
  • Renders each configuration page in the diagnosis window and outputs the screen to the radio and display receiver assembly
  • Stops displaying the buttons and guidelines on the panoramic view and rear view monitor screen when the screen is being displayed and a luggage compartment door open status signal is received
  • Stores each configuration setting from the diagnosis window
  • Receives the reverse signal from the BKUP LP relay.

Panoramic View Monitor Switch

Transmits switch operation signals to the parking assist ECU

Radio and display receiver assembly

  • Receives the video signals from the Parking Assist ECU, and displays them on the multi-display
  • Allows operations when the panoramic view monitor screen or diagnosis screen is displayed

Steering Sensor

Transmits the steering angle signals and sensor status signals to the parking assist ECU via the CAN communication

Skid Control ECU

Transmits the vehicle speed signals, drive type signals, and system status signals to the parking assist ECU via the CAN communication

ECM

  • Transmits the engine model signals, and system status signals to the parking assist ECU via the CAN communication
  • Transmits the shift position signals to the parking assist ECU via the CAN communication

Main Body ECU (Multiplex Network Body ECU)

Transmits the luggage compartment door courtesy light switch signal to the parking assist ECU via the CAN communication

Clearance Warning ECU Assembly

Transmits information from each sonar via the CAN communication

Blind Spot Monitor Sensor

Transmits the RCTA information signal via CAN communication

RCTA Buzzer (Blind Spot Monitor Buzzer)

Sounds based on a signal from the blind spot monitor sensor.

BKUP LP Relay

Transmits the reverse signal to the parking assist ECU

PANORAMIC VIEW SCREEN DISPLAY

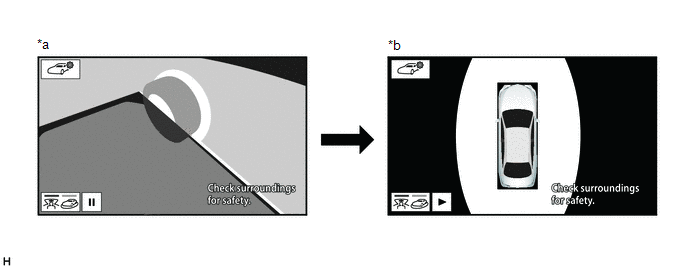

(a) See-through view screen

(1) The entire area surrounding the vehicle is displayed.

*a

Vehicle interior view

*b

Upper view

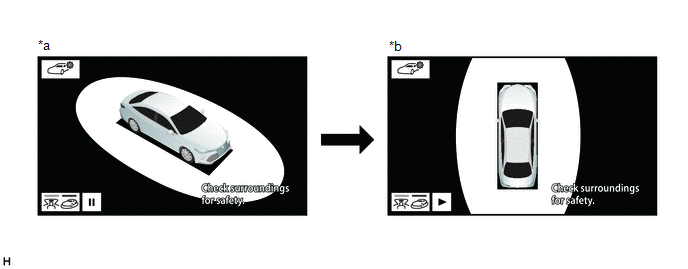

(b) Moving view screen

(1) The entire area surrounding the vehicle is displayed.

*a

Slant upper view

*b

Upper view

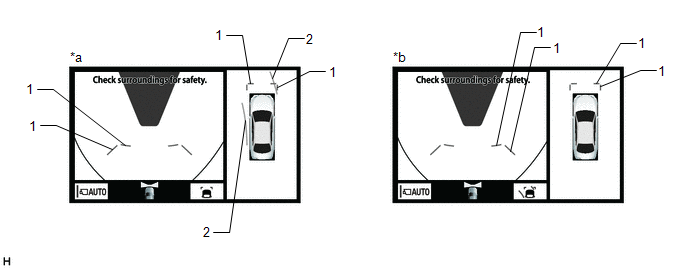

(c) Panoramic view and wide front view screen

*a

Estimated course line display mode

*b

Distance guide line display mode

Panoramic View and Wide Front View Screen Description

Signal

Name

Color

Panoramic View and Wide Front View Screen

Estimated course line display mode

Distance guide line display mode

(1)

Front distance guide line

Blue

Displayed

Displayed

(2)

Front forward estimated course line

Yellow

Displayed

Not displayed

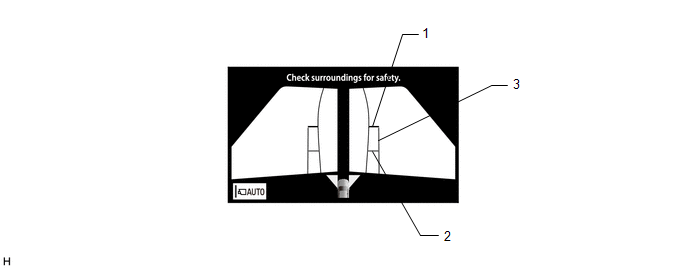

(d) Two-side view screen description

Two-side View Screen Description

Signal

Name

Color

(1)

Front distance guide line

Red/Black

(2)

Front wheel ground contact line

Blue

(3)

Vehicle width parallel line

Blue

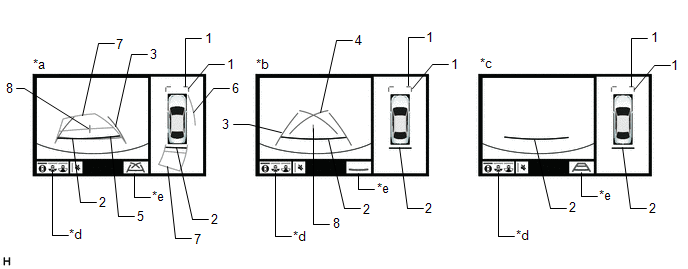

(e) Panoramic view and rear view screen

*a

Estimated course line display mode

*b

Parking guide line display mode

*c

Distance guide line display mode

*d

Display mode switching button

*e

Guide line display mode switching button

-

-

HINT:

The screen changes to the wide rear view screen when the display mode switch button or rear view screen is selected.

Panoramic View and Rear View Screen Description

Signal

Name

Color

Panoramic View and Rear View Screen

Estimated course line display mode

Parking guide line display mode

Distance guide line display mode

(1)

Front distance guide line

Blue

Displayed

Displayed

Displayed

(2)

Rear distance guide line

Red/Black

Displayed

Displayed

Displayed

(3)

Rear vehicle width extension line

Blue

Displayed

Displayed

Not displayed

(4)

Parking guide line

Blue

Not displayed

Displayed

Not displayed

(5)

Rear distance guide line

Blue

Displayed

Not displayed

Not displayed

(6)

Side estimated course line

Yellow

Displayed

Not displayed

Not displayed

(7)

Rear estimated course line

Yellow

Displayed

Not displayed

Not displayed

(8)

Vehicle center line

Blue

Displayed

Displayed

Not displayed

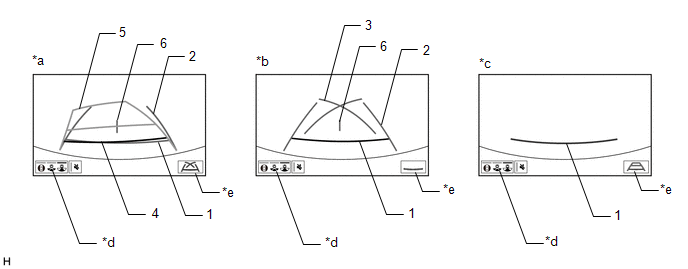

(f) Wide rear view screen

*a

Estimated course line display mode

*b

Parking guide line display mode

*c

Distance guide line display mode

*d

Display mode switching button

*e

Guide line display mode switching button

-

-

HINT:

The screen changes to the narrow rear view screen when the display mode switch button or rear view screen is selected.

Wide Rear View Screen Description

Signal

Name

Color

Rear View Screen

Estimated course line display mode

Parking guide line display mode

Distance guide line display mode

(1)

Rear distance guide line

Red/Black

Displayed

Displayed

Displayed

(2)

Rear vehicle width extension line

Blue

Displayed

Displayed

Not displayed

(3)

Parking guide line

Blue

Not displayed

Displayed

Not displayed

(4)

Rear distance guide line

Blue

Displayed

Not displayed

Not displayed

(5)

Rear estimated course line

Yellow

Displayed

Not displayed

Not displayed

(6)

Vehicle center line

Blue

Displayed

Displayed

Not displayed

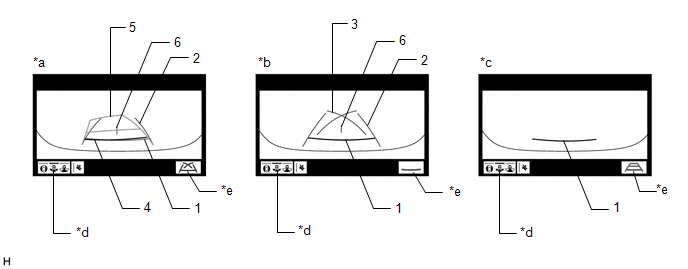

(g) Narrow Rear view screen

*a

Estimated course line display mode

*b

Parking guide line display mode

*c

Distance guide line display mode

*d

Display mode switching button

*e

Guide line display mode switching button

-

-

HINT:

The screen changes to the panoramic view and rear view screen when the display mode switch button or rear view screen is selected.

Narrow Rear View Screen Description

Signal

Name

Color

Rear View Screen

Estimated course line display mode

Parking guide line display mode

Distance guide line display mode

(1)

Rear distance guide line

Red/Black

Displayed

Displayed

Displayed

(2)

Rear vehicle width extension line

Blue

Displayed

Displayed

Not displayed

(3)

Parking guide line

Blue

Not displayed

Displayed

Not displayed

(4)

Rear distance guide line

Blue

Displayed

Not displayed

Not displayed

(5)

Rear estimated course line

Yellow

Displayed

Not displayed

Not displayed

(6)

Vehicle center line

Blue

Displayed

Displayed

Not displayed

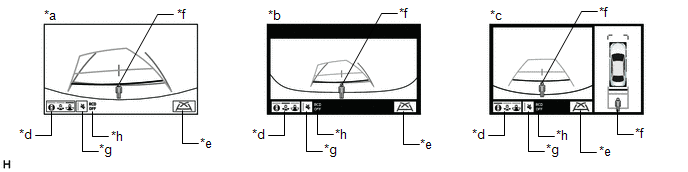

(h) Rear camera detection function screen

*a

Narrow rear view screen

*b

Wide rear view screen

*c

Panoramic view and rear view screen

*d

Display Mode Switching Button

*e

Guide Line Display Mode Switching Button

*f

Pedestrian Detection Icon

*g

Mute Switch

*h

RCD OFF Indicator (Displays Only when Rear Camera Detection is OFF)*

  • *: The setting can be changed on the diagnosis screen.

    Click here

PANORAMIC VIEW SCREEN DESCRIPTION

(a) Manual display mode

(1) When the panoramic view monitor switch is pressed with the engine switch on (IG) or the engine started, the panoramic view monitor system switches to a screen shown below according to the shift lever position

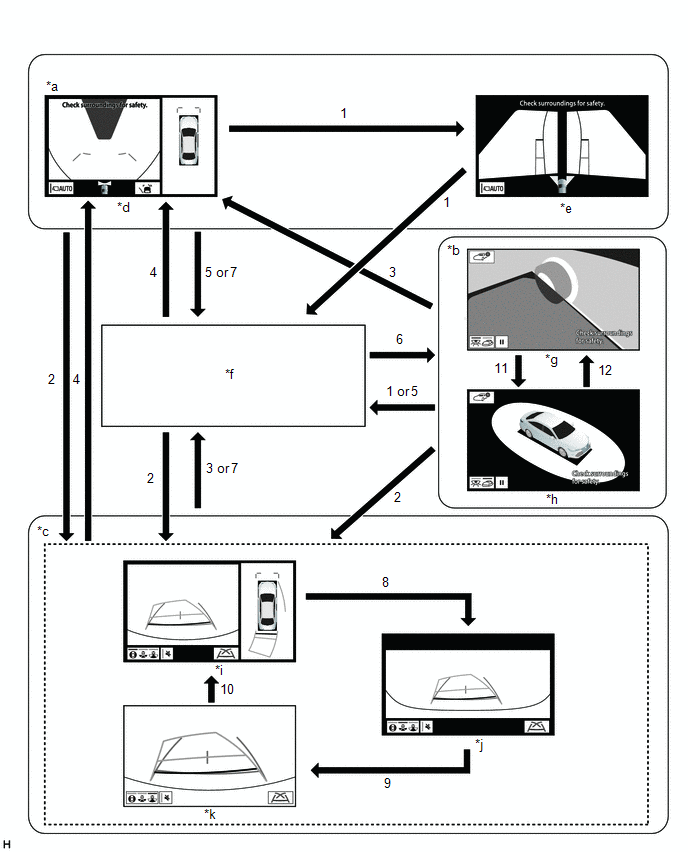

Screen Transition Chart (Manual Display Mode)

*a

Shift lever not in P or R

*b

Shift lever in P and intelligent clearance sonar system on

*c

Shift lever in R

*d

Panoramic view and wide front view screen

*e

Two-side view screen

*f

Audio screen, etc.

*g

See-through view screen

*h

Moving view screen

*i

Panoramic view and rear view screen

*j

Wide rear view screen

*k

Narrow rear view screen

-

-

Screen Transition Conditions (Manual Display Mode)

No.

Screen Transition Conditions

(1)

Panoramic view monitor switch is pressed

(2)

Shift lever is moved to R

(3)

Shift lever is moved to other than P or R

(4)

Shift lever is moved to other than P or R and operation (1) is performed

(5)

"HOME" switches, etc. on the radio and display receiver assembly are pressed

(6)

Operation (1) is performed with the shift lever in P

(7)

Shift lever is moved to P

(8)

Display mode switching button or rear view screen is selected

(9)

Display mode switching button or wide rear view screen is selected

(10)

Display mode switching button or narrow rear view screen is selected

(11)

Moving view switch button is selected

(12)

See through view switch button is selected

HINT:

If the panoramic view monitor switch is pressed at a vehicle speed of approximately 12 km/h (7.5 mph) or lower, the panoramic view monitor system screen is displayed. If the vehicle speed exceeds approximately 12 km/h (7.5 mph), the display switches to the audio screen or information settings screen.

(b) Screen transition chart (automatic display mode)

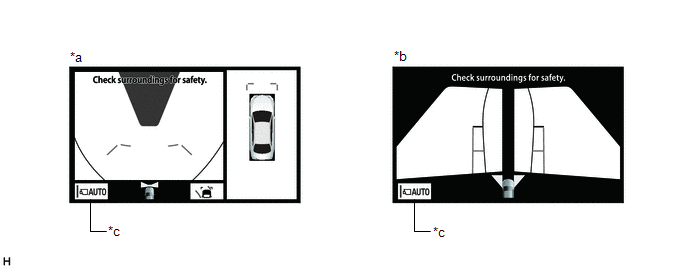

(1) When the shift lever is not in P or R, in addition to switching screens by pressing the panoramic view monitor switch, the automatic display mode can be selected by pressing the automatic display mode switching button.

*a

Panoramic view and wide front view screen

*b

Two-side view screen

*c

Automatic display mode

-

-

Automatic Display Mode Switching Button

(Indicator in Button)

Screen Switching Mode

ON

(Illuminated)

Automatic display mode

OFF

(Not illuminated)

Manual display mode

HINT:

  • In the automatic display mode, press the panoramic view monitor switch or panel switch to switch screens in the same way as the manual display mode.
  • When switching to the audio screen, etc. in the automatic display mode, the display switches to the screen that was displayed last. However, the display switches to the panoramic view and wide front view screen if the shift lever is not in P or R after the engine switch is turned from off to on (IG).

(2) The automatic display mode automatically switches the display according to the vehicle status.

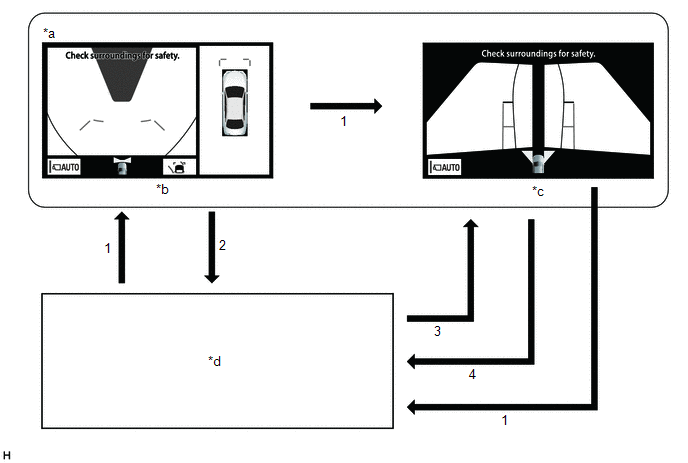

Screen Transition Chart (Automatic Display Mode)

*a

Shift lever not in P or R

*b

Panoramic view and wide front view screen

*c

Two-side view screen

*d

Audio screen, etc.

Screen Transition Conditions (Automatic Display Mode)

No.

Screen Transition Conditions

*: The panoramic view and wide front view screen is the first screen displayed after the engine switch was turned off.

(1)

Panoramic view monitor switch is pressed

(2)

Current location switches, etc. on the radio and display receiver assembly are pressed

(3)

Vehicle speed changes from above approximately 10 km/h (6 mph) to approximately 10 km/h (6 mph) or lower. The screen that was last displayed is displayed on the radio and display receiver assembly.*

(4)

Vehicle speed changes from approximately 12 km/h (7 mph) or lower to above approximately 12 km/h (7 mph)

(c) Panoramic View Zoom Function

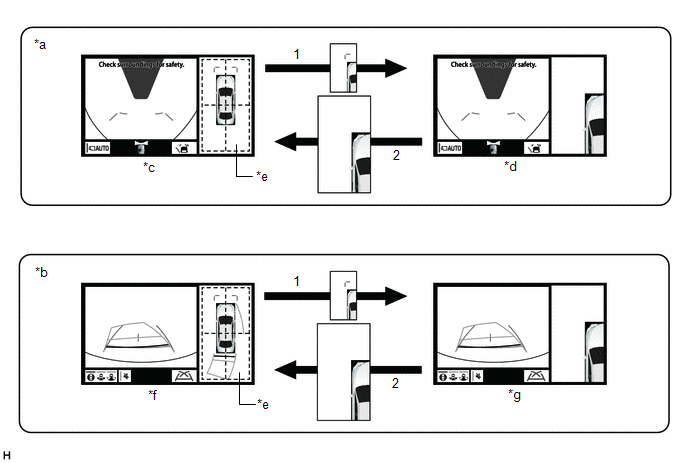

(1) When detail within the image on the panoramic view screen is too small and difficult to see, the user can magnify the image by selecting one of the 4 areas on the panoramic view screen.

Screen Transition

*a

Panoramic view and wide front view screen displayed while shift lever is not in P or R

*b

Panoramic view and rear view screen displayed

*c

Panoramic view and wide front view screen

*d

Panoramic view and wide front view screen (Front left view magnified)

*e

Panoramic view screen

*f

Panoramic view and rear view screen

*g

Panoramic view and rear view screen (Front left view magnified)

-

-

Screen Transition Conditions

No.

Screen Transition Conditions

(1)

Any of the 4 areas on the panoramic view screen is selected while the vehicle speed is approximately 12 km/h (7 mph) or less and the intelligent clearance sonar system is turned on.

(2)

The panoramic view zoom screen is selected, or either of the following conditions is met:

  • The vehicle speed changes from approximately 12 km/h (7 mph) or less to over approximately 12 km/h (7 mph).
  • The intelligent clearance sonar system is turned off.

OPERATION EXPLANATION

(a) Operation description of the rear camera detection function

(1) Operation conditions:

  • The engine switch on (IG).
  • The shift lever is in R.

(2) Detection Area

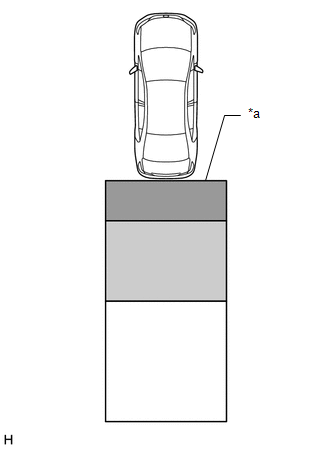

*a

Detection Area

Detection Area A

Detection Area B

Detection Area C

Detection Area

Buzzer Operation

Pedestrian Detection Icon

A

Sounds repeatedly

Blinks 3 times and then stays on

B

  • When the vehicle is stationary: Sounds 3 times
  • When the vehicle is backing up: Sounds repeatedly

Blinks 3 times and then stays on

C

When it is determined that a pedestrian will enter area A within a few seconds: Sounds repeatedly

When it is determined that a pedestrian will enter area A within a few seconds: Blinks 3 times and then stays on

HINT:

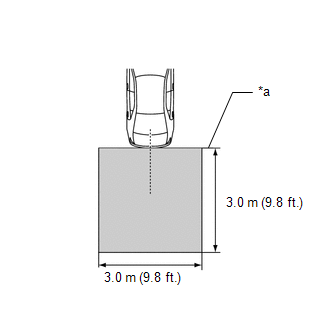

  • Absolute Detection Area (3.0 m (9.8 ft.) from the edge of bumper, 3.0 m (9.8 ft.) wide

    *a

    Edge of Bumper

    Absolute Detection Area

  • *a

    Edge of Bumper

    Absolute No Detection Area

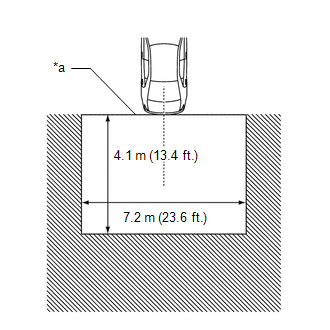

    Absolute No Detection Area (4.1 m (13.4 ft.) from the edge of the bumper, 7.2 m (23.6 ft.) wide)

COMMUNICATION SYSTEM OUTLINE

(a) CAN communication system

(1) The panoramic view monitor system uses CAN communication for data communications between the parking assist ECU and each ECU.

(2) If a problem occurs in the CAN communication line, the parking assist ECU outputs a CAN communication malfunction DTC. (To check, use the Techstream.)

Click here

(3) If a problem occurs in the CAN communication line, the parking assist ECU outputs a CAN communication malfunction DTC. (To check, use the radio and display receiver assembly diagnosis screen.)

Click here

(4) If a CAN communication line malfunction DTC is output, repair the malfunction in the communication line and troubleshoot the panoramic view monitor system when data communication is normal.

(5) Since the CAN communication line has its own length and route, it cannot be repaired temporarily with a bypass wire, etc.

VIDEO SIGNALS

(a) Video signal circuit

(1) Video signals from the front television camera assembly are input into the parking assist ECU via analog communication lines (vehicle wire harness).

(2) Video signals from the side television camera assembly LH are input into the parking assist ECU via analog communication lines (vehicle wire harness).

(3) Video signals from the side television camera assembly RH are input into the parking assist ECU via analog communication lines (vehicle wire harness).

(4) Video signals from the television camera assembly are input into the parking assist ECU via analog communication lines (vehicle wire harness).

(5) Video signals from the parking assist ECU are input into the radio and display receiver assembly via analog communication lines (vehicle wire harness).

(b) Screen display

(1) Video signals input from each camera are processed in the parking assist ECU and displayed on the radio and display receiver assembly as the panoramic view monitor system screen.

DIAGNOSTIC FUNCTION OUTLINE

(a) This panoramic view monitor system has a diagnostic function displayed in the radio and display receiver assembly. This function enables the calibration (adjustment and verification) of the panoramic view monitor system.

Click here

(b) The panoramic view monitor system can check the following items by using the Techstream.

Item

Proceed to

DTC

Data List / Active Test

CALIBRATION

(a) Use the panoramic view monitor system diagnosis screen for calibration and checking of the panoramic view monitor system.

Click here

NOTICE:

Part replacement and work performed during servicing may require calibration of the panoramic view monitor system and other systems.

Click here

    Problem Symptoms Table

    System Diagram

    See More:

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Brake Vacuum Hose(for Gasoline Model): Installation
    INSTALLATION PROCEDURE 1. INSTALL AIR TUBE (a) Engage the clamp to install the air delivery way to the intake air surge tank assembly. (b) Install the 2 clips to the air tube. (c) Connect the air tube to the air delivery way, and slide the clip to secure it. NOTICE: Make sure to position the paint m ...

    Toyota Avalon (XX50) 2019-2022 Owners Manual

    Toyota Avalon (XX50) 2019-2022 Service & Repair Manual

    © 2024 Copyright www.tavalon.net
    0.016
