Toyota Avalon Owners Manual: Menu icons

Select a menu icon to display its content.

Driving information

Select to display the following:

  • Speedometer/driving range

  • Fuel consumption

  • Eco Driving Indicator/driving range

Driving assist system information

Select to perform the following:

Display the operational status of the following systems:

  • Dynamic radar cruise control with full-speed range

  • LDA (Lane Departure Alert with steering control)

Display the following navigation system-linked information (if equipped):

  • Route guidance

  • Compass display (heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the multi-information display using the meter control switches.

Vehicle information

Select to perform the following:

Display the following information:

  • Tire inflation pressure

Enable/Disable the following systems:

  • Parking assist (Intuitive parking assist) (if equipped)

  • BSM (Blind Spot Monitor) function

  • RCTA (Rear Cross Traffic Alert) function

These functions can also be enabled/disabled on .

Settings display

Select to change the meter display settings and other settings.

Warning message display

Select to display warning messages and measures to be taken if a malfunction is detected.

Driving information ( )

■ Speedometer/driving range

  • Speedometer
  • Driving range

Displays the driving range with remaining fuel.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

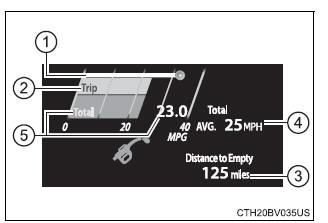

■ Fuel consumption

  1. Current fuel consumption
    Displays the instantaneous current fuel consumption.
  2. Average fuel economy (after start)
    Displays the average fuel consumption since engine start.*1
  3. Driving range
    Displays the driving range with remaining fuel.*2, 3

Multi-information display

  1. Gadget*4
    The following items can be displayed by changing the settings for gadget content and fuel economy type on .

Displayable item

Content

Gadget Content content

Fuel economy type

Average vehicle speed Trip (after start) Displays the average vehicle speed since engine start.
Total (after reset) Displays the average vehicle speed since the display was reset.*5
Distance Trip (after start) Displays the distance driven since vehicle start.
Total (after reset) Displays the distance driven since the display was reset.*5
Elapsed time Trip (after start) Displays the elapsed time since engine start.
Total (after reset) Displays the elapsed time since the display was reset.*5
  1. Average fuel economy
    Displayed item (listed below) can be changed on the fuel economy type screen of .
  • Total (after reset)
    Displays the average fuel consumption since the display was reset.*1, 5
  • Tank (after refuel)
    Displays the average fuel consumption since the vehicle was refueled.* 1, 2

*1: Use the displayed fuel consumption as a reference only.

*2: When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

*3: This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

*4: The default setting is no display.

*5: This display can be reset by pressing and holding while it is displayed.

■ Eco Driving Indicator/driving range

  • Eco Driving Indicator
  • Driving range
    Displays the driving range with remaining fuel.

    When only a small amount of fuel is added to the tank, the display may not be updated.

    When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

    This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

Settings display ()

Changing settings

Use the meter control switches on the steering wheel to change settings.

  1. Press or to select .
  2. Operate the switches to select a desired item.
  3. Press or press and hold .

The available settings will differ depending on if is pressed or pressed and held. Follow the instructions on the display.

Setting items

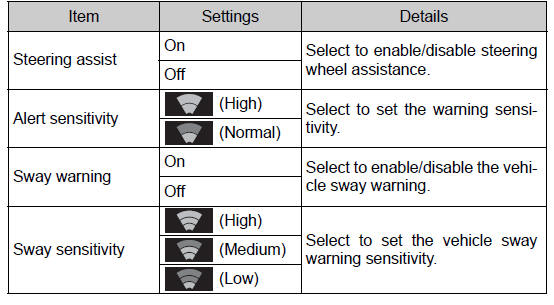

LDA (Lane Departure Alert with steering control)

Press and hold to change the settings of the following items:

Multi-information display

PCS (Pre-Collision System)

Press to enable/disable the pre-collision system.

Multi-information display

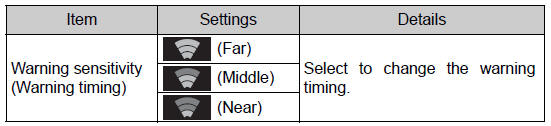

Press and hold to change the settings of the following item:

Multi-information display

BSM (Blind Spot Monitor)

Press to enable/disable the Blind Spot Monitor function.

Multi-information display

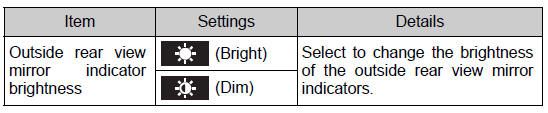

Press and hold to change the settings of the following item:

Multi-information display

RCTA (Rear Cross Traffic Alert)

Press to enable/disable the Rear Cross Traffic Alert function.

Multi-information display

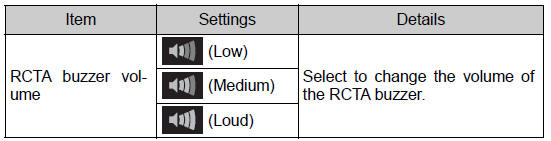

Press and hold  to change the settings of the following item:

Multi-information display

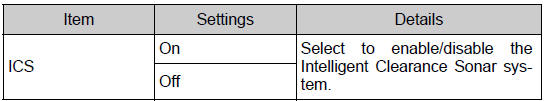

ICS (Intelligent Clearance Sonar) (if equipped)

Press to enable/disable the Intelligent Clearance Sonar.

Multi-information display

Parking assist (Intuitive parking assist) (if equipped)

Press to enable/disable the Intuitive parking assist.

Multi-information display

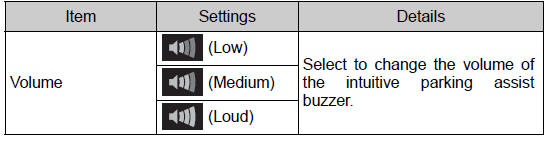

Press and hold to change the settings of the following item:

Multi-information display

HUD (Head-up display) (if equipped)

Press to enable/disable the head-up display.

Multi-information display

Press and hold to change the settings of the following items:

Item Settings Details
HUD Brightness/Position Select to adjust the brightness/ position of the head-up display.
  • Press the switch to adjust the display brightness.
  • Press the switch to adjust the display position.
HUD Driving support Tachometer settings Select to change the display between the following:
  • Eco Driving Indicator
  • Tachometer
  • No content
Navigation system Select to enable/disable head-up display content.
Driving Assist
Compass
Rotation Select to adjust the angle of the head-up display.

Press the switch to adjust the display angle.

Vehicle settings

Press and hold to change the settings of the following items:

Item Settings Details
TPWS (Tire pressure warning system)
Set pressure (tire pressure warning system initialization) Select to initialize the tire pressure warning system. To perform initialization, press and hold the switch.

Before performing initialization, make sure to adjust the inflation pressure of each tire to the specified level.

Change wheel (register tire pressure warning system sensor ID codes) Select to register the ID codes of the tire pressure sensors to the tire pressure warning system. To register the ID codes, press and hold the switch.
Scheduled maintenance display
Maintenance data reset Select to reset the message indicating maintenance is required, after the required maintenance is performed.

Meter settings

Press and hold to change the settings of the following items:

Item Settings Details
Language Select to change the language displayed.
Units Select to change the units of measure displayed.
(Eco Driving Indicator Light) On Select to enable/disable the Eco Driving Indicator Light.
Off
Speedometer On Select to enable/disable the speedometer display.
Off
Gadget content Off No display
Average vehicle speed Select to turn the display of a gadget.
Distance
Elapsed time
Fuel economy type Trip (after start)*1 Select to change the average fuel consumption display and an item to be displayed as gadget.
Total (after reset)
Tank (after refuel)*2
Multi-information display off   Select to turn the multi-information display off.

To turn the multi-information display on again, press any direction switch ( ).

Pop-up display Intersection guidance (if equipped) Select to enable/disable the popup display.
Incoming calls
Brightness adjustment
Default setting Select to reset the meter display settings to the default setting.

*1: Selecting this item will only change the gadget.

*2: Selecting this item will turn the display of the gadget off.

Odometer/trip meter

■ Odometer Displays the total distance the vehicle has been driven.

■ Trip meter A/trip meter B Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.

To reset, display the desired trip meter and press and hold the "ODO/ TRIP" switch.

    Summary of functions

    Suggestion function
