Toyota Avalon Service & Repair Manual: Components

COMPONENTS

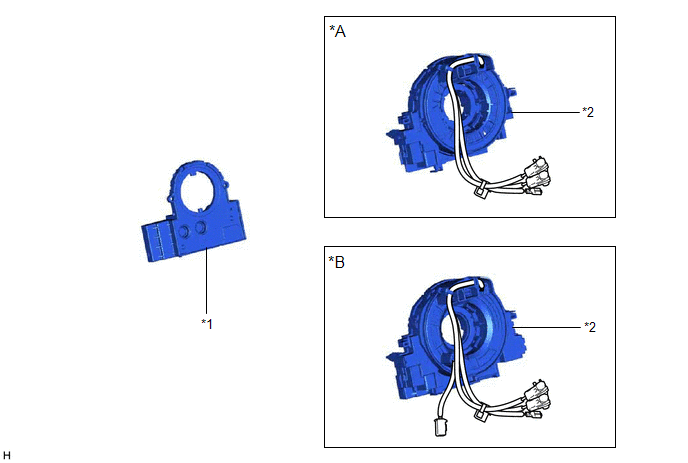

ILLUSTRATION

*A

w/o Heated Steering Wheel System

*B

w/ Heated Steering Wheel System

*1

STEERING SENSOR

*2

SPIRAL CABLE SUB-ASSEMBLY

    Steering Angle Sensor

    Installation
