Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

A lock pin is installed to a new steering sensor. Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.

PROCEDURE

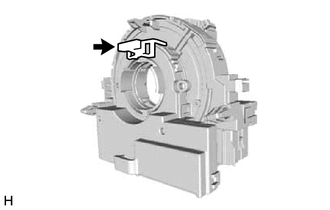

1. INSPECT SPIRAL CABLE SUB-ASSEMBLY

Click here

2. INSTALL STEERING SENSOR

(a) Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.

NOTICE:

  • Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
  • Do not damage the pins of the spiral cable sub-assembly and guides of the steering sensor.
  • The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.

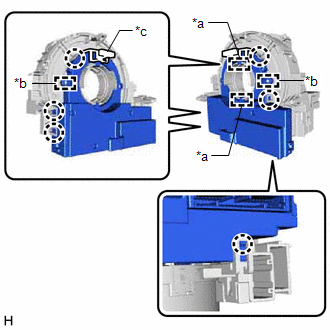

*a

Guide

*b

Pin

*c

Lock Pin

(b) Remove the lock pin from the steering sensor.

3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here
