Toyota Avalon Service & Repair Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT SHIFT LEVER POSITION SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

7 (+B) - 3 (PR)

Shift lever in P

Below 1 Ω

7 (+B) - 4 (PNB)

Below 1 Ω

7 (+B) - 8 (P)

Below 1 Ω

7 (+B) - 1 (DB1), 2 (N), 6 (DB2) or 9 (R)

Shift lever in P

10 kΩ or higher

7 (+B) - 3 (PR)

Shift lever in R

Below 1 Ω

7 (+B) - 9 (R)

Below 1 Ω

7 (+B) - 1 (DB1), 2 (N), 4 (PNB), 6 (DB2) or 8 (P)

Shift lever in R

10 kΩ or higher

7 (+B) - 2 (N)

Shift lever in N

Below 1 Ω

7 (+B) - 4 (PNB)

Below 1 Ω

7 (+B) - 1 (DB1), 3 (PR), 6 (DB2), 8 (P) or 9 (R)

Shift lever in N

10 kΩ or higher

7 (+B) - 1 (DB1)

Shift lever in D or S

Below 1 Ω

7 (+B) - 6 (DB2)

Below 1 Ω

7 (+B) - 2 (N), 3 (PR), 4 (PNB), 8 (P) or 9 (R)

Shift lever in D or S

10 kΩ or higher

HINT:

The shift lever position sensor connector (shift lever position sensor side) does not have a terminal 5.

If the result is not as specified, replace the shift lever position sensor.

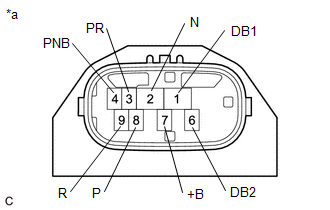

*a

Component without harness connected

(Shift Lever Position Sensor)
