Toyota Avalon Service & Repair Manual: Components

COMPONENTS

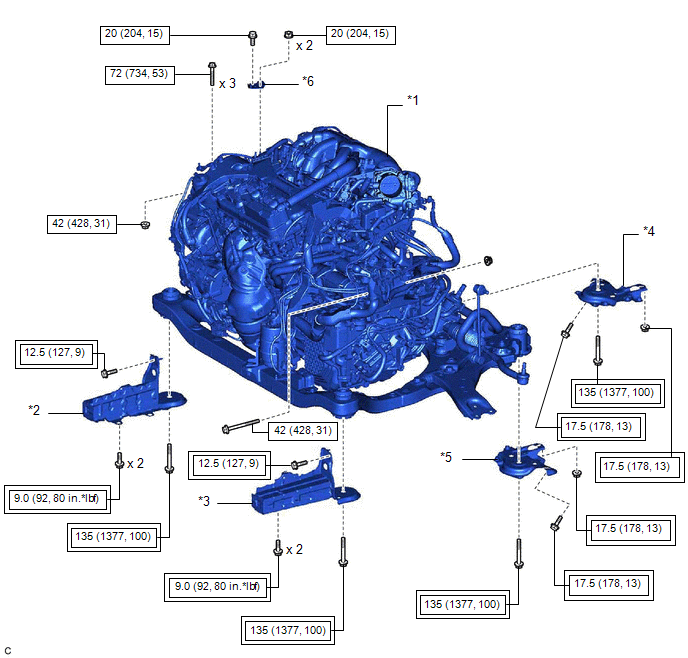

ILLUSTRATION

*1

ENGINE ASSEMBLY WITH TRANSAXLE

*2

FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

*3

FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

*4

FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH

*5

FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH

*6

NO. 2 ENGINE MOUNTING STAY RH

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

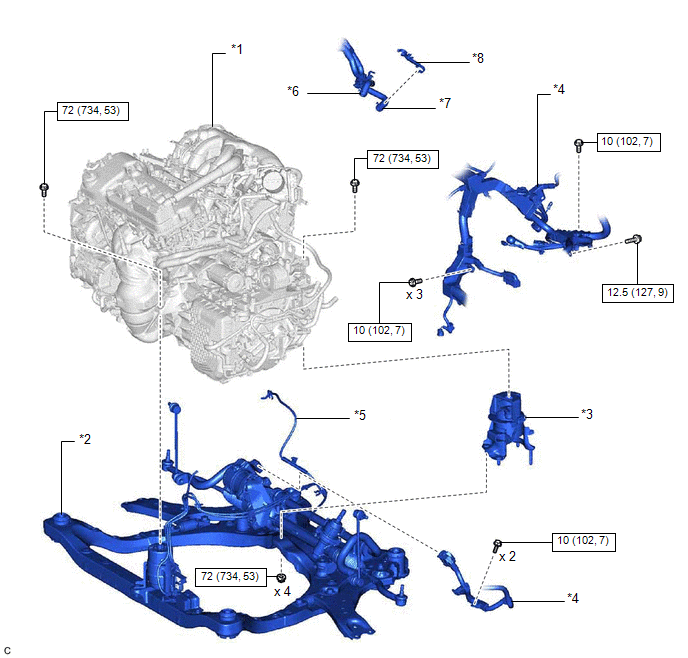

ILLUSTRATION

*1

ENGINE ASSEMBLY WITH TRANSAXLE

*2

FRONT FRAME ASSEMBLY

*3

REAR ENGINE MOUNTING INSULATOR

*4

WIRE HARNESS

*5

VACUUM HOSE

*6

NO. 1 WATER BY-PASS HOSE

*7

WATER BY-PASS HOSE ASSEMBLY

*8

TRANSMISSION BREATHER CLAMP

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

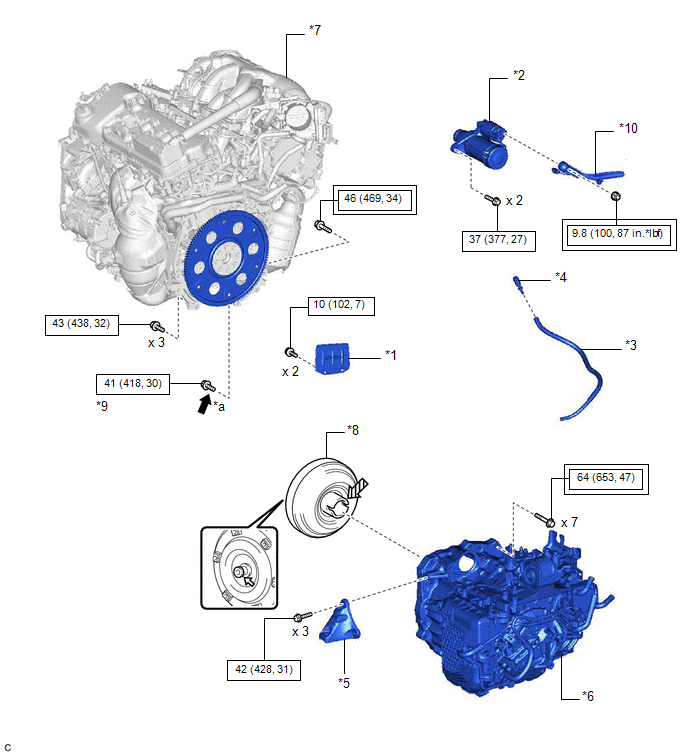

ILLUSTRATION

*1

FLYWHEEL HOUSING UNDER COVER

*2

STARTER ASSEMBLY

*3

BREATHER PLUG HOSE

*4

BREATHER PLUG SUB-ASSEMBLY

*5

FRONT ENGINE MOUNTING BRACKET

*6

AUTOMATIC TRANSAXLE ASSEMBLY

*7

ENGINE ASSEMBLY

*8

TORQUE CONVERTER ASSEMBLY

*9

DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

*10

WIRE HARNESS

*a

BLACK COLOR: x 1

SILVER COLOR: x 5

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Toyota Genuine Clutch Spline Grease or equivalent

MP grease

Precoated part

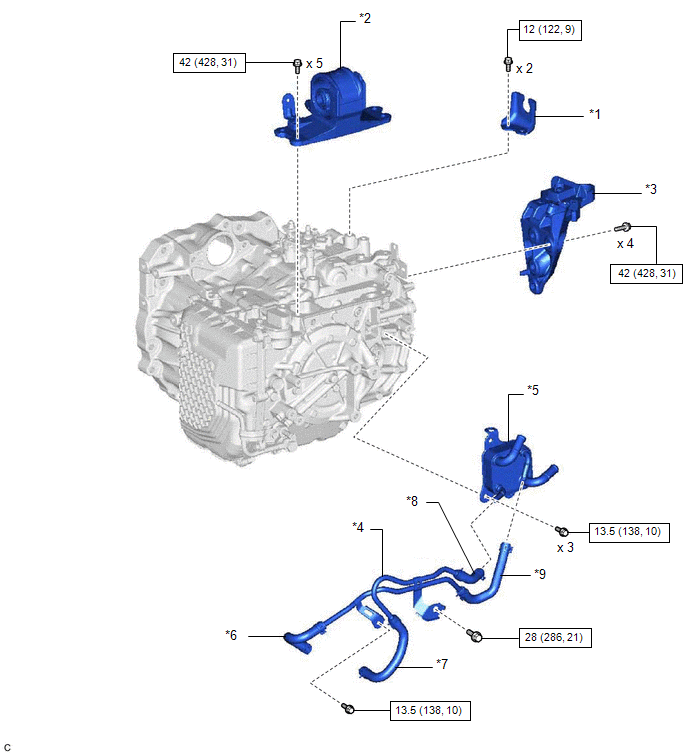

ILLUSTRATION

*1

NO. 1 TRANSMISSION CONTROL CABLE BRACKET

*2

ENGINE MOUNTING INSULATOR LH

*3

REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY

*4

NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE

*5

TRANSMISSION OIL COOLER

*6

OUTLET NO. 1 OIL COOLER HOSE

*7

INLET NO. 1 OIL COOLER HOSE

*8

INLET NO. 2 OIL COOLER HOSE

*9

OUTLET NO. 2 OIL COOLER HOSE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

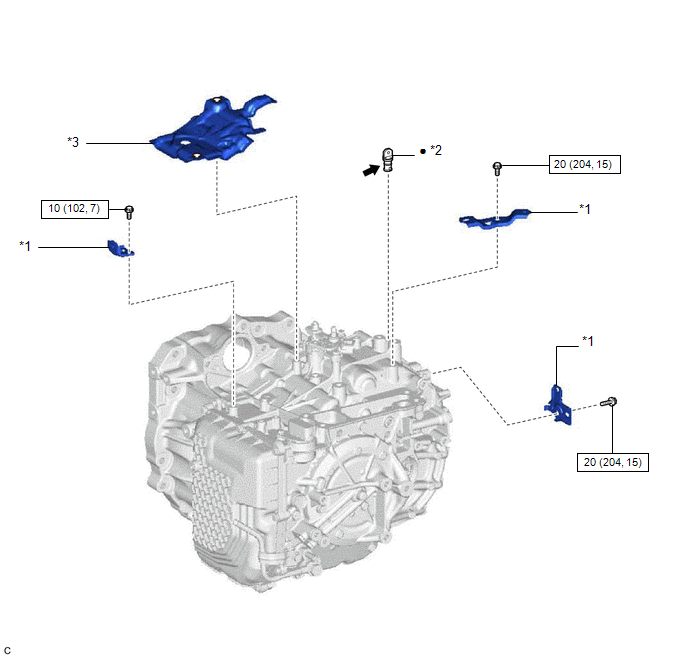

ILLUSTRATION

*1

WIRE HARNESS CLAMP BRACKET

*2

TRANSMISSION CASE PLUG ASSEMBLY

*3

AUTOMATIC TRANSMISSION CASE COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Genuine ATF WS

-

-

    Automatic Transaxle Assembly

    Installation
