DESCRIPTION

The ECM controls the solenoid (SLU) valve using a predetermined current, and performs lock-up and flex lock-up control.

The ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical malfunctions of the solenoid (SLU) valve, transmission valve body assembly and torque converter assembly.

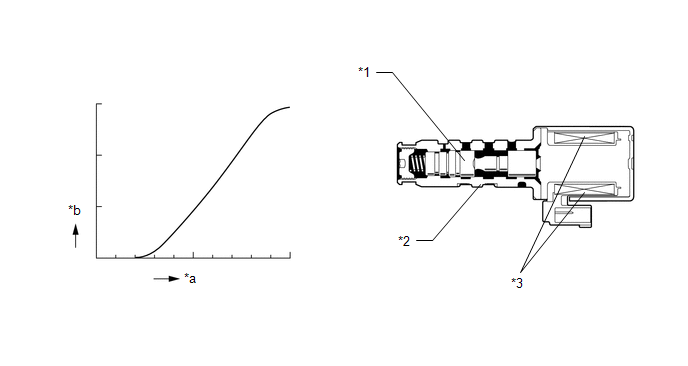

*1

Spool Valve

*2

Sleeve

*3

Solenoid Coil

-

-

*a

Current

*b

Hydraulic Pressure

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P27567F

Torque Converter Clutch Pressure Control Solenoid Control Actuator Stuck Off

All of the following conditions are met (2-trip detection logic):

  • Engine coolant temperature is 40°C (104°F) or higher.
  • ATF temperature is -10°C (14°F) or higher.
  • The vehicle is being driven with the shift lever in D.
  • No malfunctions are detected in the solenoid (SL1, SL2, SL3, SL4, SL5, SL6, SL, SLU and SLT) valves, transmission revolution sensors (NT and NC), coolant temperature sensor, oil temperature sensor, knock sensor, crankshaft position sensor circuits, electronic throttle or CAN communication system.
  • Any of the following conditions are met:
    • When the ECM sends a lock-up OFF request, the difference between the input turbine speed (NT) and the engine speed (NE) is less than 35 rpm for 1.8 seconds or more.
    • When the ECM sends a lock-up ON request, the difference between the input turbine speed (NT) and the engine speed (NE) is 70 rpm or more for 3.5 seconds or more.
  • Solenoid (SLU) valve
  • Transmission valve body assembly
  • Torque converter assembly
  • Automatic transaxle assembly

Comes on

DTC stored

SAE Code:

P2757

DTC Detection Condition Patterns:


Vehicle Condition

Pattern 1

Pattern 2

Diagnostic Condition

Engine coolant temperature is 40°C (104°F) or higher.

ATF temperature is -10°C (14°F) or higher.

The vehicle is being driven with the shift lever in D.

No malfunctions are detected in the solenoid (SL1, SL2, SL3, SL4, SL5, SL6, SL, SLU and SLT) valves, transmission revolution sensors (NT and NC), coolant temperature sensor, oil temperature sensor, knock sensor, crankshaft position sensor circuits, electronic throttle or CAN communication system.

Malfunction Condition

When the ECM sends a lock-up OFF request, the difference between the input turbine speed (NT) and the engine speed (NE) is less than 35 rpm.

-

When the ECM sends a lock-up ON request, the difference between the input turbine speed (NT) and the engine speed (NE) is 70 rpm or more.

-

Duration

1.8 seconds or more

3.5 seconds or more

Detection Logic

2-trip detection logic

2-trip detection logic

HINT:

This DTC is stored when either of the above detection patterns is met.

MONITOR DESCRIPTION

Torque converter lock-up is controlled by the ECM based on the transmission revolution sensor (NT and NC), engine speed, engine load, engine temperature, vehicle speed, ATF temperature and gear selection signals. The ECM determines the lock-up status of the torque converter assembly by comparing the engine speed (NE) to the transmission revolution sensor (NT) signal. The ECM calculates the actual gear by comparing the transmission revolution sensor (NT) signal to the transmission revolution sensor (NC) signal. When conditions are appropriate, the ECM requests "lock-up" by applying voltage to the solenoid (SLU) valve. When the solenoid (SLU) valve is turned on, pressure is applied to the lock-up relay valve and locks the torque converter assembly.

If the ECM does not detect lock-up after lock-up has been requested or if it detects lock-up when it is not requested, it interprets this as a malfunction of the solenoid (SLU) valve, illuminates the MIL and stores this DTC.

HINT:

Example:

When any of the following is met, the system judges it as a malfunction.

  • There is a difference in speed between the input side (engine speed) and output side (input turbine speed) of the torque converter assembly when the ECM commands lock-up. (Engine speed is at least 70 rpm more than input turbine speed.)
  • There is no difference in speed between the input side (engine speed) and output side (input turbine speed) of the torque converter assembly when the ECM commands lock-up off. (The difference between engine speed and input turbine speed is less than 35 rpm.)

MONITOR STRATEGY

Related DTCs

P2757:

Solenoid (SLU) valve/OFF malfunction

Solenoid (SLU) valve/ON malfunction

Required sensors/components

Solenoid (SLU) valve

Frequency of operation

Continuous

Duration

OFF malfunction: 3.5 sec.

ON malfunction (A): 1.8 sec.

ON malfunction (B): 0.5 sec.

ON malfunction (C): -

MIL operation

2 driving cycles

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

The monitor will run whenever the following DTCs are not stored

P0717, P07BF, P07C0 (Turbine speed sensor circuit)

P0793, P07C5, P07C6 (Intermediate shaft speed sensor circuit)

P0962, P0963 (Solenoid (SL1) valve circuit)

P0966, P0967 (Solenoid (SL2) valve circuit)

P0970, P0971 (Solenoid (SL3) valve circuit)

P2814, P2815 (Solenoid (SL4) valve circuit)

P281D, P281E (Solenoid (SL5) valve circuit)

P08C1, P08C2 (Solenoid (SL6) valve circuit)

P2763, P2764 (Solenoid (SLU) valve circuit)

P2769, P2770 (Solenoid (SL) valve circuit)

P2720, P2721 (Solenoid (SLT) valve circuit)

P0712, P0713 (ATF temperature sensor circuit (TFT sensor))

P0117, P0118 (ECT sensor circuit)

P0335, P0337, P0338 (Crankshaft position sensor circuit)

P0327, P0328, P0332, P0333 (KCS sensor circuit)

P0121, P0122, P0123, P0222, P0223, P0604, P0606, P060A, P060B, P060D, P060E, P061E, P0657, P0658, P2102, P2103, P2111, P2112, P2119, P2135 ((ETCS) Electronic throttle control system)

U0100 (CAN communication system)

Shift position

"D", "not R" and "not N"

Elapsed time since shift lever moved from "N" to "D"

4 sec. or more

ATF temperature

-10°C (14°F) or more

Engine

Starting

OFF malfunction

Fail-safe function does not operate due to the following malfunctions:

-

Solenoid (SLT) valve

ON malfunction (P2714)

Solenoid (SLU) valve

OFF or ON malfunction (P2757)

Solenoid (SL) valve

ON malfunction (P0741)

ECT

40°C (104°F) or more

Spark advance from MAX. retard timing by KCS control

0 °CA or more

ECM selected gear

Actual gear

Vehicle speed

10 km/h (6.2 mph) or more

ECM commanded solenoid (SL) valve state

OFF

ECM commanded pressure value using solenoid (SLU) valve

(3 sec. or more)

-

- when A/C off

515 kPa (5.3 kgf/cm2, 75 psi) or more

- when A/C on

515 kPa (5.3 kgf/cm2, 75 psi) or more

ON malfunction (A)

Fail-safe function does not operate due to the following malfunctions:

-

Solenoid (SLT) valve

ON malfunction (P2714)

Solenoid (SLU) valve

OFF or ON malfunction (P2757)

Solenoid (SL) valve

ON malfunction (P0741)

ECT

40°C (104°F) or more

Spark advance from MAX. retard timing by KCS control

0 °CA or more

ECM selected gear

Actual gear

Vehicle speed

10 km/h (6.2 mph) or more and less than 60 km/h (37.3 mph)

Quick engagement detection

Fixed

ECM commanded pressure value using solenoid (SLU) valve

0 kPa (0 kgf/cm2, 0 psi) or less

Time since ECM commanded solenoid (SL) valve OFF

0.15 sec. or more

Throttle valve opening angle

5% or more at turbine speed 3000 rpm

(Conditions vary with turbine speed)

Calculated load value

-

- when A/C off

15% or more at turbine speed 2000 rpm

(Conditions vary with turbine speed)

- when A/C on

20% or more at turbine speed 2000 rpm

(Conditions vary with turbine speed)

ON malfunction (B)

Fail-safe function does not operate due to the following malfunctions:

-

Solenoid (SL1) valve

OFF or ON malfunction (P0746)

Solenoid (SL2) valve

OFF or ON malfunction (P0776)

Solenoid (SL3) valve

OFF or ON malfunction (P0796)

Solenoid (SL4) valve

OFF or ON malfunction (P2808)

Solenoid (SL5) valve

OFF or ON malfunction (P2817)

Solenoid (SL6) valve

OFF or ON malfunction (P08BB)

Solenoid (SLT) valve

OFF malfunction (P2714)

Solenoid (SLU) valve

ON malfunction (P2757)

Solenoid (SL) valve

ON malfunction (P0741)

All shift solenoid

Not being stopped

Neutral command flag

Not met

Vehicle stop check

Fixed

ECM selected gear

3rd, 4th, 6th or 7th

ON malfunction (C)

ECM selected gear

3rd, 4th, 6th or 7th

HINT:

Actual gear:
  • 1st gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    4.682 or more and 9.515 or less

    (When output speed less than 50 rpm)

    (b) NT-NO x 1st gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 50 rpm or more)

    2nd gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    2.900 or more and 3.467 or less

    (When output speed less than 180 rpm)

    (b) NT-NO x 2nd gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 180 rpm or more)

    3rd gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    1.910 or more and 2.189 or less

    (When output speed less than 350 rpm)

    (b) NT-NO x 3rd gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 350 rpm or more)

    4th gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    1.401 or more and 1.581 or less

    (When output speed less than 350 rpm)

    (b) NT-NO x 4th gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 350 rpm or more)

    5th gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    1.142 or more and 1.323 or less

    (When output speed less than 550 rpm)

    (b) NT-NO x 5th gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 550 rpm or more)

    6th gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    0.934 or more and 1.065 or less

    (When output speed less than 750 rpm)

    (b) NT-NO x 6th gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 750 rpm or more)

    7th gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    0.737 or more and 0.867 or less

    (When output speed less than 750 rpm)

    (b) NT-NO x 7th gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 750 rpm or more)

    8th gear

    Any of the following conditions are met

    (a) or (b)

    (a) Turbine speed/Output speed (NT/NO)

    0.621 or more and 0.725 or less

    (When output speed less than 950 rpm)

    (b) NT-NO x 8th gear ratio

    -50 rpm or more and 50 rpm or less

    (When output speed 950 rpm or more)

Quick engagement detection:

l Engine speed - Turbine speed l

Less than 50 rpm

Time since ECM commanded solenoid (SL) valve OFF

Less than 0.28 sec.

Vehicle stop check:

Vehicle speed

0 km/h (0 mph) or less

Neutral state flag:

Turbine speed - output speed x (ECM selected gear)

1000 rpm or more

Neutral command flag:

Engine speed

7200 rpm or more

Turbine speed

7200 rpm or more

  • Any of the following conditions are met: Condition (a) or (b)
    • Condition (a)

      ECM selected gear

      6th or 7th or 8th

      Output speed x 5th gear ratio

      7200 rpm or more

      Condition (b)

      ECM selected gear

      4th or 5th

      Output speed x 3rd gear ratio

      7200 rpm or more

TYPICAL MALFUNCTION THRESHOLDS

OFF malfunction

Engine speed - Turbine speed

70 rpm or more

ON malfunction
  • Any of the following conditions are met: ON malfunction (A), (B) or (C) ON malfunction (A)

    l Engine speed - Turbine speed l

    Less than 35 rpm

    ON malfunction (B)

    Neutral state flag

    ON

    ON malfunction (C)

    Solenoid (SLT) valve

    ON malfunction

Neutral state flag:

Turbine speed - output speed x (ECM selected gear)

1000 rpm or more

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the engine switch off and wait for 2 minutes or more.
  5. Turn the engine switch on (IG) and turn the Techstream on.
  6. Start the engine.
  7. Perform the Lock-up Function inspection in Road Test. [*1]

    Click here

    HINT:

    [*1] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  8. Stop the vehicle.
  9. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  10. Input the DTC: P27567F.
  11. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the automatic transaxle are replaced.

    Click here

PROCEDURE

1.

CHECK DTC OUTPUT (IN ADDITION TO DTC P27567F)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Transmission / Trouble Codes.

Powertrain > Transmission > Trouble Codes

(e) Read the DTCs using the Techstream.

Result

Proceed to

Only DTC P27567F is output

A

DTC P27567F and other DTCs are output

B

HINT:

  • If any DTCs other than P27567F are output, perform troubleshooting for those DTCs first.
  • If a solenoid valve is stuck ON or OFF, DTCs for several solenoid valves including the malfunctioning solenoid valve will be stored.
B

GO TO DTC CHART

A

2.

INSPECT SOLENOID (SLU) VALVE

(a) Remove the solenoid (SLU) valve.

Click here

*a

Component without harness connected

(Solenoid (SLU) Valve)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Solenoid (SLU) valve connector terminal 1 - Terminal 2

20°C (68°F)

5.0 to 5.6 Ω

(c) Connect a positive (+) lead from the battery with a 21 W bulb to terminal 1 and a negative (-) lead to terminal 2 of the solenoid valve connector. Check that the valve moves and makes an operating sound.

OK:

Valve moves and makes an operating sound.

NG

REPLACE SOLENOID (SLU) VALVE

OK

3.

INSPECT TRANSMISSION VALVE BODY ASSEMBLY

(a) Inspect the transmission valve body assembly.

Click here

OK:

There is no foreign matter on each valve and they operate smoothly.

NG

REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY

OK

4.

INSPECT TORQUE CONVERTER ASSEMBLY

(a) Inspect the torque converter assembly.

Click here

OK:

The torque converter assembly is normal.

NG

REPAIR OR REPLACE TORQUE CONVERTER ASSEMBLY

OK

5.

REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSEMBLY

(a) Repair or replace the automatic transaxle assembly.

Click here

NEXT

PERFORM REGISTRATION

    Pressure Control Solenoid "D" Actuator Stuck Off (P27137F)

    Pressure Control Solenoid "G" Actuator Stuck Off (P28077F)

    See More:

    Toyota Avalon Service & Repair Manual > Meter / Gauge System(for Hv Model): Turn Signal/Hazard Flasher Circuit Current Above Threshold (B150819)
    DESCRIPTION This DTC is stored when the combination meter assembly detects a short in a turn signal light circuit. HINT: If there is a short in a turn signal light circuit, all of the turn signal lights in that circuit will not blink. DTC No. Detection Item DTC Detection Condition Trouble Area Memor ...

    Toyota Avalon Owners Manual

    Toyota Avalon Service & Repair Manual

    © 2021 Copyright www.tavalon.net
    0.0276
