Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

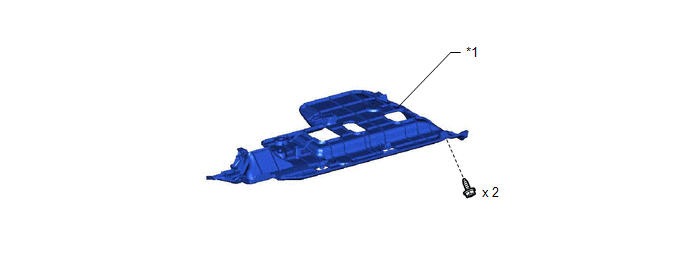

ILLUSTRATION

*1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

-

-

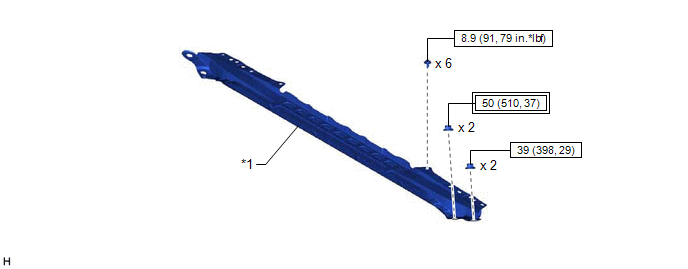

ILLUSTRATION

*1

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

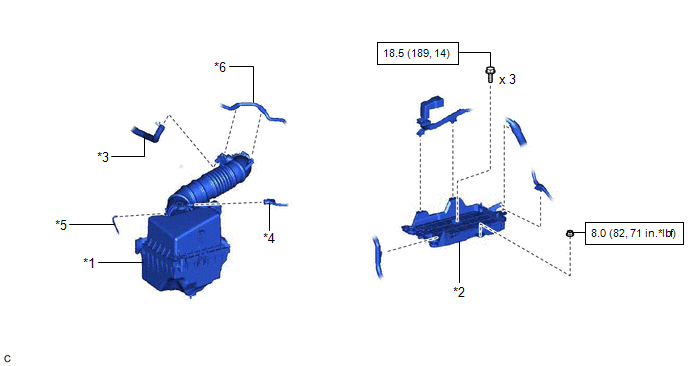

ILLUSTRATION

*1

AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

*2

BATTERY CLAMP SUB-ASSEMBLY

*3

NO. 2 VENTILATION HOSE

*4

MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR

*5

VACUUM HOSE

*6

NO. 1 FUEL VAPOR FEED HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

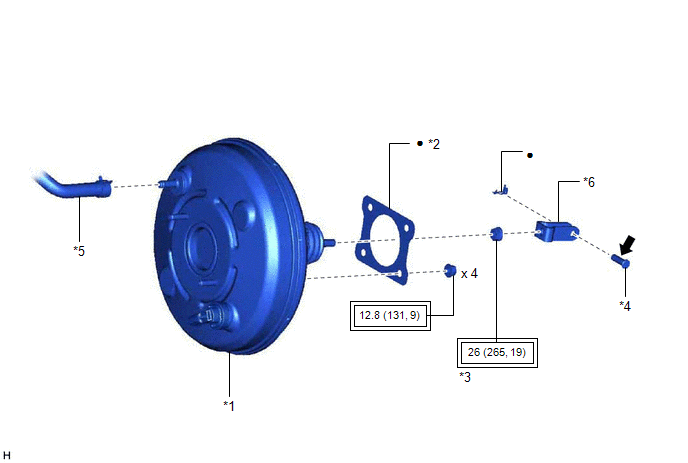

ILLUSTRATION

*1

BRAKE BOOSTER ASSEMBLY

*2

BRAKE BOOSTER GASKET

*3

LOCK NUT

*4

PUSH ROD PIN

*5

UNION TO CHECK VALVE HOSE

*6

BRAKE MASTER CYLINDER PUSH ROD CLEVIS

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

Lithium soap base glycol grease

-

-

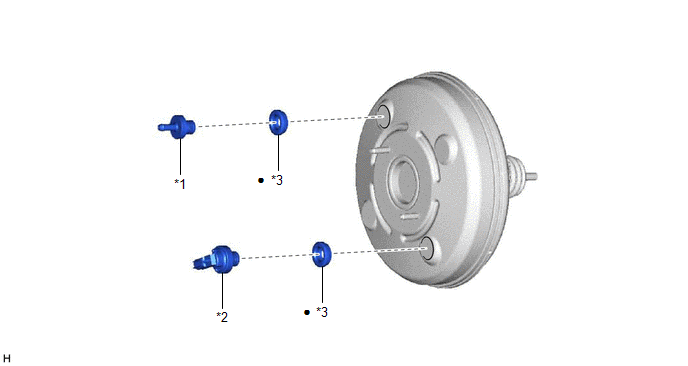

ILLUSTRATION

*1

BRAKE VACUUM CHECK VALVE ASSEMBLY

*2

VACUUM WARNING SWITCH ASSEMBLY

*3

CHECK VALVE GROMMET

-

-

Non-reusable part

-

-

    Brake Booster(for Gasoline Model)

    Disassembly
