Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL BRAKE BOOSTER GASKET

(a) Install a new brake booster gasket to the brake booster assembly.

2. INSTALL BRAKE BOOSTER ASSEMBLY

(a) Temporarily install the brake booster assembly to the vehicle body.

NOTICE:

Do not apply excessive force to the brake lines.

(b) Temporarily install the lock nut and brake master cylinder push rod clevis to the brake booster assembly.

NOTICE:

Fully tighten the lock nut when adjusting the brake pedal height.

(c) Install the 4 nuts to secure the brake booster assembly.

Torque:

12.8 N·m {131 kgf·cm, 9 ft·lbf}

(d) Connect the connector to the vacuum warning switch assembly.

3. INSTALL PUSH ROD PIN

Click here

4. CONNECT UNION TO CHECK VALVE HOSE

(a) Connect the union to check valve hose to the brake booster assembly, and slide the clip to secure it.

5. INSTALL BATTERY CLAMP SUB-ASSEMBLY

(a) Install the battery clamp sub-assembly with the 3 bolts and nut.

Torque:

Bolt :

18.5 N·m {189 kgf·cm, 14 ft·lbf}

Nut :

8.0 N·m {82 kgf·cm, 71 in·lbf}

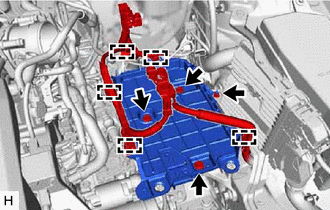

(b) Engage the 5 clamps to the battery clamp sub-assembly.

6. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Click here

7. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

Click here

8. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Click here

9. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

10. INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY

Click here

11. INSPECT AND ADJUST BRAKE PEDAL

Click here

    Inspection

    On-vehicle Inspection
