REASSEMBLY

PROCEDURE

1. INSTALL VACUUM WARNING SWITCH ASSEMBLY

(a) Install a new check valve grommet to the brake booster assembly.

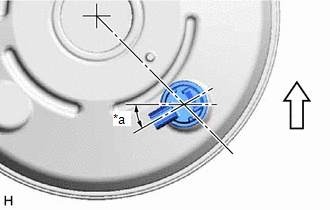

(b) Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

*a

30° +/- 20°

Up

2. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

(a) Install a new check valve grommet to the brake booster assembly.

(b) Install the brake vacuum check valve assembly to the brake booster assembly.
