Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

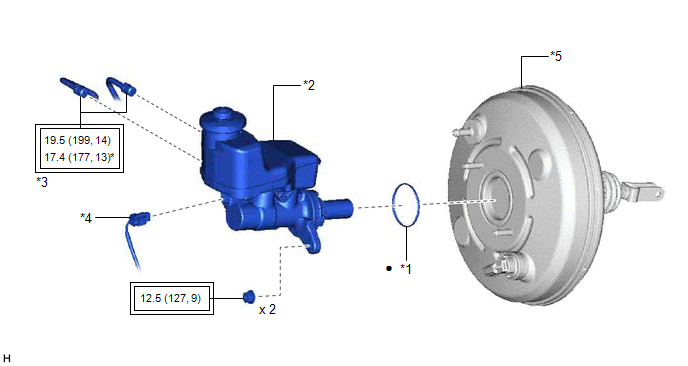

ILLUSTRATION

*1

BRAKE MASTER CYLINDER O-RING

*2

BRAKE MASTER CYLINDER SUB-ASSEMBLY

*3

BRAKE LINE

*4

CONNECTOR

*5

BRAKE BOOSTER ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

Non-reusable part

-

-

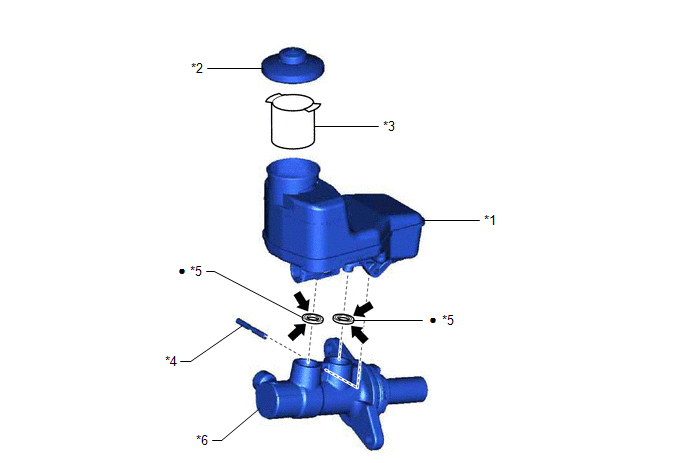

ILLUSTRATION

*1

BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

*2

BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

*3

BRAKE MASTER CYLINDER RESERVOIR STRAINER

*4

BRAKE MASTER CYLINDER STRAIGHT PIN

*5

MASTER CYLINDER RESERVOIR GROMMET

*6

BRAKE MASTER CYLINDER BODY

Non-reusable part

Lithium soap base glycol grease

    Brake Master Cylinder(for Gasoline Model)

    Disassembly
