Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT AND ADJUST BRAKE BOOSTER PUSH ROD

NOTICE:

Make the adjustment with no vacuum in the brake booster assembly. (Depress the brake pedal several times with the engine stopped.)

HINT:

  • Adjustment of the brake booster push rod is required when the brake master cylinder sub-assembly is replaced with a new one.
  • Adjustment is not necessary when the removed brake master cylinder sub-assembly is reused and the brake booster assembly is replaced with a new one.

(a) Apply chalk to the tip of the accessory tool.

HINT:

The accessory tool is included with a new brake master cylinder sub-assembly.

(b) Place the accessory tool on the brake booster assembly.

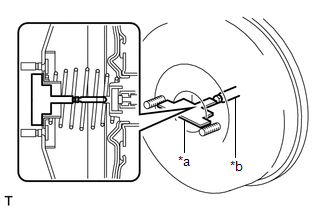

*a

Accessory Tool

*b

Brake Booster Push Rod

(c) Measure the clearance between the brake booster push rod and accessory tool.

Standard Clearance:

0 mm (0 in.)

Adjust the clearance in the following cases:

  • If there is clearance between the accessory tool and the shell of the brake booster (the accessory tool does not contact the body of the brake booster), the push rod is protruding too far.
  • If the chalk does not stick on the tip of the brake booster push rod, the push rod protrusion length is insufficient.

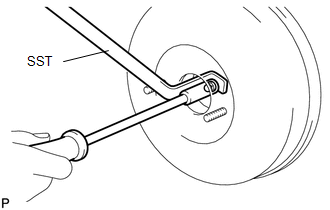

(d) If the clearance is not as specified, adjust the push rod length by holding the push rod using SST and turning the tip of the push rod using a 7 mm socket driver.

SST: 09737-00020

HINT:

Check the push rod clearance again after adjustment.

    Disassembly

    Installation
