Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

NOTICE:

DTCs may be stored during the inspection procedure. Be sure to clear the DTCs and check that no DTCs are output after the inspection is finished.

PROCEDURE

1. INSPECT PRESSURE SENSOR

(a) Check auxiliary battery voltage.

Standard Voltage:

11 to 14 V (while the power switch is off)

(b) Set a pedal effort gauge and SST, and connect the Techstream.

(1) Set a pedal effort gauge and SST.

SST: 09709-29018

09709-00060

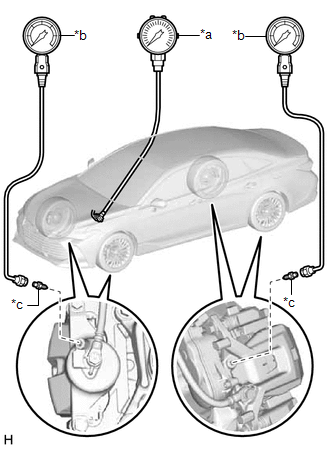

*a

Pedal Effort Gauge

*b

SST (LSPV Gauge)

*c

SST (No. 1 Nipple)

(2) Connect the Techstream to the DLC3 with the power switch off, the shift lever in P and the parking brake applied.

(3) Turn the power switch on (IG) and turn the Techstream on.

(4) Bleed air from SST (LSPV gauge).

Click here

(c) Inspect the reaction force pressure and servo pressure.

(1) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Reaction Force Pressure and Servo Pressure.

Chassis > ABS/VSC/TRAC > Data List

Tester Display

Reaction Force Pressure

Servo Pressure

(2) Check the value output from "Reaction Force Pressure" and "Servo Pressure" by depressing the brake pedal.

Standard Result:

Pedal Effort

Reaction Force Pressure

(MPa)

Servo Pressure

(MPa)

Front Right Wheel Hydraulic Pressure

Rear Left Wheel Hydraulic Pressure

50 N (5 kgf, 11.2 lbf)

0.04 to 0.84

3.42 to 4.02

1.42 to 5.42 MPa (14.4 to 55.2 kgf/cm2, 206 to 786 psi)

1.42 to 5.42 kPa (14.4 to 55.2 kgf/cm2, 206 to 786 psi)

100 N (10 kgf, 22.5 lbf)

0.66 to 1.46

5.98 to 6.58

3.98 to 7.98 MPa (40.5 to 81.3 kgf/cm2, 577 to 1157 psi)

3.98 to 7.98 kPa (40.5 to 81.3 kgf/cm2, 577 to 1157 psi)

150 N (15 kgf, 33.7 lbf)

1.28 to 2.08

8.55 to 9.15

6.55 to 10.55 MPa (66.8 to 107.5 kgf/cm2, 950 to 1530 psi)

6.55 to 10.55 kPa (66.8 to 107.5 kgf/cm2, 950 to 1530 psi)

200 N (20 kgf, 45.0 lbf)

1.90 to 2.70

10.57 to 11.17

8.57 to 10.8 MPa (87.5 to 110.2 kgf/cm2, 1243 to 1566 psi)

8.57 to 10.8 kPa (87.5 to 110.2 kgf/cm2, 1243 to 1566 psi)

Standard Result:

Pedal Effort

Reaction Force Pressure

(MPa)

Servo Pressure

(MPa)

Front Left Wheel Hydraulic Pressure

Rear Right Wheel Hydraulic Pressure

50 N (5 kgf, 11.2 lbf)

0.04 to 0.84

3.42 to 4.02

1.42 to 5.42 kPa (14.4 to 55.2 kgf/cm2, 206 to 786 psi)

1.42 to 5.42 kPa (14.4 to 55.2 kgf/cm2, 206 to 786 psi)

100 N (10 kgf, 22.5 lbf)

0.66 to 1.46

5.98 to 6.58

3.98 to 7.98 MPa (40.5 to 81.3 kgf/cm2, 577 to 1157 psi)

3.98 to 7.98 kPa (40.5 to 81.3 kgf/cm2, 577 to 1157 psi)

150 N (15 kgf, 33.7 lbf)

1.28 to 2.08

8.55 to 9.15

6.55 to 10.55 MPa (66.8 to 107.5 kgf/cm2, 950 to 1530 psi)

6.55 to 10.55 kPa (66.8 to 107.5 kgf/cm2, 950 to 1530 psi)

200 N (20 kgf, 45.0 lbf)

1.90 to 2.70

10.57 to 11.17

8.57 to 10.8 MPa (87.5 to 110.2 kgf/cm2, 1243 to 1566 psi)

8.57 to 10.8 kPa (87.5 to 110.2 kgf/cm2, 1243 to 1566 psi)

(d) Remove the pedal effort gauge and SST.

(1) Remove the pedal effort gauge and SST, and bleed the brake line.

Click here

(e) Inspect the accumulator pressure.

(1) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Accumulator Pressure and MT Voltage Value.

Chassis > ABS/VSC/TRAC > Data List

Tester Display

MT Voltage Value

Accumulator Pressure

(2) While fully depressing the brake pedal 4 or 5 times, check that the MT voltage value is 10 V or more once or more.

HINT:

Usually the MT voltage value is 0 V.

(3) After confirming that the booster pump motor stops, check the accumulator pressure.

Standard Result:

15 to 21 MPa

2. INSPECT BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

(a) Check auxiliary battery voltage.

Standard Voltage:

11 to 14 V (while the power switch is off)

(b) Set a pedal effort gauge and SST, and connect the Techstream.

(1) Set a pedal effort gauge and SST.

SST: 09709-29018

09709-00060

*a

Pedal Effort Gauge

*b

SST (LSPV Gauge)

*c

SST (No. 1 Nipple)

(2) Connect the Techstream to the DLC3 with the power switch off, the shift lever in P and the parking brake applied.

(3) Turn the power switch on (IG) and turn the Techstream on.

(4) Clear the DTCs.

Click here

(5) Bleed air from SST (LSPV gauge).

Click here

(c) Check operation without the brake booster.

(1) Inspect and adjust the brake pedal height.

Click here

(2) Adjust the brake fluid level of the reservoir so that it is between the MIN line and fluid level support line.

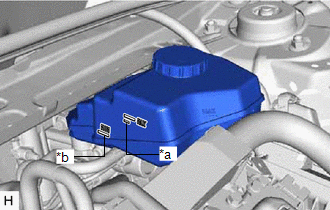

*a

Fluid Level Support Line

*b

MIN Line

(3) Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB (Electronically Controlled Brake system) Utility.

Chassis > ABS/VSC/TRAC > Utility

Tester Display

ECB Utility

(4) Select "Motor Invalid" on the "ECB (Electronically Controlled Brake system) Utility" screen.

(5) Perform "Motor Invalid" according to the display on the Techstream.

(6) Depress the brake pedal 40 times or more to return all the fluid in the accumulator back to the reservoir.

HINT:

A buzzer may sound due to low accumulator pressure. As this is not a malfunction, continue the procedure.

(7) Check that the brake pedal is firm.

(8) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Stroke Sensor and Stroke Sensor 2.

Chassis > ABS/VSC/TRAC > Data List

Tester Display

Stroke Sensor

Stroke Sensor2

(9) Check the values output from "Stroke Sensor" and "Stroke Sensor 2" by depressing the brake pedal.

Standard Result:

Pedal Effort

Stroke Sensor

(V)

Stroke Sensor 2

(V)

Front Right Wheel Hydraulic Pressure

Rear Left Wheel Hydraulic Pressure

200 N (20 kgf, 45.0 lbf)

1.52 to 2.22

2.78 to 3.48

0.04 to 2.04 MPa (0.36 to 20.76 kgf/cm2, 6 to 296 psi)

0.04 to 2.04 MPa (0.36 to 20.76 kgf/cm2, 6 to 296 psi)

500 N (51 kgf, 112.4 lbf)

1.81 to 2.51

2.49 to 3.19

2.06 to 4.06 MPa (21.0 to 41.4 kgf/cm2, 299 to 589 psi)

2.06 to 4.06 MPa (21.0 to 41.4 kgf/cm2, 299 to 589 psi)

Standard Result:

Pedal Effort

Stroke Sensor

(V)

Stroke Sensor 2

(V)

Front Left Wheel Hydraulic Pressure

Rear Right Wheel Hydraulic Pressure

200 N (20 kgf, 45.0 lbf)

1.52 to 2.22

2.78 to 3.48

0.04 to 2.04 MPa (0.36 to 20.76 kgf/cm2, 6 to 296 psi)

0.04 to 2.04 MPa (0.36 to 20.76 kgf/cm2, 6 to 296 psi)

500 N (51 kgf, 112.4 lbf)

1.81 to 2.51

2.49 to 3.19

2.06 to 4.06 MPa (21.0 to 41.4 kgf/cm2, 299 to 589 psi)

2.06 to 4.06 MPa (21.0 to 41.4 kgf/cm2, 299 to 589 psi)

(10) Remove the pedal effort gauge and SST, and bleed the brake system.

Click here

(11) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Accumulator Pressure, and check the output pressure.

Chassis > ABS/VSC/TRAC > Data List

Tester Display

Accumulator Pressure

Standard Result:

15 to 21 MPa

(12) Clear the DTCs.

Click here

3. INSPECT STROKE SIMULATOR

(a) Check auxiliary battery voltage.

Standard Voltage:

11 to 14 V (while the power switch is off)

(b) Connect the Techstream and set a pedal effort gauge.

(1) Set a pedal effort gauge.

(2) Connect the Techstream to the DLC3 with the power switch off, the shift lever in P and the parking brake applied.

(3) Turn the power switch on (IG) and turn the Techstream on.

(4) Clear the DTCs.

Click here

(c) Check operation with the brake booster.

(1) Turn the power switch on (IG).

(2) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Stroke Sensor and Stroke Sensor 2.

Chassis > ABS/VSC/TRAC > Data List

Tester Display

Stroke Sensor

Stroke Sensor2

(3) Depress the brake pedal 4 or 5 times.

(4) Check the values output from "Stroke Sensor" and "Stroke Sensor 2" by depressing the brake pedal.

Standard Voltage:

Pedal Effort

Stroke Sensor

(V)

Stroke Sensor 2

(V)

50 N (5 kgf, 11.2 lbf)

1.33 to 2.03

2.97 to 3.67

100 N (10 kgf, 22.5 lbf)

1.51 to 2.21

2.79 to 3.49

150 N (15 kgf, 33.7 lbf)

1.63 to 2.33

2.67 to 3.37

    Brake System(for Hv Model)

    Precaution
