Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL CHECK VALVE GROMMET

(a) Install a new check valve grommet to the brake booster assembly.

2. INSTALL VACUUM WARNING SWITCH ASSEMBLY

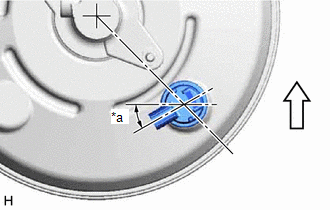

(a) Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

*a

30° +/- 20°

Up

(b) Connect the connector to the vacuum warning switch assembly.

3. INSTALL BATTERY

Click here

    Components

    On-vehicle Inspection
