Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

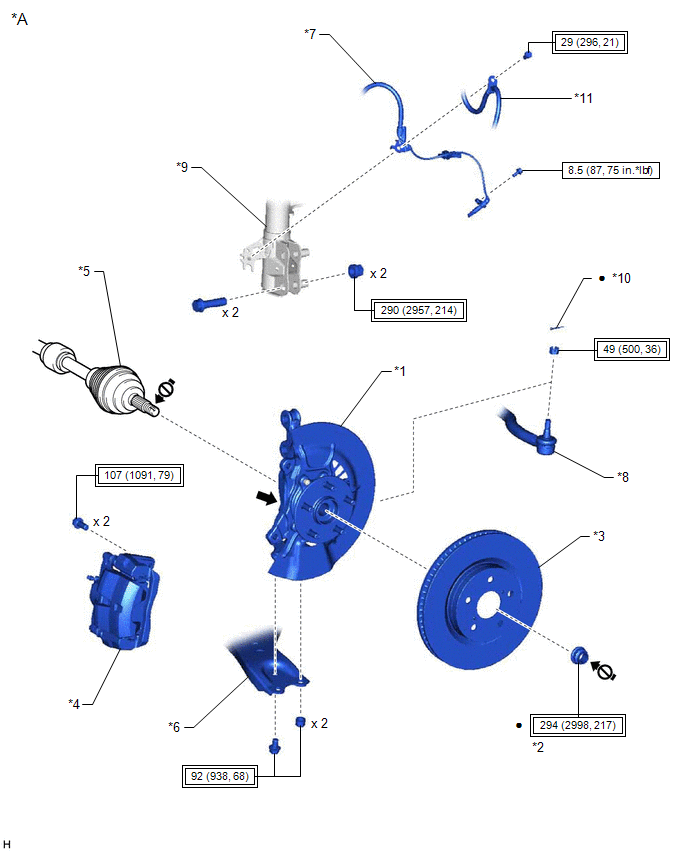

ILLUSTRATION

*A

w/o AVS

-

-

*1

FRONT AXLE ASSEMBLY

*2

FRONT AXLE SHAFT NUT

*3

FRONT DISC

*4

FRONT DISC BRAKE CALIPER ASSEMBLY

*5

FRONT DRIVE SHAFT ASSEMBLY

*6

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

*7

FRONT SPEED SENSOR

*8

TIE ROD ASSEMBLY

*9

FRONT SHOCK ABSORBER ASSEMBLY

*10

COTTER PIN

*11

FRONT FLEXIBLE HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Body Grease W

Do not apply lubricants to the threaded parts

-

-

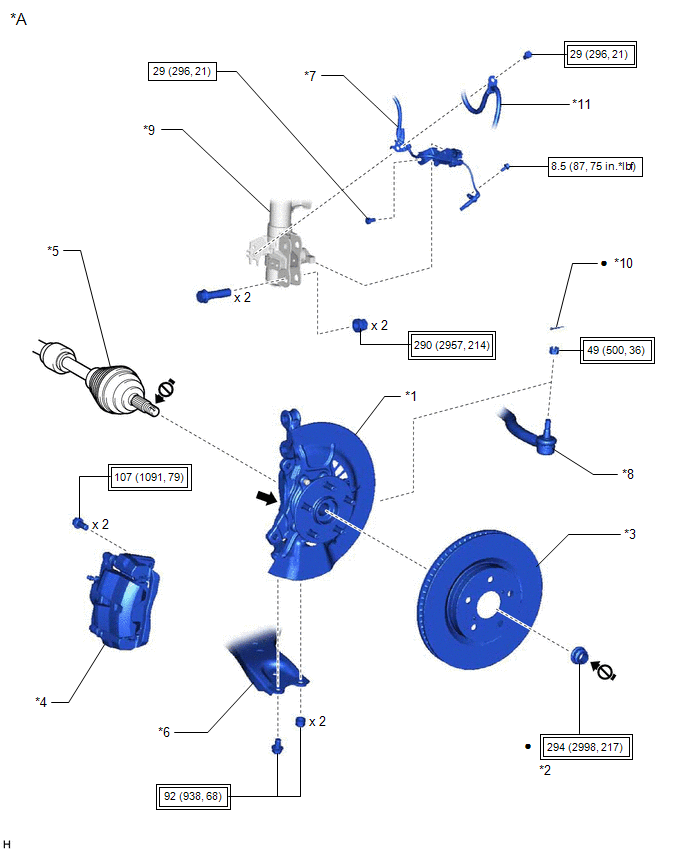

ILLUSTRATION

*A

w/ AVS

-

-

*1

FRONT AXLE ASSEMBLY

*2

FRONT AXLE SHAFT NUT

*3

FRONT DISC

*4

FRONT DISC BRAKE CALIPER ASSEMBLY

*5

FRONT DRIVE SHAFT ASSEMBLY

*6

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

*7

FRONT SPEED SENSOR

*8

TIE ROD ASSEMBLY

*9

FRONT SHOCK ABSORBER ASSEMBLY

*10

COTTER PIN

*11

FRONT FLEXIBLE HOSE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Body Grease W

Do not apply lubricants to the threaded parts

-

-

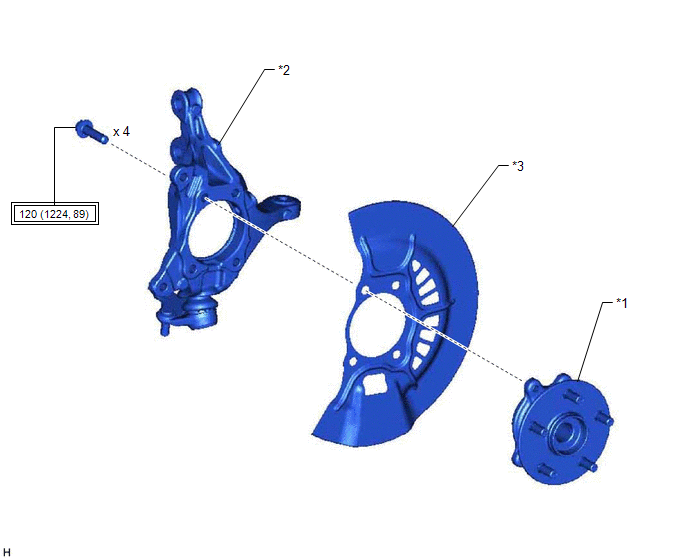

ILLUSTRATION

*1

FRONT AXLE HUB SUB-ASSEMBLY

*2

STEERING KNUCKLE

*3

FRONT DISC BRAKE DUST COVER

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

    Front Axle Hub

    Installation
