COMPONENTS

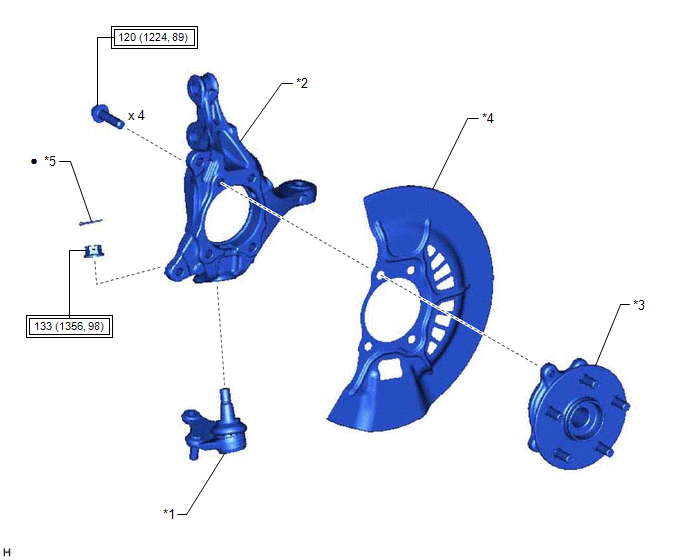

ILLUSTRATION

*1	FRONT LOWER BALL JOINT ASSEMBLY	*2	STEERING KNUCKLE
*3	FRONT AXLE HUB SUB-ASSEMBLY	*4	FRONT DISC BRAKE DUST COVER
*5	COTTER PIN	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	●	Non-reusable part
