COMPONENTS

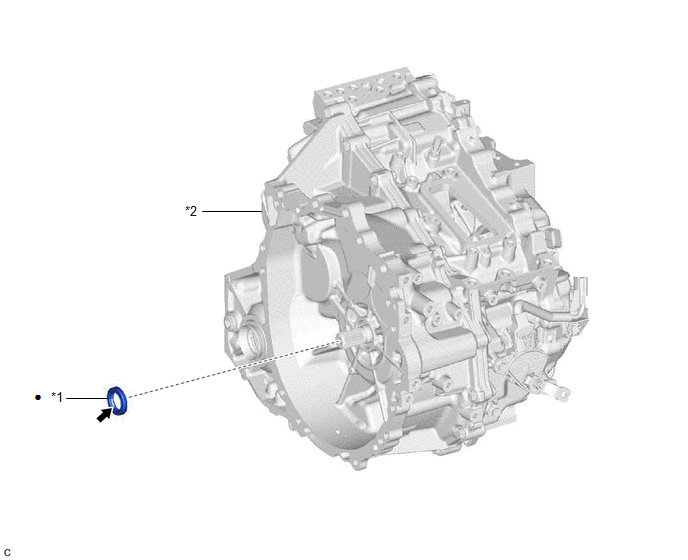

ILLUSTRATION

*1

INPUT SHAFT TYPE T OIL SEAL

*2

HYBRID VEHICLE TRANSAXLE ASSEMBLY

Non-reusable part

MP grease

    Input Shaft Oil Seal

    Replacement
