Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

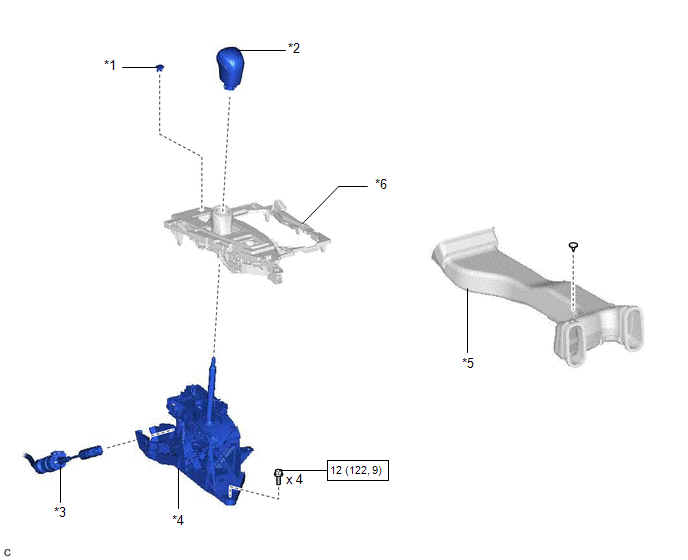

ILLUSTRATION

*1

SHIFT LOCK RELEASE BUTTON COVER

*2

SHIFT LEVER KNOB SUB-ASSEMBLY

*3

TRANSMISSION CONTROL CABLE ASSEMBLY

*4

TRANSMISSION FLOOR SHIFT ASSEMBLY

*5

NO. 1 CONSOLE BOX DUCT

*6

REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

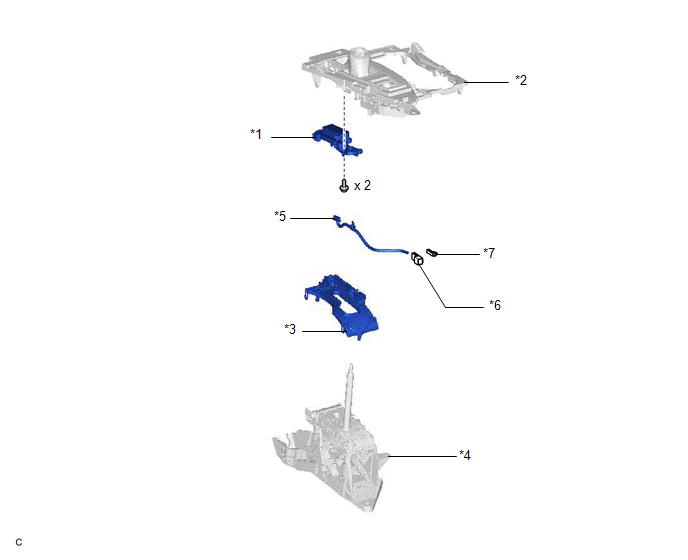

ILLUSTRATION

*1

SHIFT POSITION INDICATOR

*2

REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

*3

LOWER POSITION INDICATOR HOUSING

*4

SHIFT LOCK CONTROL UNIT ASSEMBLY

*5

INDICATOR LIGHT WIRE SUB-ASSEMBLY

*6

CONNECTOR HOUSING

*7

CLAMP

-

-

    Shift Lever

    Disassembly
