Toyota Avalon Service & Repair Manual: Parts Location

PARTS LOCATION

ILLUSTRATION

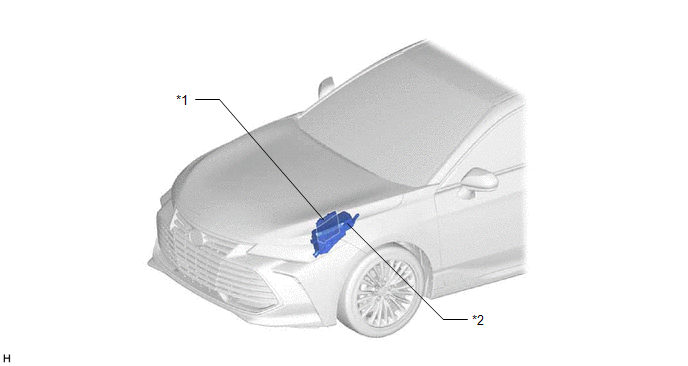

*1

ECM

*2

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- ST RELAY

- EFI-MAIN NO. 1 FUSE

- J/B-B FUSE

- ETCS FUSE

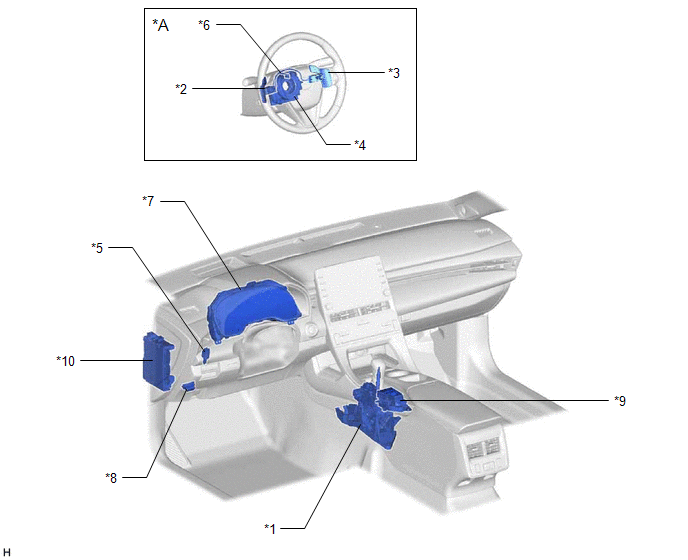

ILLUSTRATION

*A

w/ Shift Paddle Switch

-

-

*1

SHIFT LOCK CONTROL UNIT ASSEMBLY

- TRANSMISSION CONTROL SWITCH

*2

SHIFT PADDLE SWITCH LH (NO. 1 TRANSMISSION SHIFT SWITCH ASSEMBLY)

*3

SHIFT PADDLE SWITCH RH (NO. 2 TRANSMISSION SHIFT SWITCH ASSEMBLY)

*4

SPIRAL CABLE SUB-ASSEMBLY

*5

STOP LIGHT SWITCH ASSEMBLY

*6

NO. 1 SWITCH WIRE

*7

COMBINATION METER ASSEMBLY

*8

DLC3

*9

ELECTRIC PARKING BRAKE SWITCH ASSEMBLY (COMBINATION SWITCH)

- SPORT MODE SWITCH

- NORMAL MODE SWITCH

*10

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- STOP FUSE

- ECU-ACC FUSE

- BKUP LP FUSE

- ECU-IG1 NO. 3 FUSE

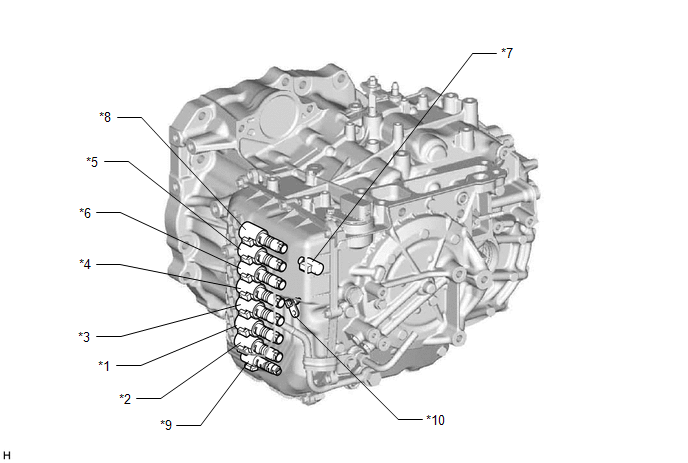

ILLUSTRATION

*1

SOLENOID (SL1) VALVE

*2

SOLENOID (SL2) VALVE

*3

SOLENOID (SL3) VALVE

*4

SOLENOID (SL4) VALVE

*5

SOLENOID (SL5) VALVE

*6

SOLENOID (SL6) VALVE

*7

SOLENOID (SL) VALVE

*8

SOLENOID (SLU) VALVE

*9

SOLENOID (SLT) VALVE

*10

TRANSMISSION WIRE

- ATF TEMPERATURE SENSOR

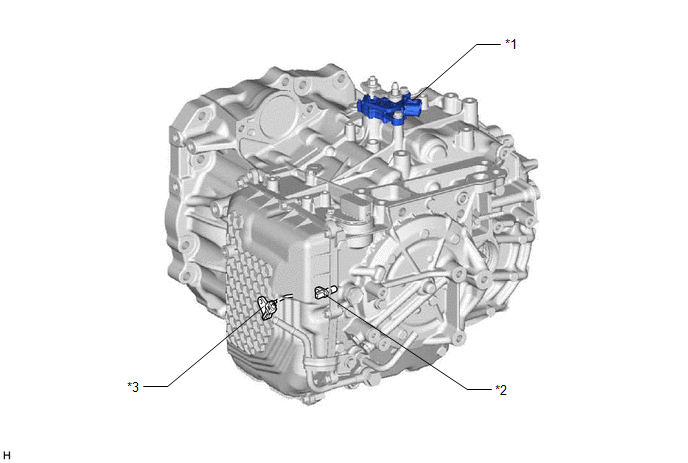

ILLUSTRATION

*1

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*2

TRANSMISSION REVOLUTION SENSOR (NT)

*3

TRANSMISSION REVOLUTION SENSOR (NC)

-

-

    Pressure Control Solenoid "H" Circuit Short to Ground or Open (P281614)
