COMPONENTS

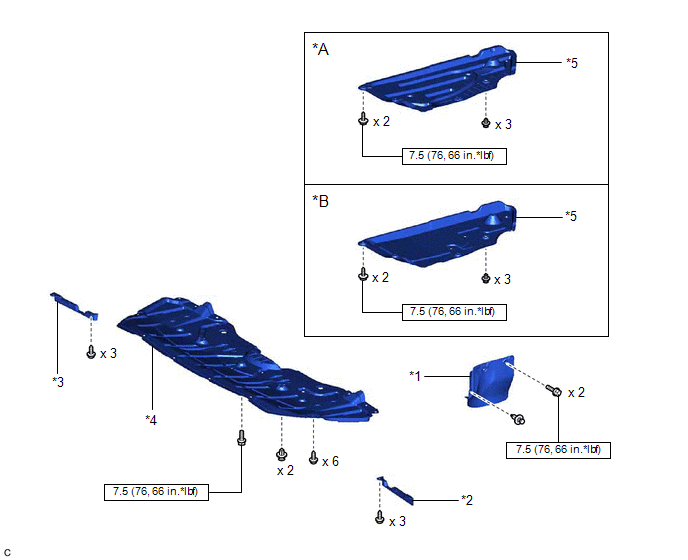

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT FENDER APRON SEAL LH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

FRONT WHEEL OPENING EXTENSION PAD RH

*4

NO. 1 ENGINE UNDER COVER

*5

REAR ENGINE UNDER COVER LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

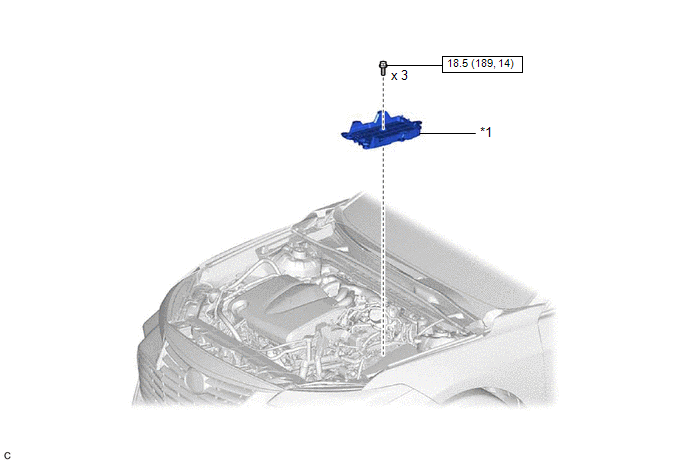

ILLUSTRATION

*1

BATTERY CLAMP SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

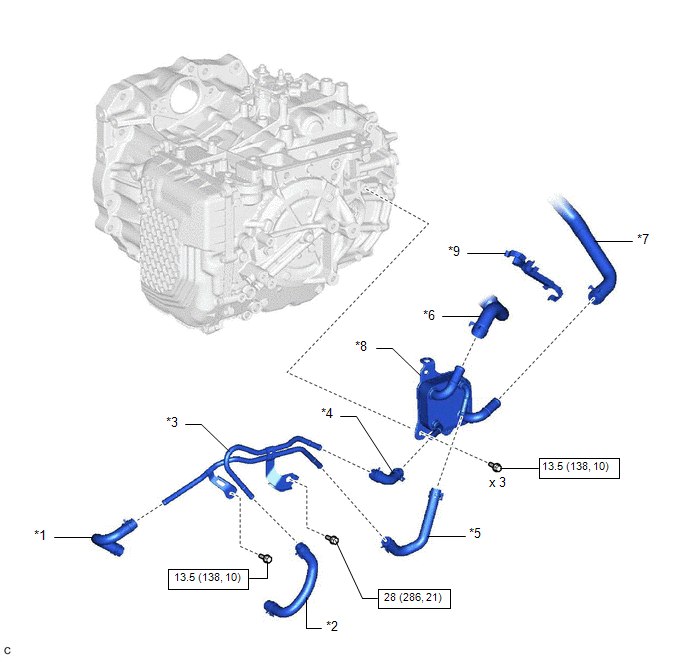

ILLUSTRATION

*1

OUTLET NO. 1 OIL COOLER HOSE

*2

INLET NO. 1 OIL COOLER HOSE

*3

NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE

*4

INLET NO. 2 OIL COOLER HOSE

*5

OUTLET NO. 2 OIL COOLER HOSE

*6

NO. 1 WATER BY-PASS HOSE

*7

WATER BY-PASS HOSE ASSEMBLY

*8

TRANSMISSION OIL COOLER

*9

TRANSMISSION BREATHER CLAMP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
