COMPONENTS

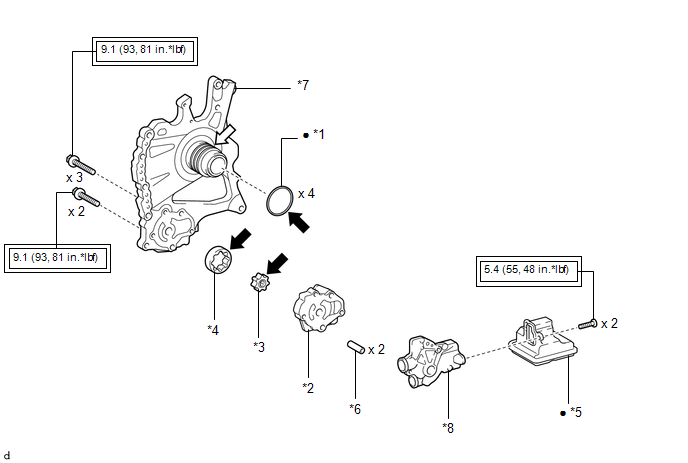

ILLUSTRATION

*1

CLUTCH DRUM OIL SEAL RING

*2

FRONT OIL PUMP BODY

*3

FRONT OIL PUMP DRIVE GEAR

*4

FRONT OIL PUMP DRIVEN GEAR

*5

OIL STRAINER ASSEMBLY

*6

RING PIN

*7

STATOR SHAFT ASSEMBLY

*8

FRONT OIL PUMP COVER SUB-ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Toyota Genuine ATF WS

MP grease
    Oil Pump

    Disassembly
