Toyota Avalon Service & Repair Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Temporarily install the park/neutral position switch assembly to the automatic transaxle case sub-assembly with the 2 bolts.

NOTICE:

Before installing the park/neutral position switch assembly, remove any dirt or rust on the manual valve lever shaft sub-assembly. Be sure to install the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be installed correctly.

(b) Temporarily install the transmission control shaft lever to the park/neutral position switch assembly.

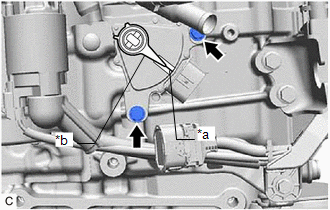

(c) Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

*a

P

*b

N

(d) Remove the transmission control shaft lever from the park/neutral position switch assembly.

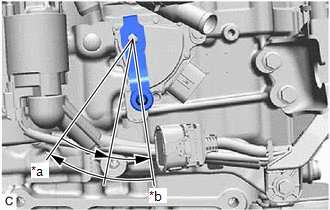

(e) Align the protrusion with the neutral basic line.

*a

Neutral Basic Line

*b

Protrusion

(f) Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(g) Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the washer and nut.

Torque:

12.7 N·m {130 kgf·cm, 9 ft·lbf}

(h) Connect the park/neutral position switch assembly connector.

2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

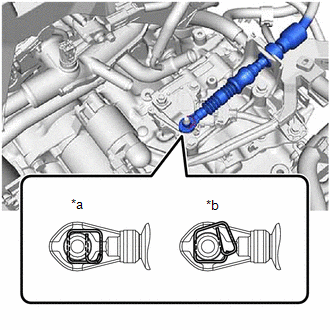

(a) Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

NOTICE:

Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

*a

Correct

*b

Incorrect

3. INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click here

4. INSTALL ECM

Click here

5. INSTALL BATTERY

Click here

6. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION

Click here

7. INSPECT SHIFT LEVER POSITION

Click here

8. ADJUST SHIFT LEVER POSITION

Click here

    Inspection

    On-vehicle Inspection
