Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Disassembly

DISASSEMBLY

PROCEDURE

1. REMOVE SHIFT POSITION INDICATOR

(a) Disengage the 2 clamps to disconnect the wire harness.

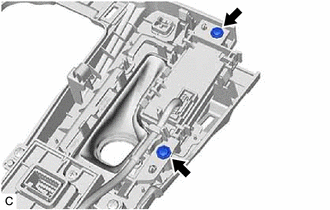

(b) Remove the 2 screws.

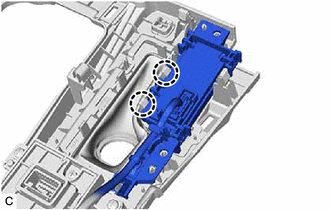

(c) Disengage the 2 claws and remove the shift position indicator from the rear upper console panel sub-assembly.

2. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

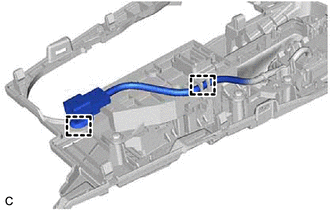

(a) Disconnect the indicator light wire sub-assembly connector.

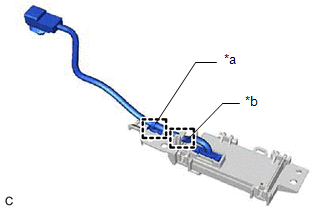

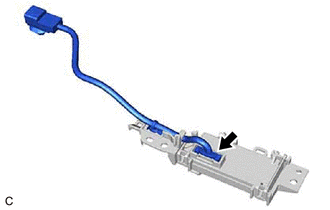

(b) Disengage the clamp and guide to remove the indicator light wire sub-assembly from the shift position indicator.

*a

Guide

*b

Clamp

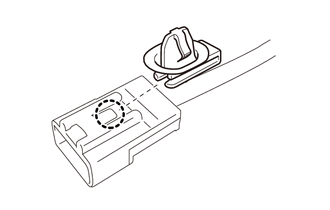

(c) Disengage the claw to remove the clamp from the indicator light wire sub-assembly.

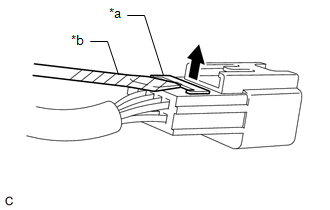

(d) Using a screwdriver with its tip wrapped with protective tape, release the secondary lock.

*a

Secondary Lock

*b

Protective Tape

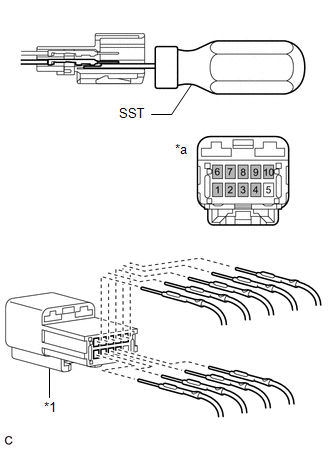

(e) Using SST, release the locking lug of each terminal and remove the terminal from the connector housing.

*1

Connector Housing

*a

Rear view of wire harness connector

Shift Position Indicator Terminal

SST: 09991-00510

NOTICE:

Before removing the terminals, make a note of the color of each wire and position where its terminal is installed.

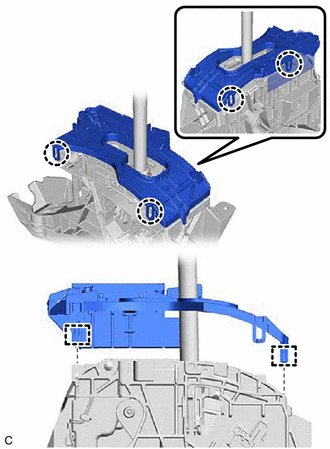

3. REMOVE LOWER POSITION INDICATOR HOUSING

(a) Disengage the 4 claws and 2 guides to remove the lower position indicator housing from the shift lock control unit assembly.

NOTICE:

Do not damage the lower position indicator housing.

    Components

    Inspection
