COMPONENTS

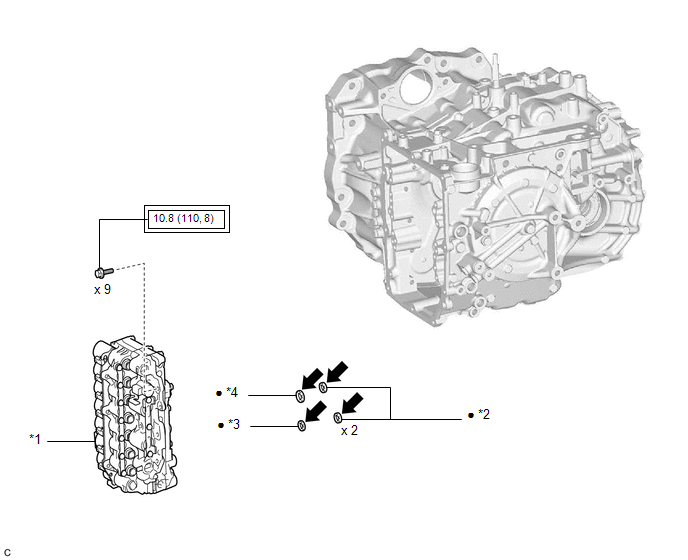

ILLUSTRATION

*1

TRANSMISSION VALVE BODY ASSEMBLY

*2

TRANSAXLE CASE GASKET

*3

NO. 1 FRONT OIL PUMP COVER GASKET

*4

NO. 2 FRONT OIL PUMP COVER GASKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Toyota Genuine ATF WS

-

-

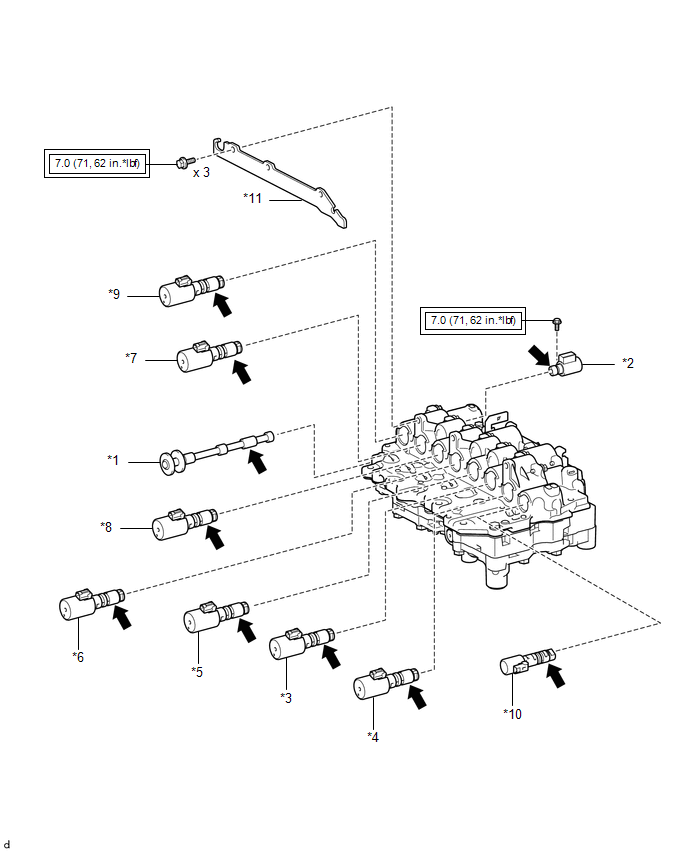

ILLUSTRATION

*1

MANUAL VALVE

*2

SOLENOID (SL) VALVE

*3

SOLENOID (SL1) VALVE

*4

SOLENOID (SL2) VALVE

*5

SOLENOID (SL3) VALVE

*6

SOLENOID (SL4) VALVE

*7

SOLENOID (SL5) VALVE

*8

SOLENOID (SL6) VALVE

*9

SOLENOID (SLU) VALVE

*10

SOLENOID (SLT) VALVE

*11

SOLENOID LOCK PLATE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Toyota Genuine ATF WS
    Valve Body Assembly
