INSTALLATION

PROCEDURE

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1)

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

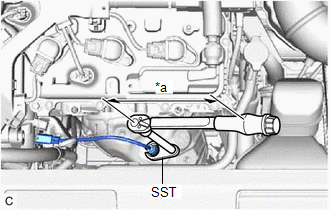

(a) Using SST, install the air fuel ratio sensor to the exhaust manifold assembly RH (TWC: Front Catalyst).

SST: 09224-00012

Torque:

Specified tightening torque :

44 N·m {449 kgf·cm, 32 ft·lbf}

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

    37.7 N*m (384 kgf*cm, 28 ft.*lbf)

*a

Torque Wrench Fulcrum Length

(b) Engage the 2 wire harness clamps.

(c) Connect the air fuel ratio sensor connector.

2. INSTALL AIR FUEL RATIO SENSOR (for Bank 2)

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

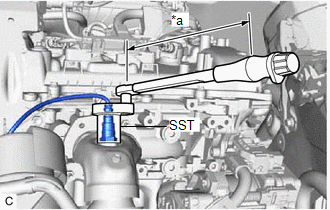

(a) Using SST, install the air fuel ratio sensor to the exhaust manifold assembly LH (TWC: Front Catalyst).

SST: 09224-00012

Torque:

Specified tightening torque :

44 N·m {449 kgf·cm, 32 ft·lbf}

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

    37.7 N*m (384 kgf*cm, 28 ft.*lbf)

*a

Torque Wrench Fulcrum Length

(b) Connect the air fuel ratio sensor connector.

(c) Engage the wire harness clamp.

3. INSTALL V-BANK COVER SUB-ASSEMBLY

Click here

4. INSPECT FOR EXHAUST GAS LEAK

Click here

5. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

Click here
