COMPONENTS

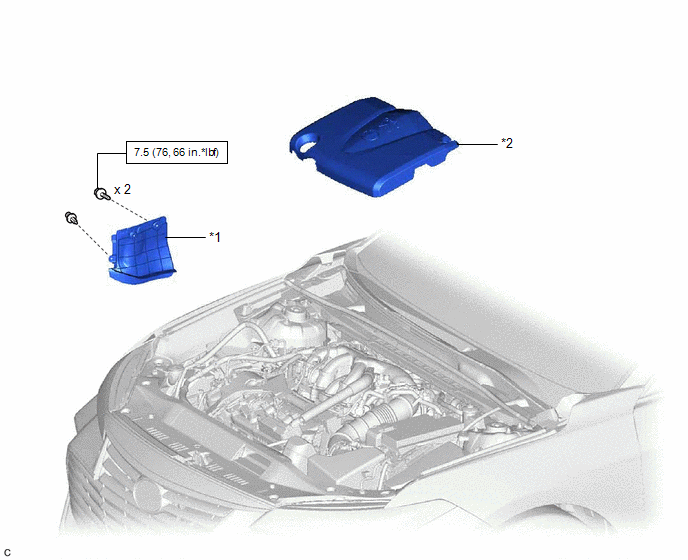

ILLUSTRATION

*1

FRONT FENDER APRON SEAL RH

*2

V-BANK COVER SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

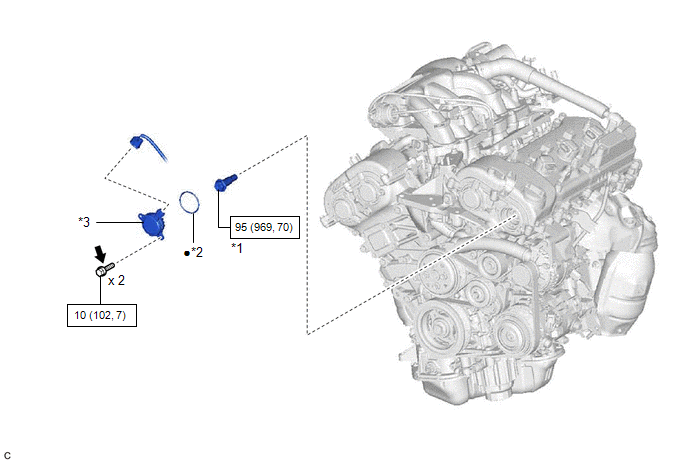

ILLUSTRATION

*1

CAMSHAFT TIMING GEAR BOLT

*2

O-RING

*3

CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Adhesive 1324

★

Precoated part
    Camshaft Oil Control Valve(for Exhaust Side Of Bank 2)

    Inspection
